Configuring the Director
150
Director Element Manager User Guide
To configure a feature key, use the following steps:
1. Click Configure > Features on the Element Manager menu bar. The
Configure Feature Key dialog box displays, as shown in
.

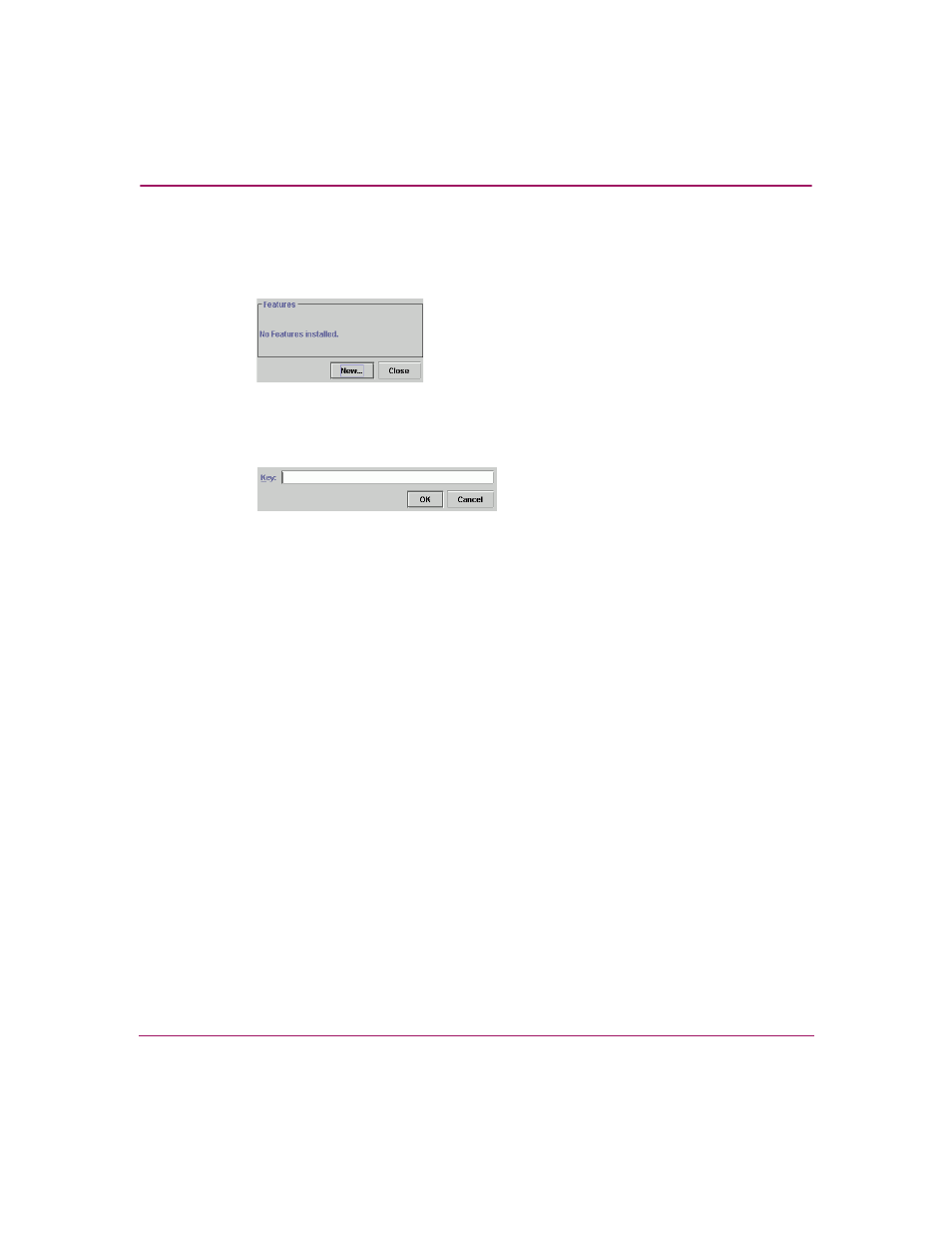

Figure 44: Configure Feature Key dialog box
2. Click New to add a new feature key. The New Feature Key dialog box
.
Figure 45: New Feature Key dialog box
3. Enter the director’s feature key in the Key field and click OK.
■
Feature keys are only valid for a director with a specific serial number.
They cannot be interchanged between directors. If an error stating
Invalid serial number
displays, verify that you have entered the
feature key that was assigned to the director. To verify, check the serial
number of the director through the Switch Properties dialog box and
compare it to the serial number listed in the documentation provided with
your feature key.
■
The feature key is a string of alphanumeric characters with dashes. The
key is case-sensitive, so enter the key exactly as printed in the
documentation that you received for the feature. If an error stating
Invalid feature key
displays, verify that you have entered the
feature key correctly.
