Overview
42 Director Element Manager User Guide

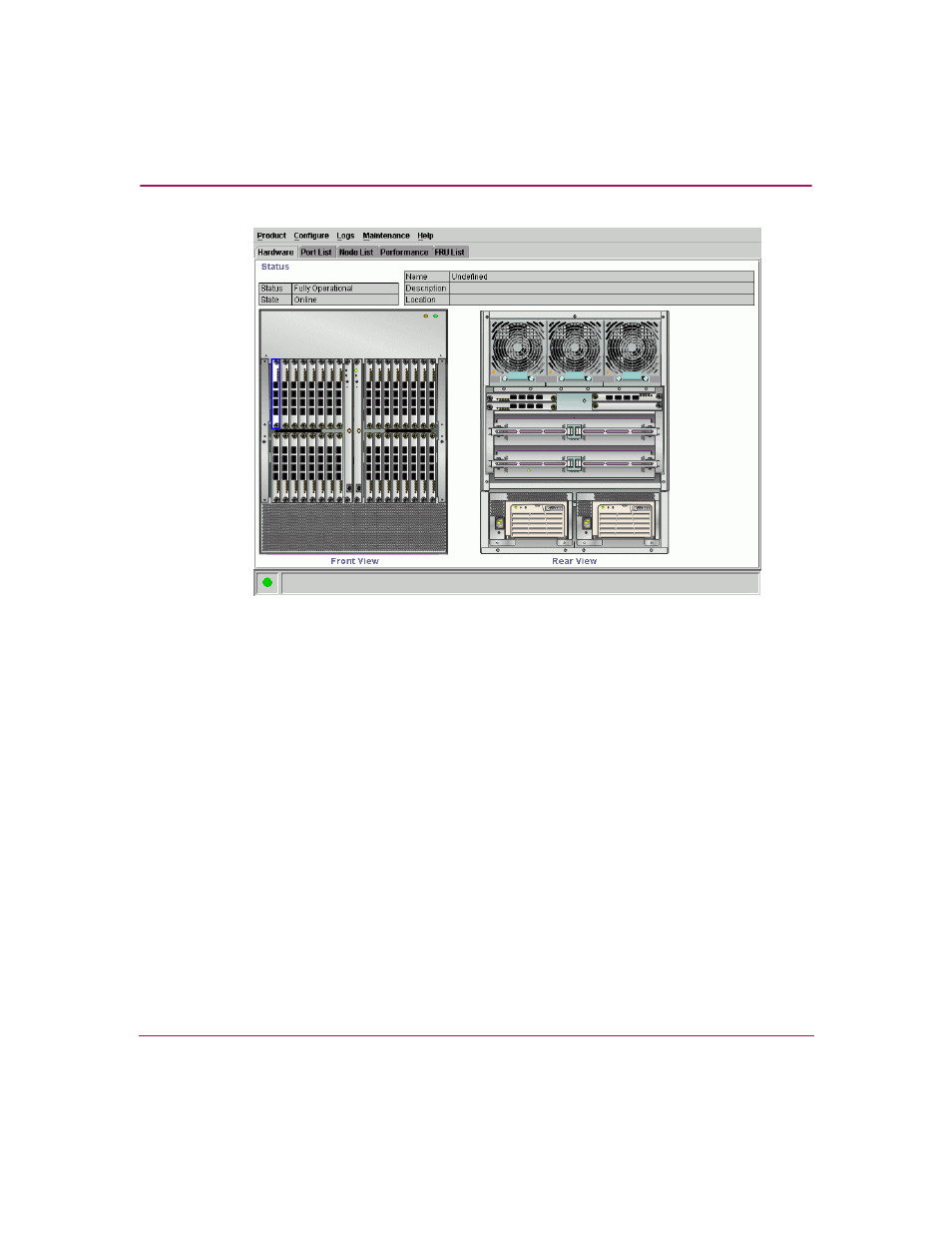

Figure 6: Director 2/140 Hardware View
In the Hardware View, colored indicators reflect the status of actual LEDs on the
director FRUs. The status bar displays a symbol to represent the most degraded
status currently reported by any of the director FRUs. For example, for a port
failure, indicated by a blinking red and yellow diamond on a port, a yellow
triangle displays on the status bar to indicate a degraded condition. However, if a
blinking red and yellow diamond displays over both SBAR cards, the status bar
displays a red and yellow diamond, which indicates a failure requiring immediate
attention. For an explanation of the different status symbols and the reasons they
display in the Hardware View or Port List View, see to “
Monitoring Hardware
Operation ” on page 65.
Double-click the power supply, CTP card, cooling fan module, or SBAR card to
display an FRU Properties dialog box containing detailed information on the
hardware component. Double-click the director, away from an FRU, to display the
Director Properties dialog box.
For details on navigating and monitoring via the Hardware View, see “ Monitoring
and managing the Director ” on page 61.
