Configuring the Director

158

Director Element Manager User Guide

8. Enter the interval in minutes in which throughput is measured and threshold

notifications can occur. The valid range is 5 minutes to 70,560 minutes.

9. Click Next. A new screen displays for choosing ports for the alerts, as shown

in

Figure 52

.

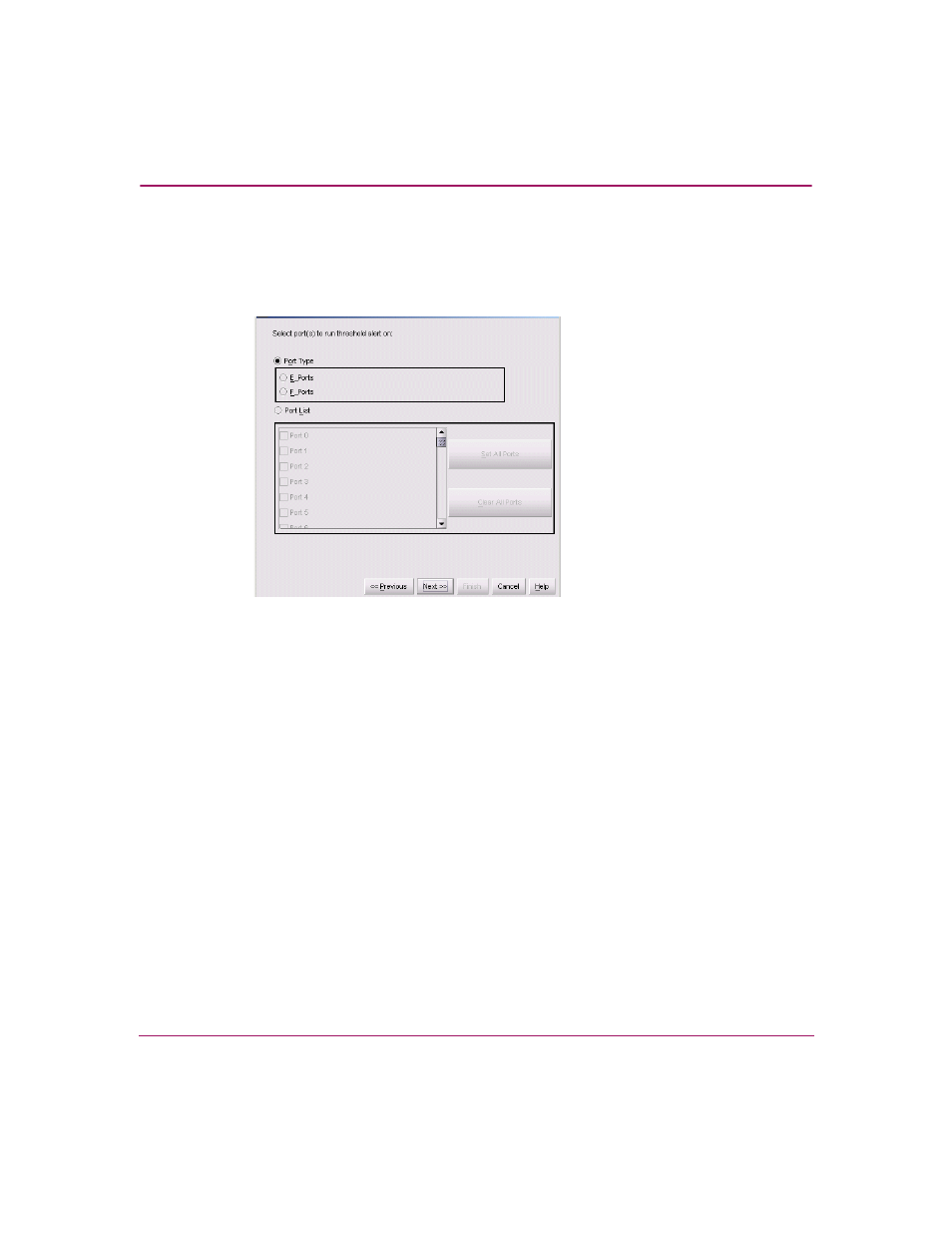

Figure 52: New Threshold Alerts dialog box - third screen

10. Click either Port Type or Port List.

For Port Type, choosing either E_Ports or F_Ports will cause this alert
to generate for all ports configured as E_Ports or F_Ports, respectively.

For Port List, you can choose individual ports when you click the check
box by each port number or set all ports. Choosing Set All Ports places a
check mark by each port number. Choosing Clear All Ports will clear the
check marks by each port number.
