Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual 83
Properties Dialog Boxes for Events Teledyne LeCroy
5.21.9 AHCI Register Properties Dialog
The AHCI Register Properties dialog allows you to enter the MBAR value, choose the
Register and Address Type from the drop‐down list and enter the offset.

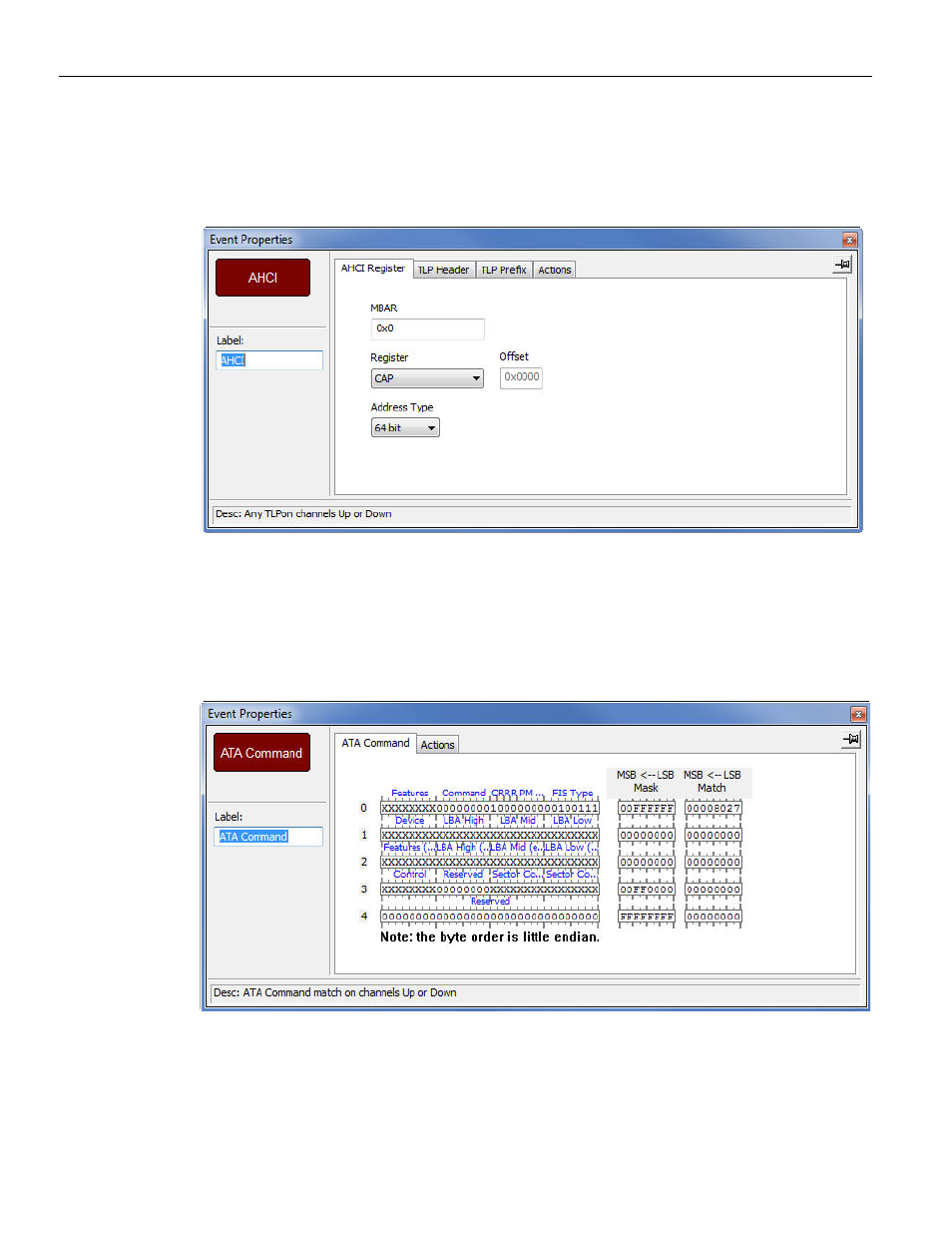

Figure 5.36: AHCI Register Properties Dialog
5.21.10 ATA Command Properties Dialog
The ATA Command Properties dialog allows you to change the pattern and customize it by
defining each specific bit as shown in the figure below.
Figure 5.37: ATA Command Properties Dialog
