checked. In this case it is going to save all packets in the range, EXCLUDING the currently
hidden packets.
4.14 Exporting a CATC Trace File
By default, PETracer saves CATC Trace files in the .pex format. However, you can export a
CATC Trace to a file in any of the following other formats:
 Text
 Comma Separated Value (CSV)
 Generator file format
Exporting to Generator file format is a simple way to create a script file from your
CATC Trace. Only PCI Express packets will be exported to a script. All transaction levels,
including supported SSD decodes, can be exported to Text or CSV Text.
To export a CATC Trace file, select File > Export.

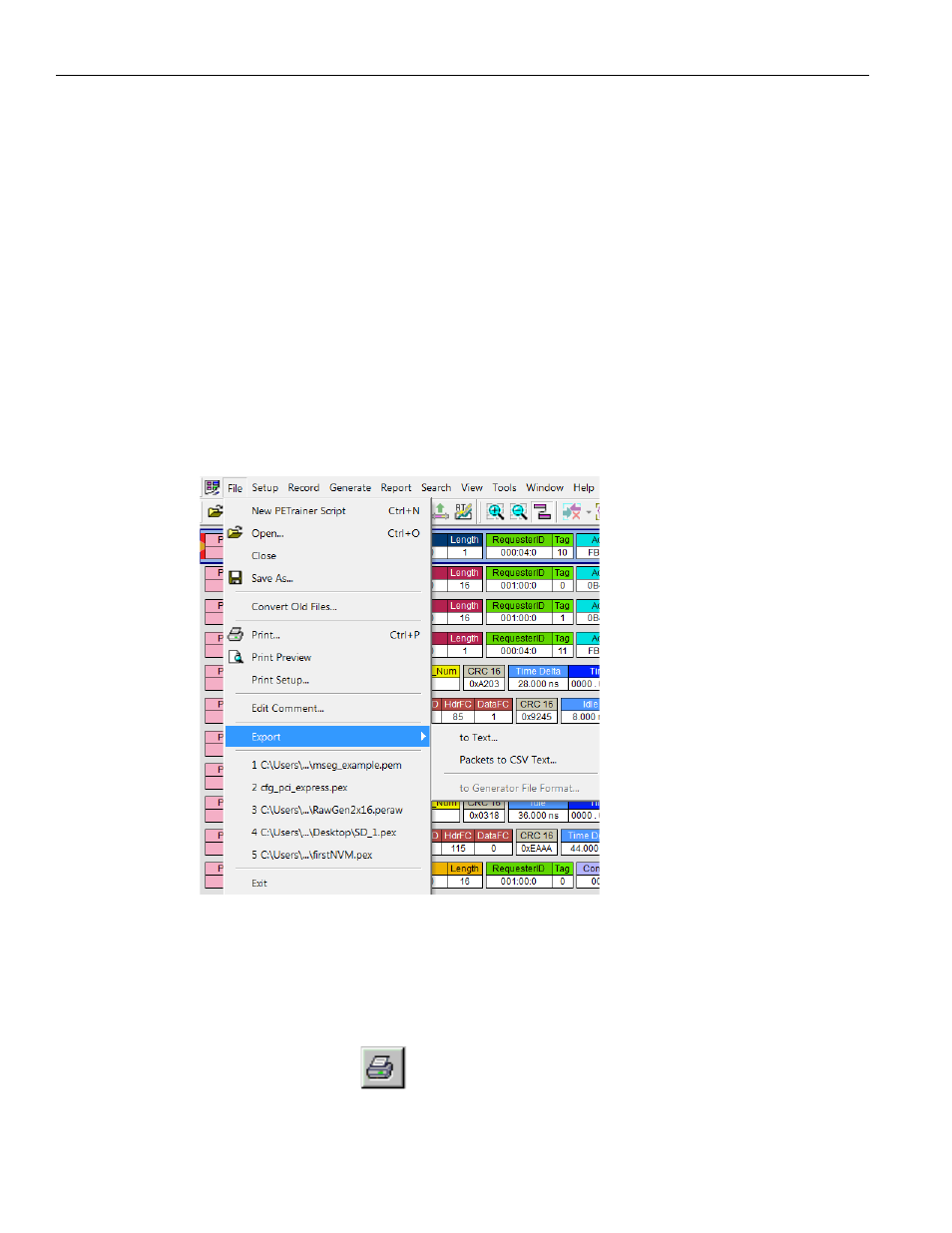

Figure 4.12: Exporting a File
4.15 Printing Data Files
To print all or part of the open CATC Trace:
1. Select File > Print from the menu or
click the Printer button on the toolbar.
The Print Packets dialog opens ((see Figure 4.13 on page 43 )).
