Teledyne LeCroy Global State and Sequence States
72 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual

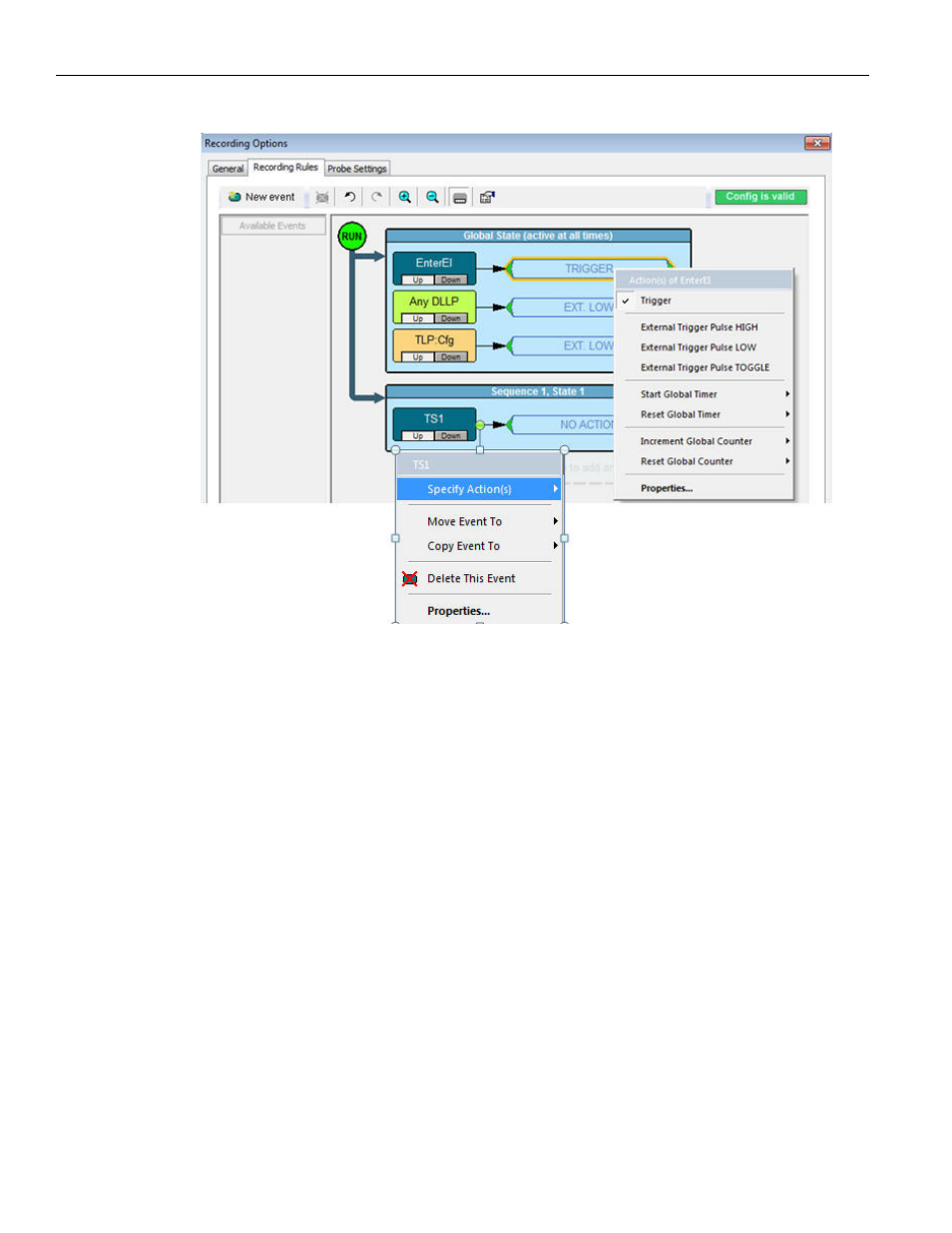

Figure 5.24: Global State Menu
5.18.1 Global State
The Global State is active all the time. The Summit T28 Analyzer tracks all the Events and
Actions defined in the Global State throughout the recording. In the Global State the Link
State, Ordered Set (except TS1 and TS2), Errors, Counter and the Timer use Basic Resources
while TLP, DLLP, TS1 and TS2 use Packet Match Resources. The Global State has two Timers
and two Counters (see
Figure 5.25 on page 73 ).
