Specifying General Display Options Teledyne LeCroy
3. Under the Group and Colors column, click the plus symbol (+) next to the group you
want to reformat. The group expands to show the individual fields within the group.
Each field has a color, as shown below:
4. Click the colored cell that you want to change. A color palette appears.
5. Click a color in the palette, then click Apply or OK.
Note: The colors of the following Frame types cannot be changed:
 Invalid Data (frame error) field ( red )
 Softbit Errors (yellow)
You can also change color by left‐clicking a field in the CATC Trace and selecting Color
from the pop‐up menu
.

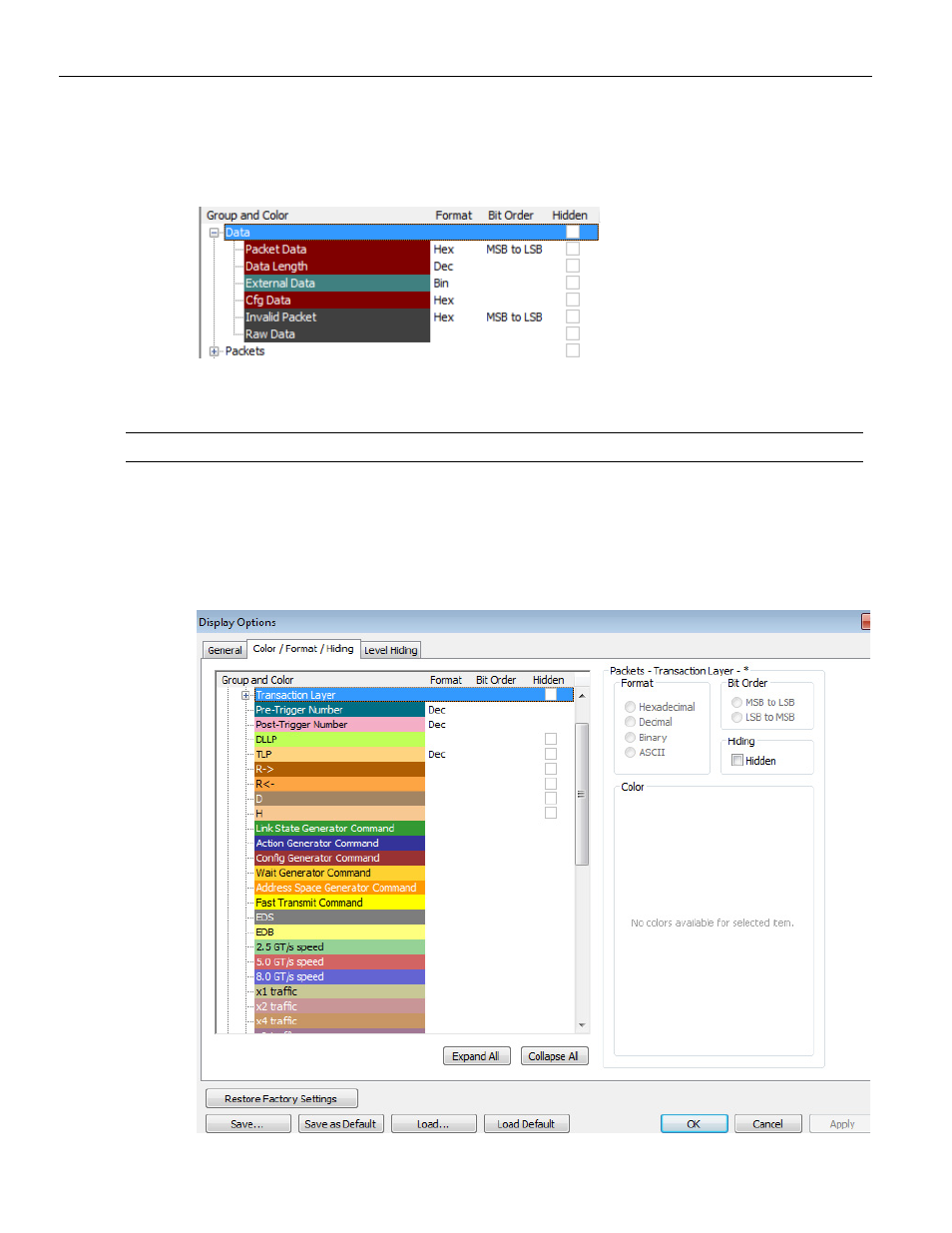

Figure 8.4: Display Options Dialog Color/Format/Hiding Tab
