Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual 75
Navigating Recording Rules Teledyne LeCroy

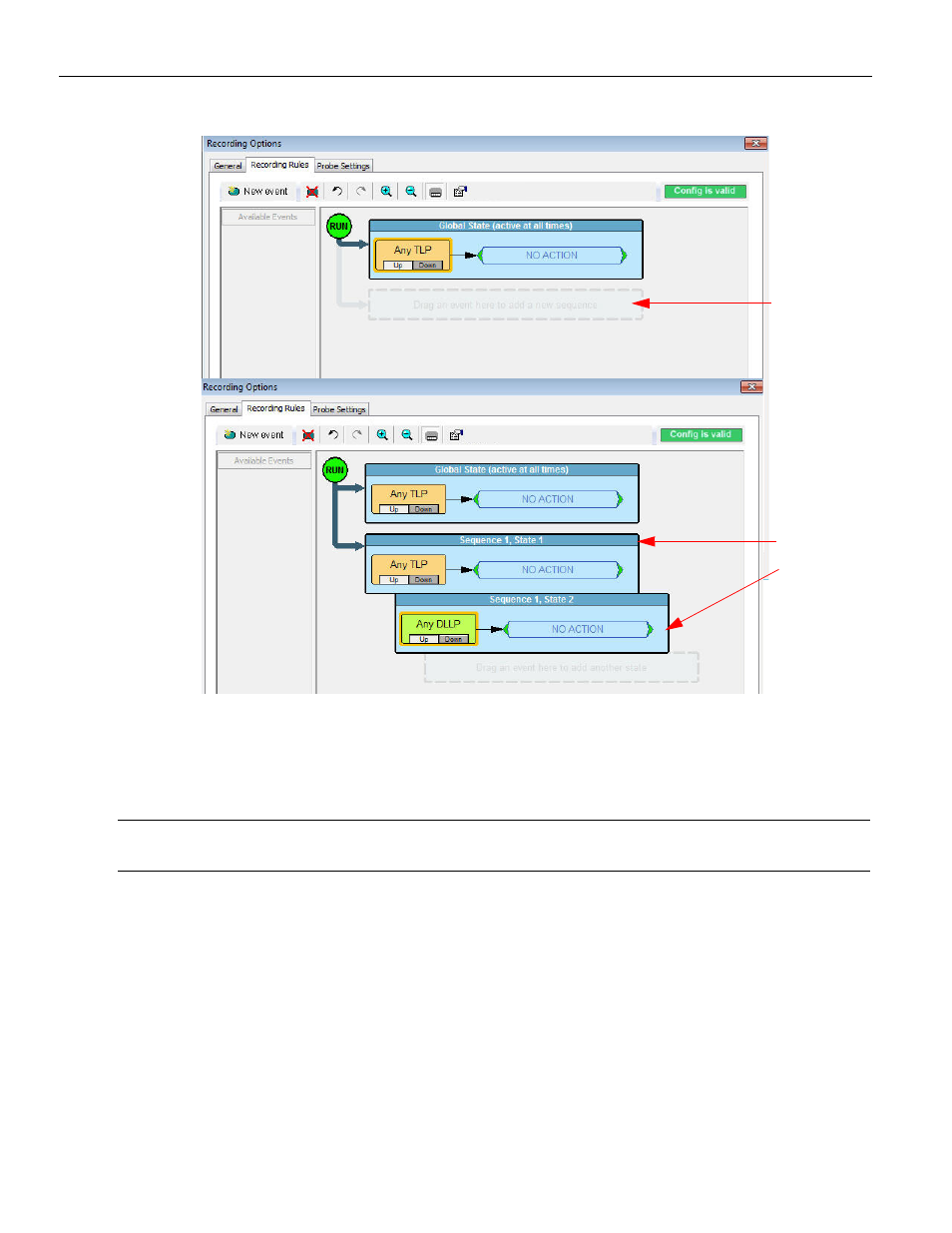

Figure 5.27: Sequence State Events
In the Sequence State the Link State, Ordered Set, Errors, Counter and the Timer use Basic
Resources while DLLP and TLP use Packet Match Resources. There are four Timers and
four Counters in the Sequence State.
Note: In each Sequence State up to eight Basic Resources and eight Packet Match Resources can be
defined.
5.19 Navigating Recording Rules
The Recording Rules window has three main areas, the Toolbar, Available Events panel
and the Main Display panel (see
Figure 5.15 on page 62 ).
5.19.1 Toolbar
The toolbar contains buttons such as the New Events button for issuing commands,
Delete Current Event, Undo, Redo, Zoom in and out, Show/Hide Channels and Properties.
Events
can be
added to
this
Sequence
State
Sequence
States
