Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual

81

Properties Dialog Boxes for Events

 Teledyne LeCroy

5.21.6 DLLP Packet Properties Dialog

The DLLP Packet Properties dialog allows you to specify any DLLP field as shown below.

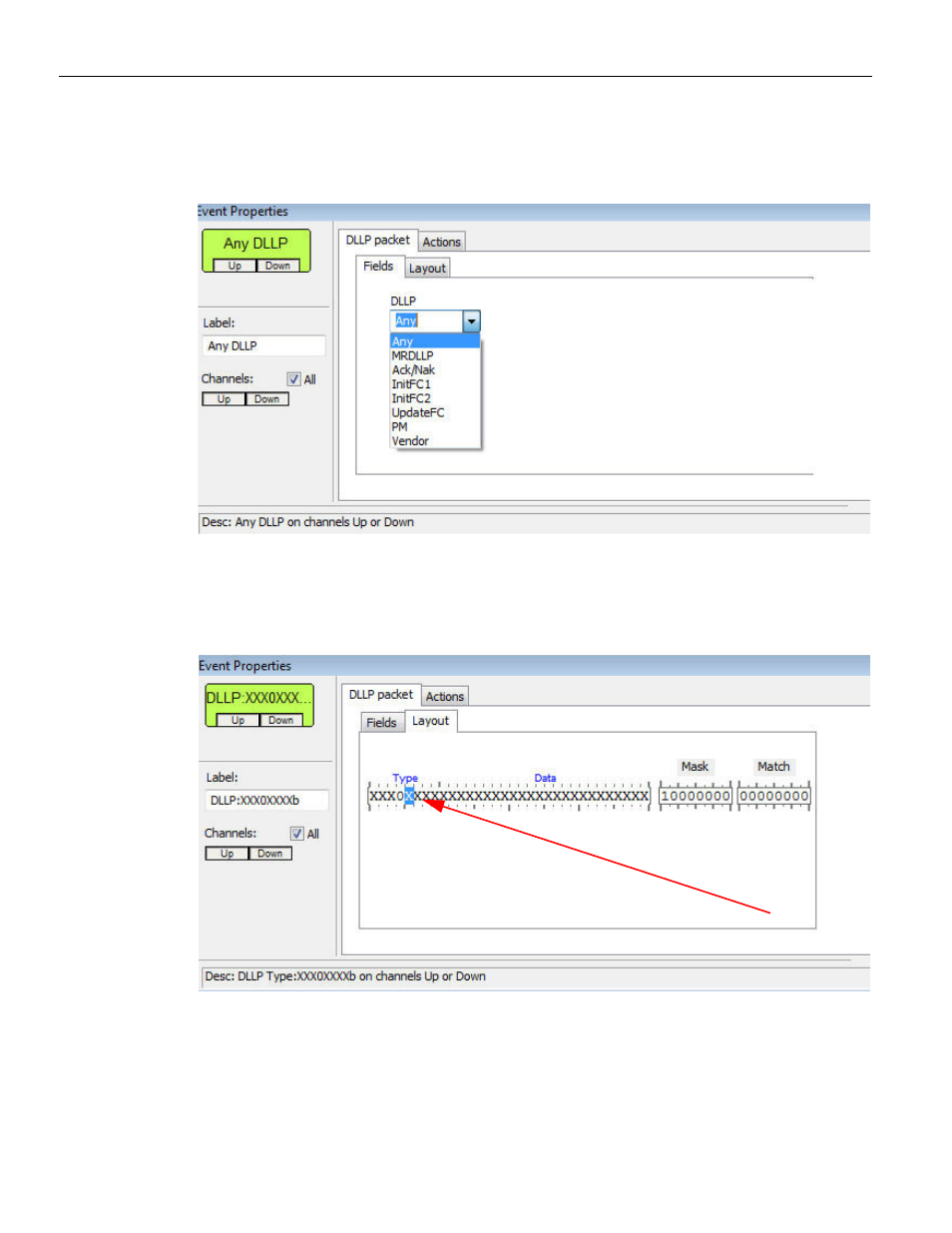

Figure 5.32: DLLP Packet Properties Dialog

The Layout tab of the DLLP Packet Properties dialog allows you to change the pattern and
customize it by defining each specific bit as shown in the figure below.

Figure 5.33: DLLP Packet Properties Dialog
