Timing Measurements Bar Teledyne LeCroy

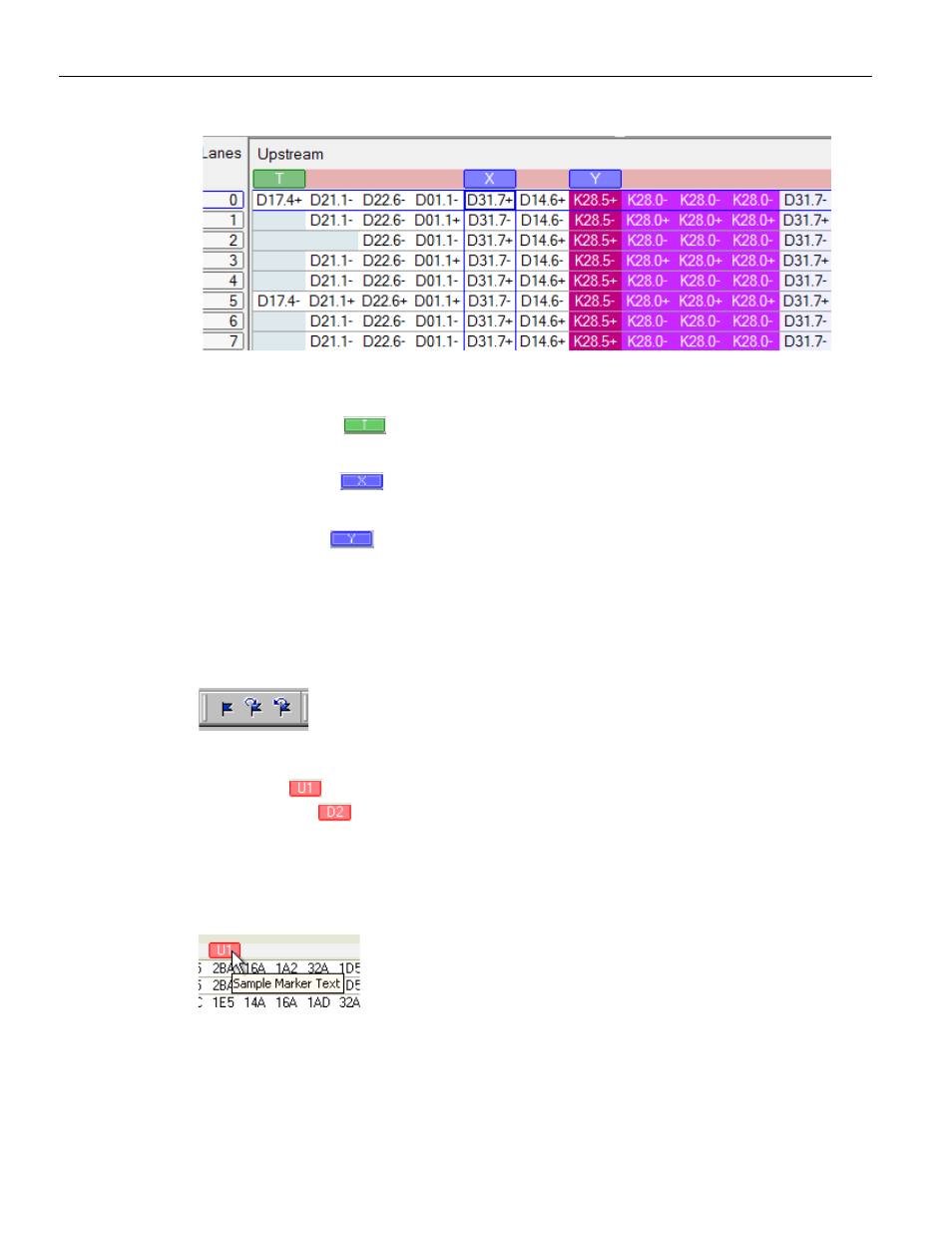

9.7.1 Markers Bar
The Trigger marker is at the point where BitTracer recognized the user‐defined
trigger condition.
To set an X marker , left‐click anywhere in the data display, except for the light gray
bar located above the data and below the directional label.
To set a Y marker .right‐click anywhere in the data display, except for the light gray
bar located above the data and below the directional label.
To define a marker, select the Set Marker command in the Markers menu or use the
Toggle Marker icons in the toolbar. You can also use the Jump to Next or Previous marker
icons in the toolbar.
User‐defined markers are numbered in the order they were placed:
 U1 , U2, and so on in the upstream direction
 D1, D2 , and so on in downstream direction.
You can set a marker with text using the Set Marker with Text… command in the Markers
menu. After setting the marker, when the mouse pointer is on the marker symbol, the
marker text displays as a tooltip.
You can also display the Markers window, which lists all markers and their locations,
including a hyperlink for each (see
Figure 9.1 on page 160 ).
