Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual 195
LTSSM Flow Graph Teledyne LeCroy
10.10 LTSSM Flow Graph
The LTSSM Flow Graph shows link state transitions that the link goes through, as recorded
in the CATC Trace file. To obtain the LTSSM Flow Graph, select Report> LTSSM Flow
Graph.

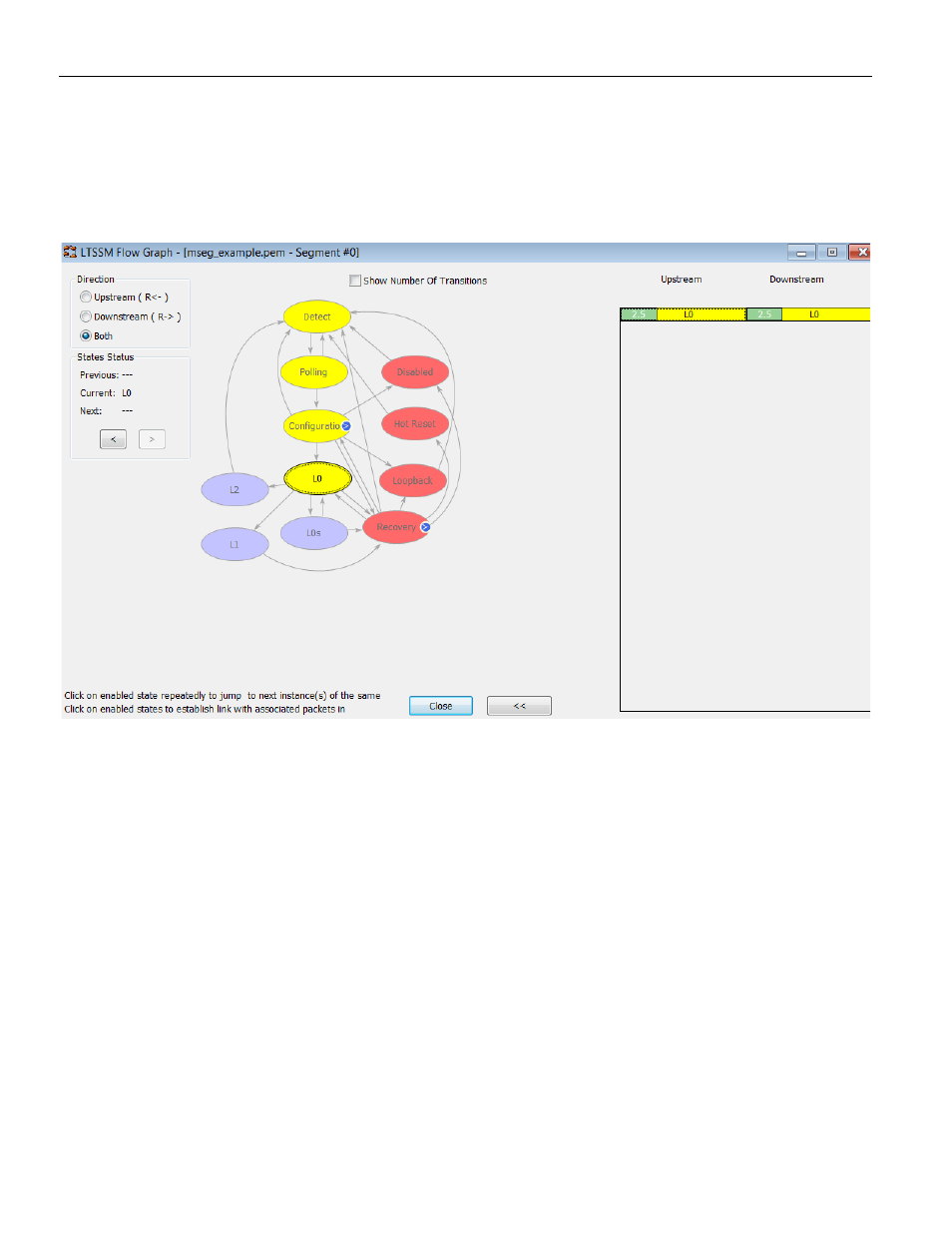

Figure 10.22: LTSSM Flow Graph Dialog
You can display the following directions:
 Upstream
 Downstream
 Both
You can Show Number of Transitions.
Click the blue button (on the Recovery state below) to see the substate.
