Teledyne LeCroy Link Tracker
182 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual
10.5.1 Using the Link Tracker Window
The Link Tracker window can be reformatted in several ways.
10.5.2 Zooming In and Out

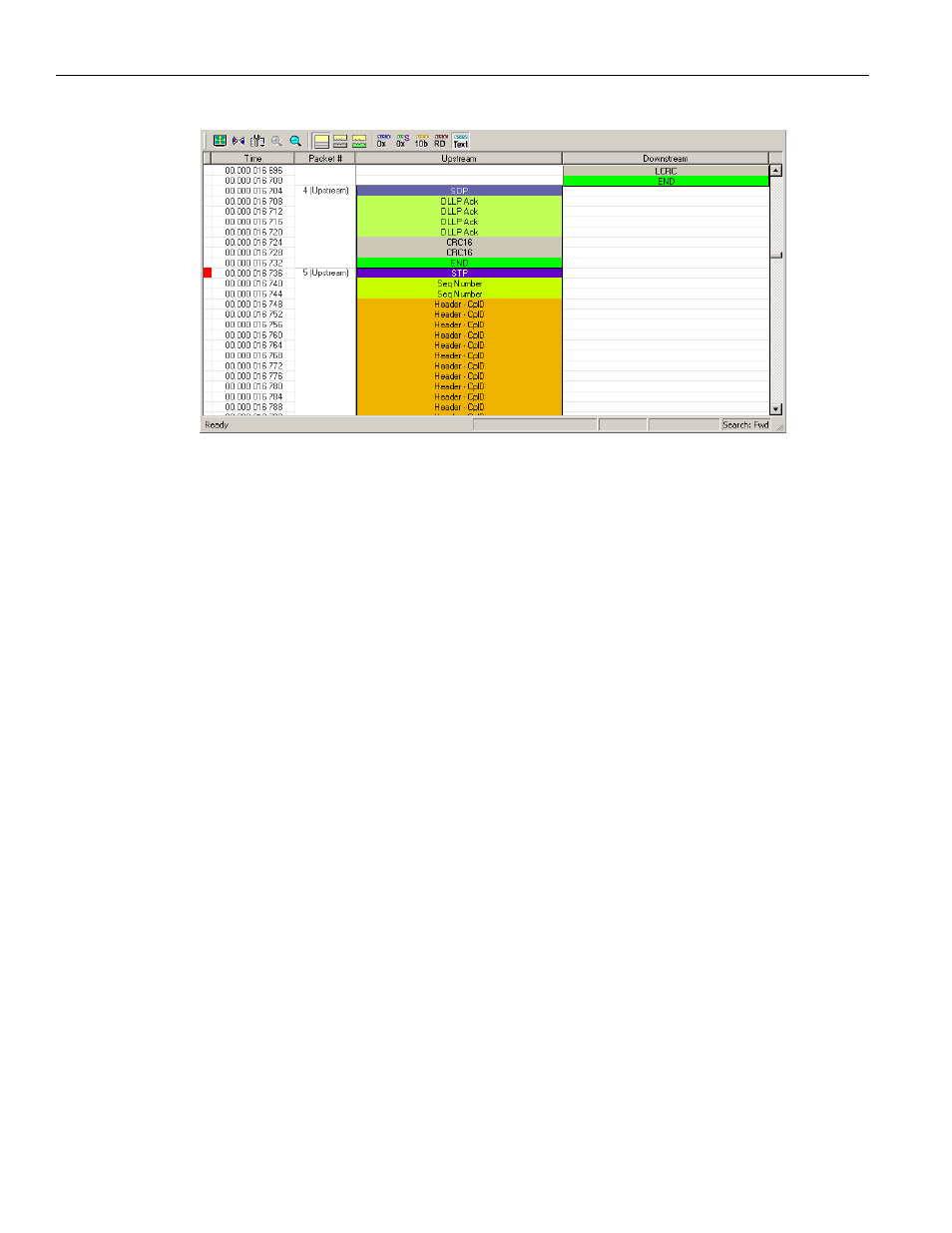

Zooming out can give you a quick, high‐level view of a CATC Trace. A fully zoomed out
CATC Trace only shows columns and colored lines. Using the colors, you can see what
types of traffic run through the CATC Trace (see the following figure).
Further information can be obtained on any point of interest in the CATC Trace by
positioning your mouse pointer over it. Tool tips provide detailed description of events.
When fully zoomed out, the smallest graphical unit is the DWORD, represented by a
single line. Zooming out makes the CATC Trace appear smaller and increases the time
scale in the first column (see the following figure).
