Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual 139
Find Teledyne LeCroy

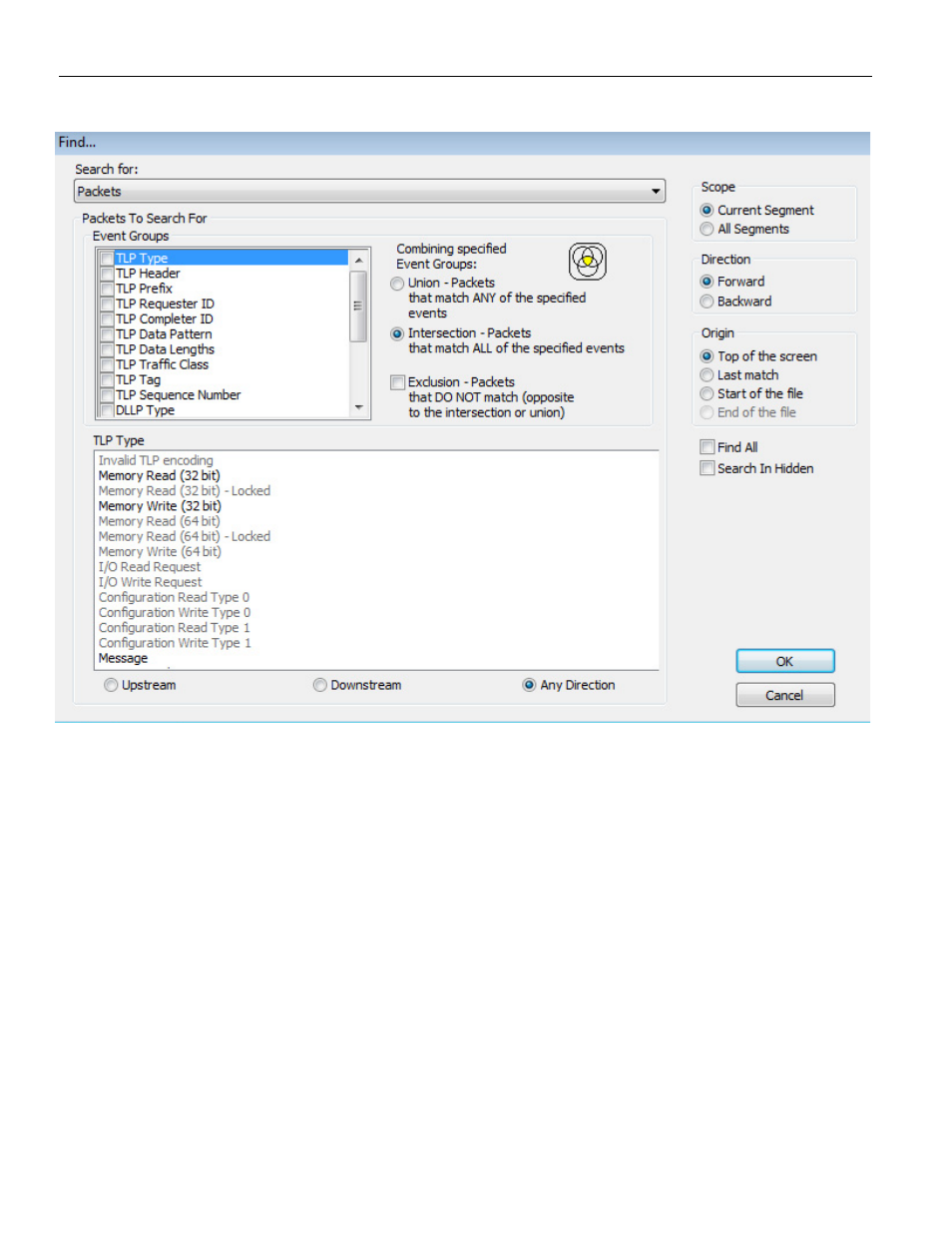

Figure 7.29: Find Dialog
3. From the Search For menu, select a display level such as Packets. To search multiple
levels, finish steps 3 to 9, and then repeat 3 to 9 for each additional display level.
4. From the Event Groups menu, select an Event Group. The menu in the far right of
the dialog is context sensitive and changes to reflect the options for that group.
5. In the menu in the far right, select one or more items.
6. Repeat Step 5 for each Event Group of interest for the selected display level.
7. Under Direction, select Forward or Backward to select a search direction.
8. Under Origin, select a starting point for the search.
9. Under Combining Specified Event Groups, select an option (see the following screen
capture).
