Teledyne LeCroy Link Tracker
184 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual
10.5.4 Docking and Undocking the Window
You can undock the Link Tracker window by double‐clicking the blue title bar along the
left side of the window. Once undocked, the window can be dragged anywhere in the
application. To redock, double‐click again on the title bar.
10.5.5 Setting Markers
Markers can be set on any event within the Link Tracker window.
To set a marker, right‐click an event, then select Set Marker from the pop‐up menu.

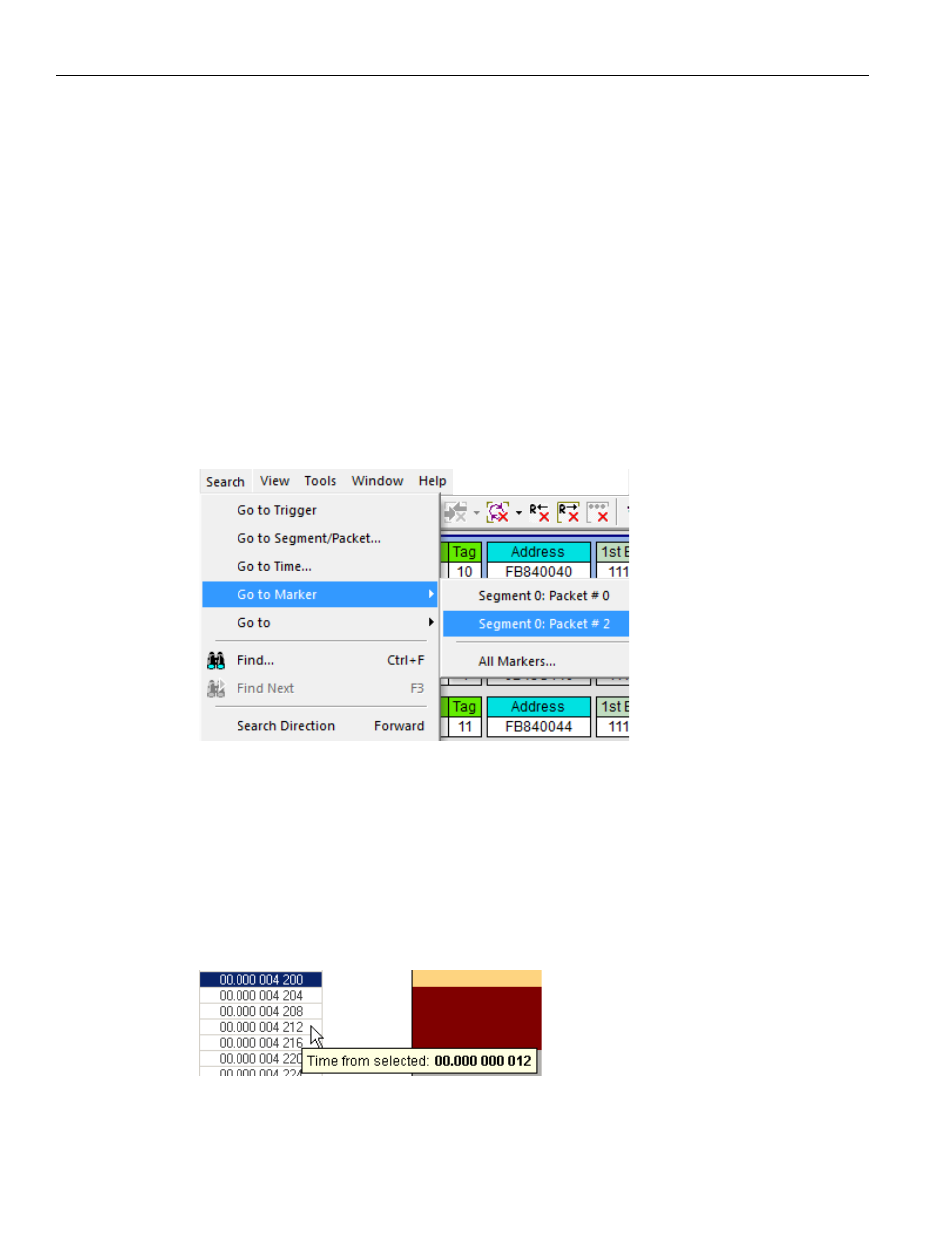

Once marked, you can navigate to events with the Go to Marker command in the Search
menu.
Markers set in the Link Tracker window display the packet number and DWORD number.
In contrast, markers set in the CATC Trace window just show the packet number.
10.5.6 Calculating Time between DWORDs
You can calculate time between DWORDs by clicking an event and then positioning your
mouse pointer over a second event and reading the ensuing Tool tip.
Click the time value for the first event. Scroll down through the CATC Trace to the second
event and position the mouse pointer above its time value. A Tool tip appears showing
the time interval between the first and second events.
