Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual 71
Global State and Sequence States Teledyne LeCroy

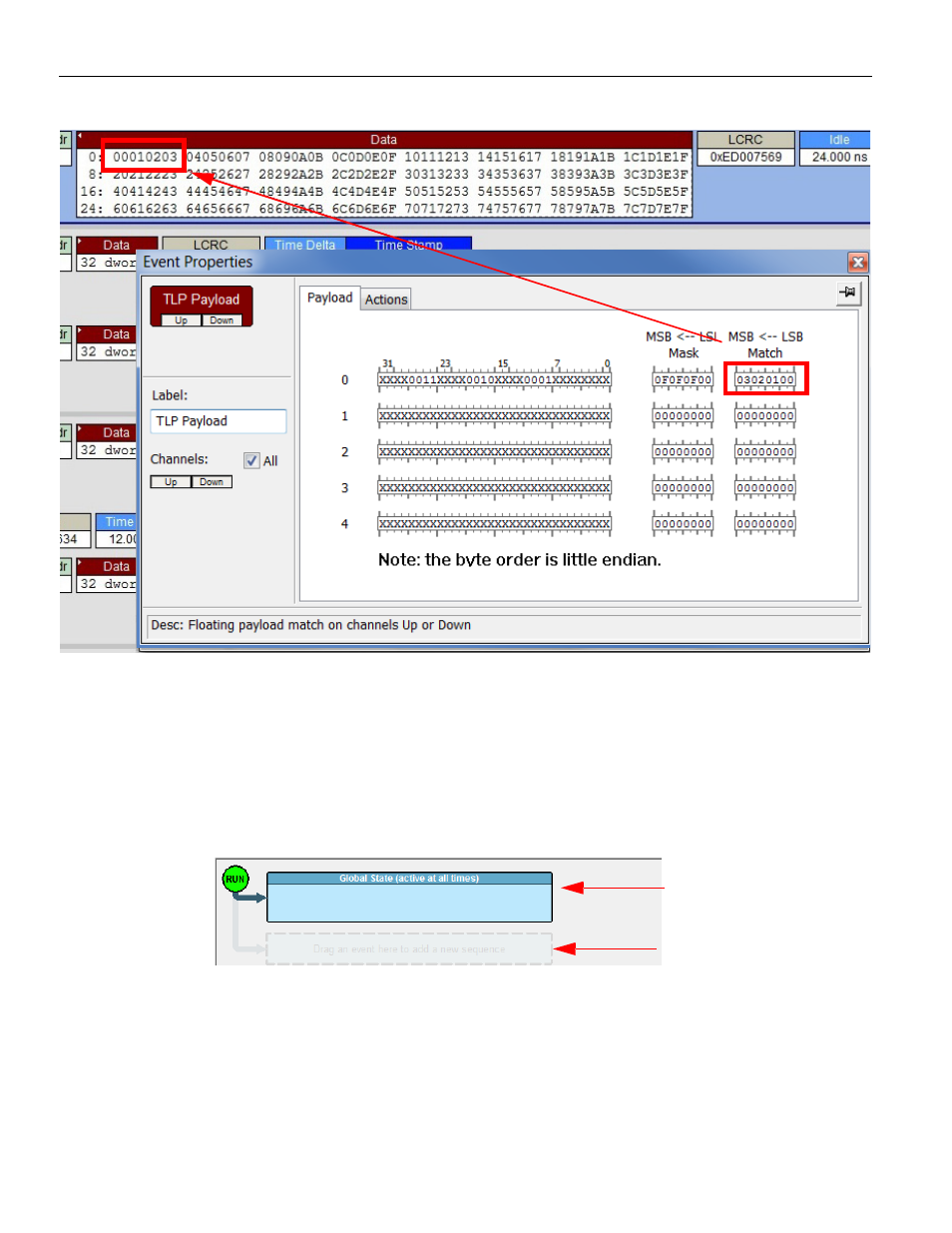

Figure 5.22: Match Pattern Causing a Trigger
ACHI Register and NVMe Register trigger options are based on TLP packet match
resources
5.18 Global State and Sequence States
The Main Display area in the center of the Recording Rules window has two cells that
affect events differently, they are the Global State and Sequence State.
Figure 5.23: Global State Cell and Sequence State Cell
In the Global and Sequence State you can add events by clicking on the New Event button
and after the event is in the State you can right‐click to Specify Actions, Move, Copy or
Delete the event. You can view the Properties dialog to make additional changes to the
Property of the event (see
Figure 5.24 on page 72 ). The description of these actions are
given in Table 5.4 on page 86 .
Global State Cell
Sequence Cell
