Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual 59
Triggering Teledyne LeCroy

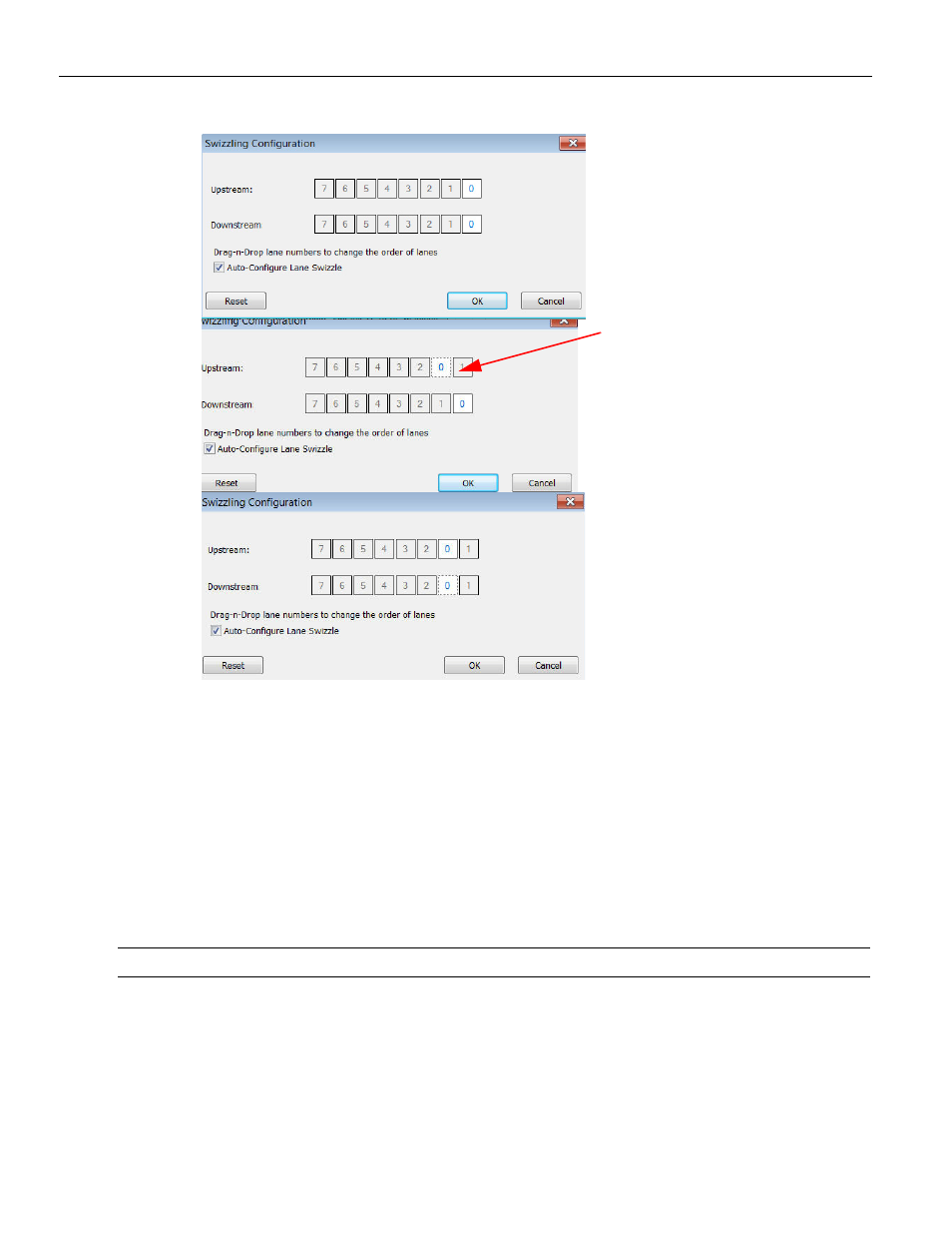

Figure 5.13: Manually Configuring Lane 0 when Auto-Configure Lane Swizzle is Checked
5.15 Triggering
Triggering Options can be set in both Simple and Advanced Modes. The options in both
modes are the same, only the GUI is different where shortcuts for the events are
displayed in the Simple Mode for easy access (see
Figure 5.2 on page 49 ).
In the Advanced Mode triggering is set up via the recording rules which allow greater
flexibility to create advanced sequences you would like the analyzer to look for. These
recording rules are not available in the Simple Mode. The Simple Mode allows you to
simply define triggering by checking the boxes.
Note: Ensure that the correct analyzer is selected for the right options.
Manually moving Lane 0 to the
required position
