Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual 89
Counter Teledyne LeCroy

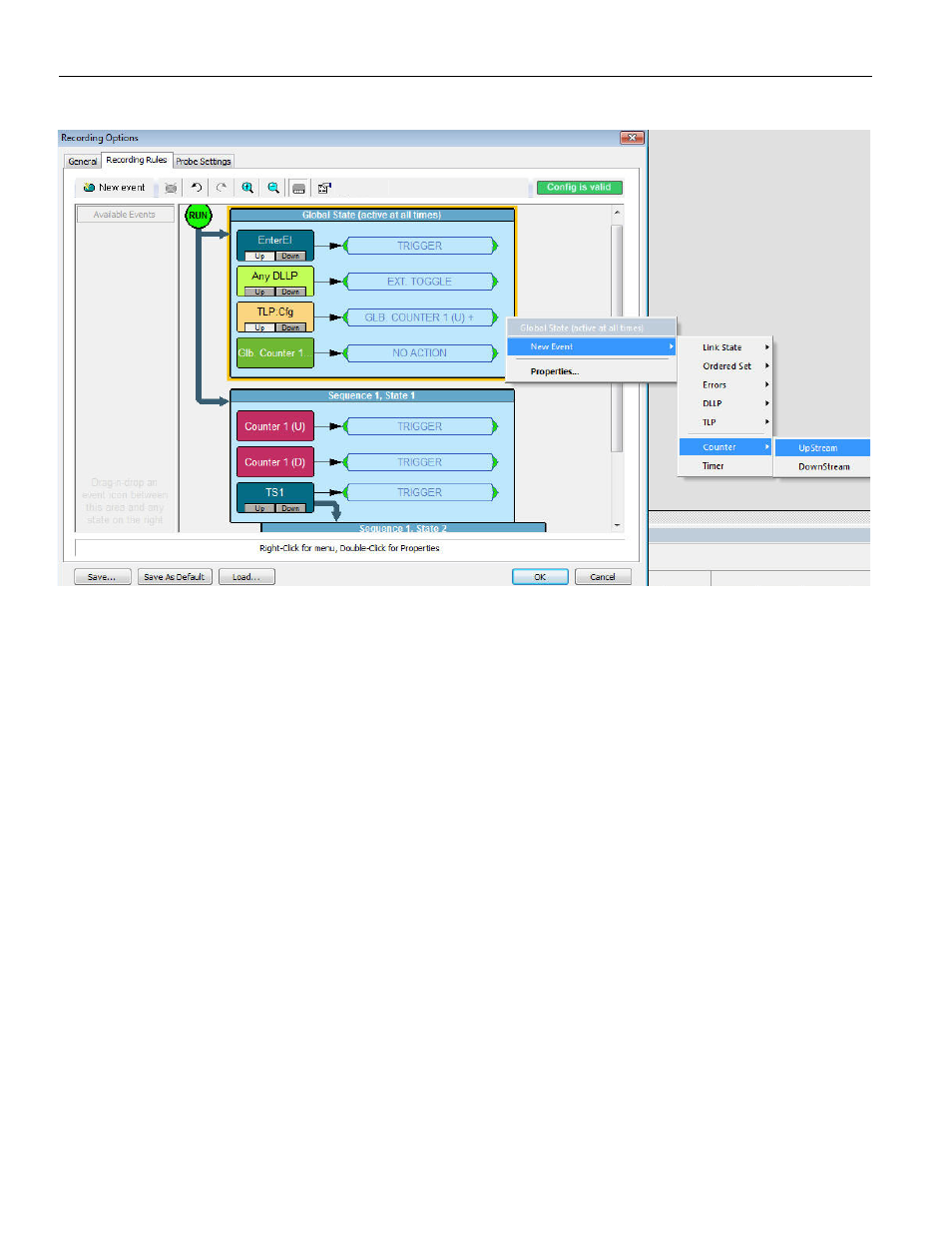

Figure 5.43: Setting Global and Sequence State Counter Events
5.22.2 How to Increment or Reset a Counter
You can Increment or Reset counters in the Global State and in the Sequence State by
performing the following steps:
1. Open the Recording Rules page, select an event, and drag it to the Global State or
Sequence cells. For details on these steps (see “Events with Channels” on page 96 ).
2. Right‐click on an event and select Specify Actions > Increment Global Counter >
Global Counter 1 from the menu (see Figure 5.44 on page 90 ).
