Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual

143

Search for the Next Packet Type

Teledyne LeCroy

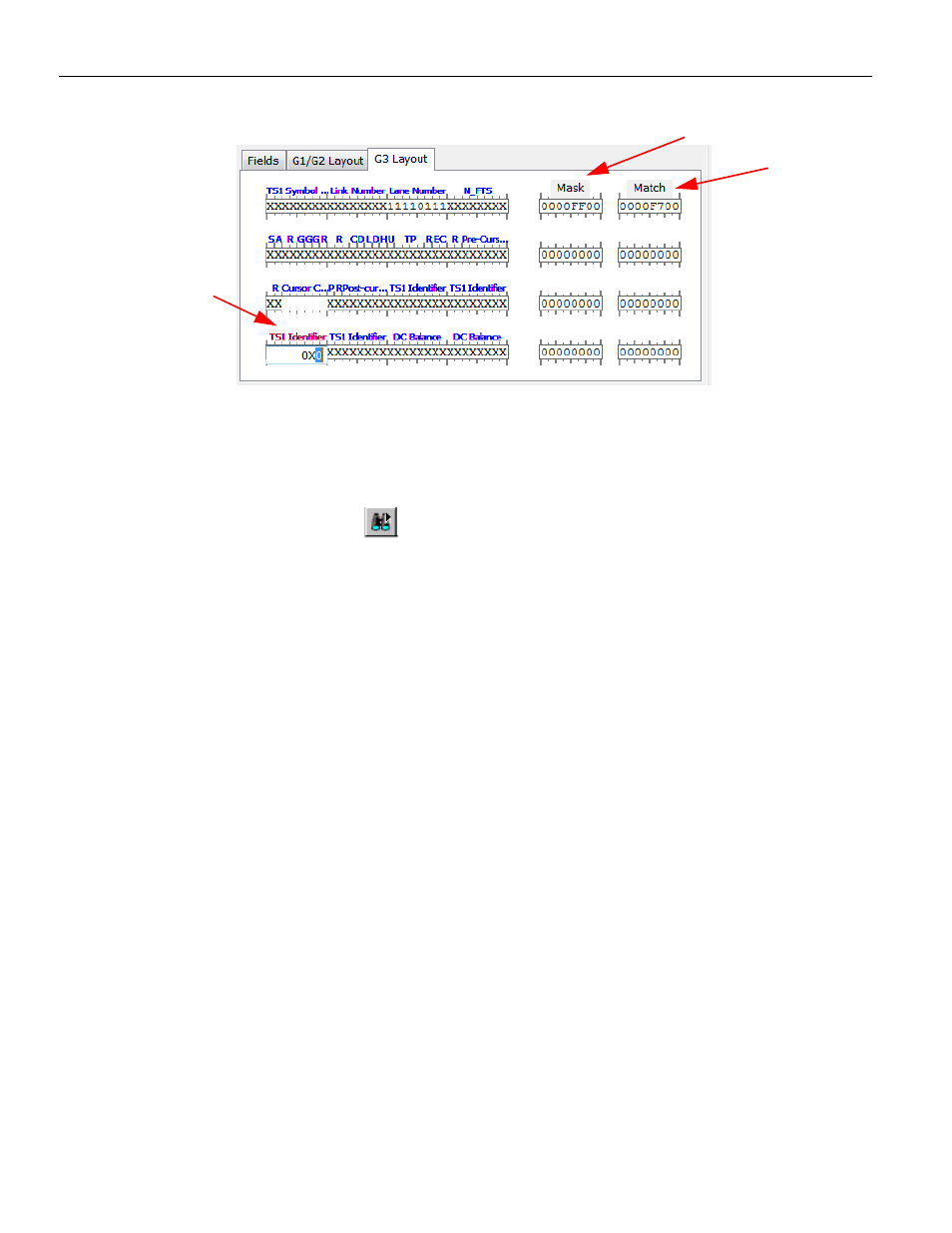

Figure 7.32: TS G3 Layout Tab

Select parameters from the links to use and enter the mask and match values.

7.11 Search

for

the Next Packet Type

Use Find Next or click

to search for the next packet meeting the search criteria.
