Teledyne LeCroy Specifying General Display Options
152 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual

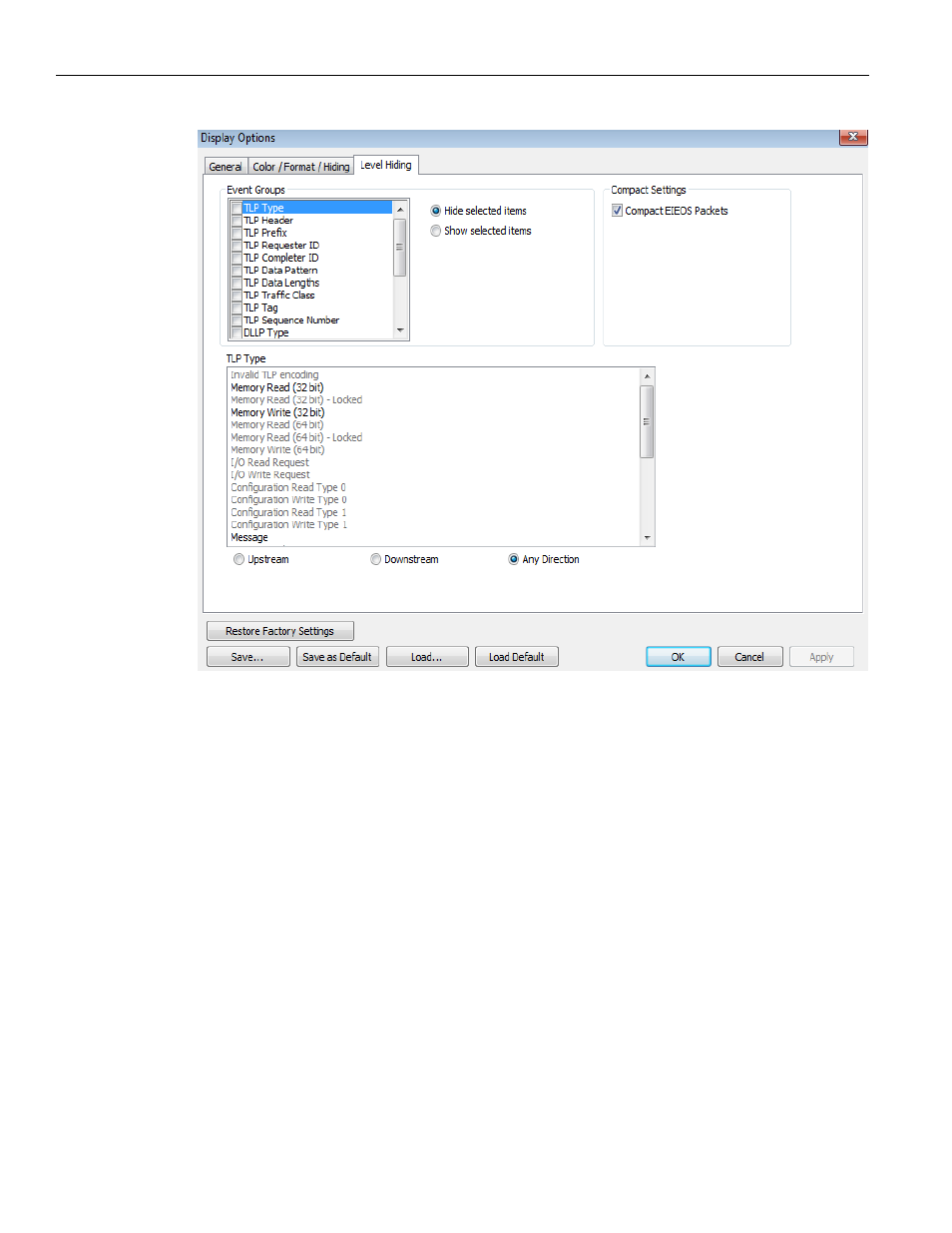

Figure 8.6: Display Options Dialog - Level Hiding Tab
To hide a level:
1. Select an Event Group.
2. Select whether to Hide or Show selected items.
3. Select Upstream, Downstream, or Any Direction.
4. (Optional) Select Compact EIEOS packets.
5. Click OK.
The Event Groups for Packets are:
 TLP Type
 TLP Header
 TLP Requester ID
 TLP Completer ID
 TLP Data Pattern
 TLP Data Lengths
 TLP Traffic Class
 TLP Tag
 TLP Sequence Number
 DLLP Type
