134 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual
Clicking delete on markers to delete markers with attachments displays the Delete
Marker(s) dialog. Checking the “Dont ask again” checkbox will not display this
confirmation dialog again.

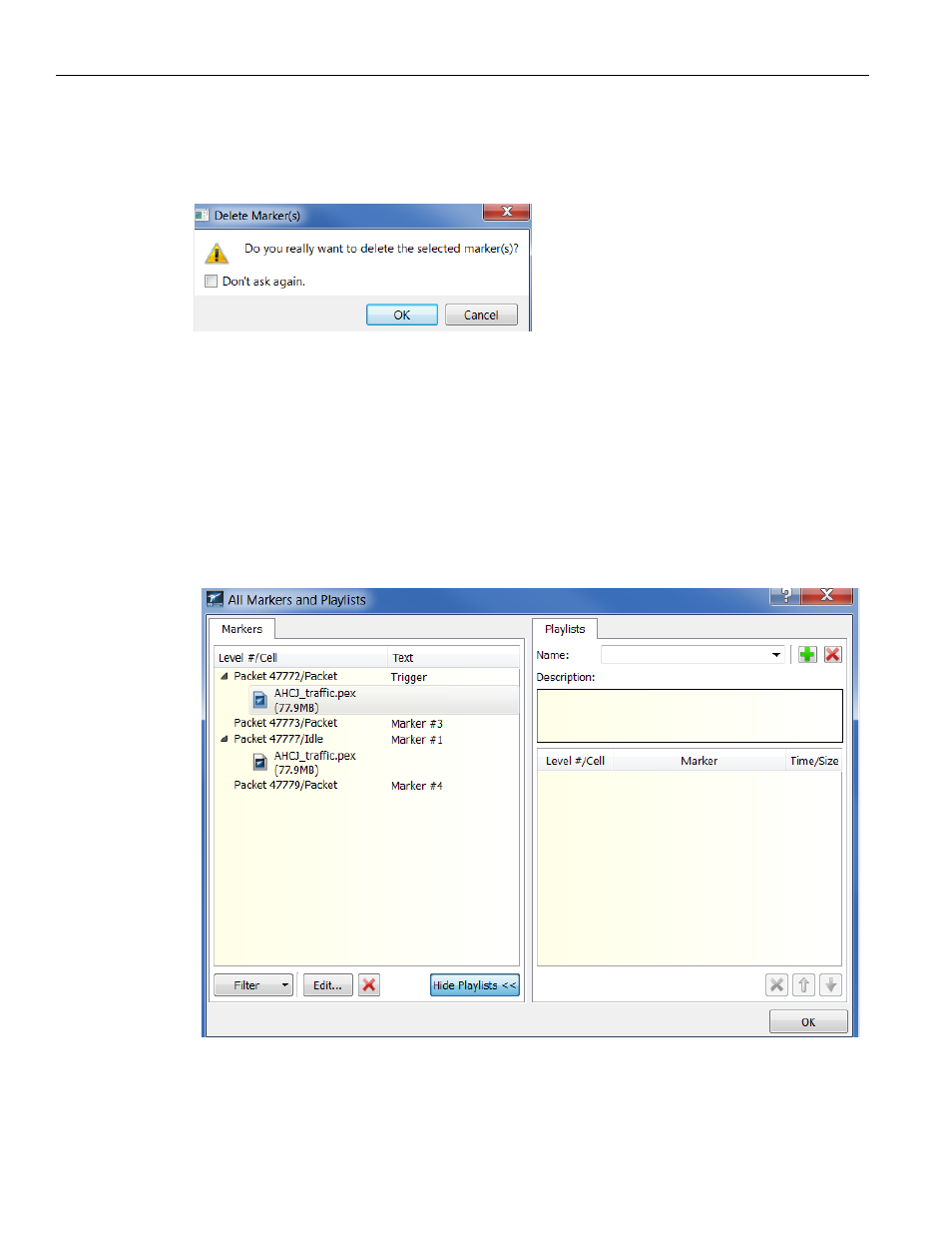

Figure 7.23: Confirmation Dialog
7.7 CATC Walk Playlist
This feature allows users to configure sequences of attachments into playlists. Any
arbitrary order of attachments are allowed, and there are no limits on the number of
playlists supported. This feature can be used for collaborating among developers as well
for training, support and marketing purposes.
To access a playlist click on the View menu in the top toolbar of application, select CATC
Walk and then select Manage Playlists.
Figure 7.24: Edit CATC Walk Playlists Dialog
