Global State and Sequence States Teledyne LeCroy

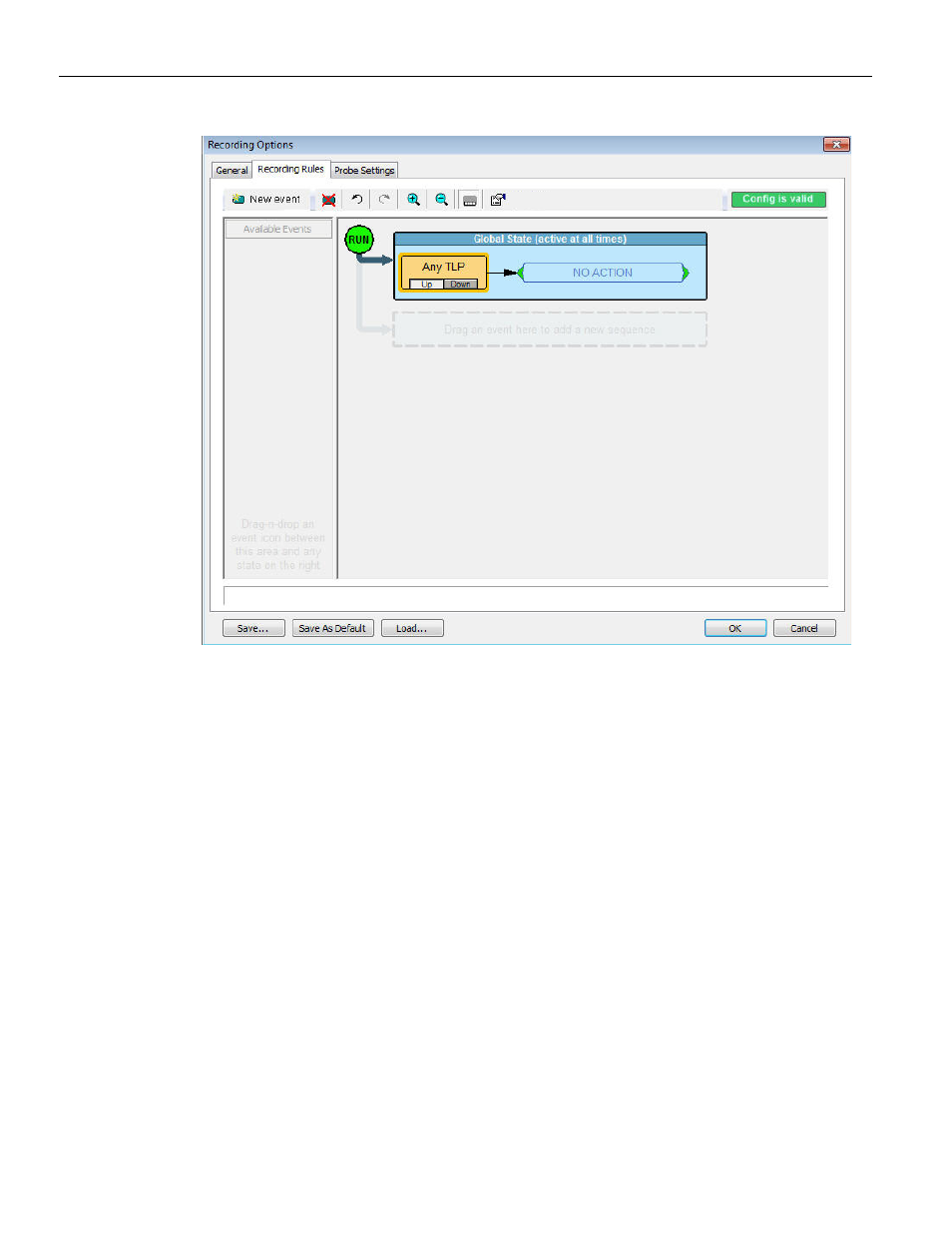

Figure 5.25: Global State
For the Global State there are only 2 Basic Resources for each Channel. Some
optimization is done internally to accommodate additional resources. You can keep
adding resources to the Global state so long as the Config is valid button stays green. If
you add a new event which is not valid a window appears with a message prompting
Invalid Recording Rules Configuration and the Config is valid button will turn red (see
Figure 5.26 on page 74 ).
