Teledyne LeCroy Error Summary
172 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual

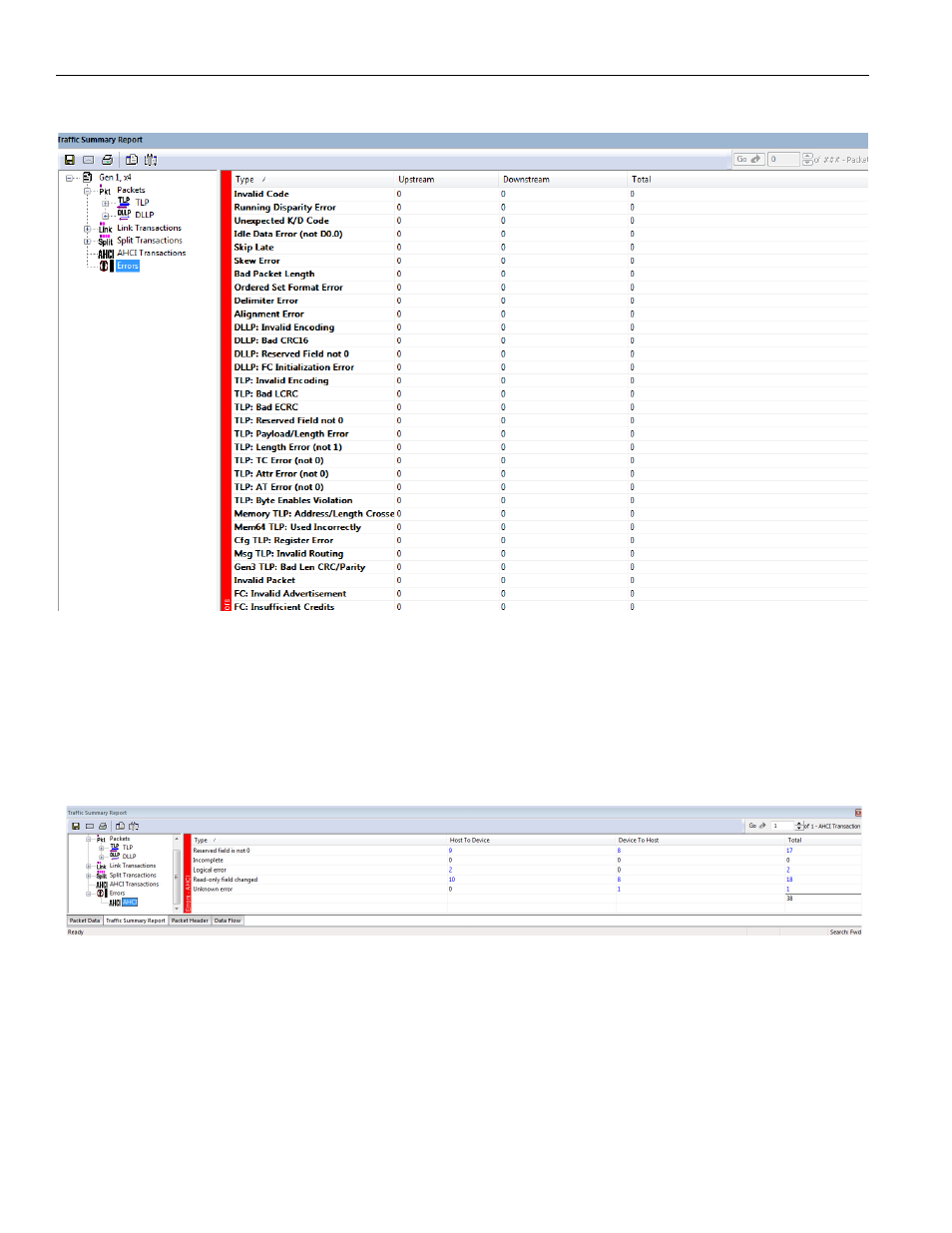

Figure 10.3: Error Summary Dialog
10.2.1 AHCI Error Summary
The AHCI Error Summary dialog is a sub‐entry for the main Error Summary dialog. It
displays the number of errors for each AHCI transaction containing the errors.
Select Reports > Error Summary to open the Error Summary dialog (see Figure 10.4 ).
Figure 10.4: AHCI Error Summary Dialog
The five types of AHCI errors are describe below:
Reserved Field not Zeroes
One or more fields inside the AHCI transaction are not filled with all 0s. The AHCI
specification states that all reserved fields and registers must be filled with 0s.
