Real‐Time Statistics Window

 Teledyne LeCroy

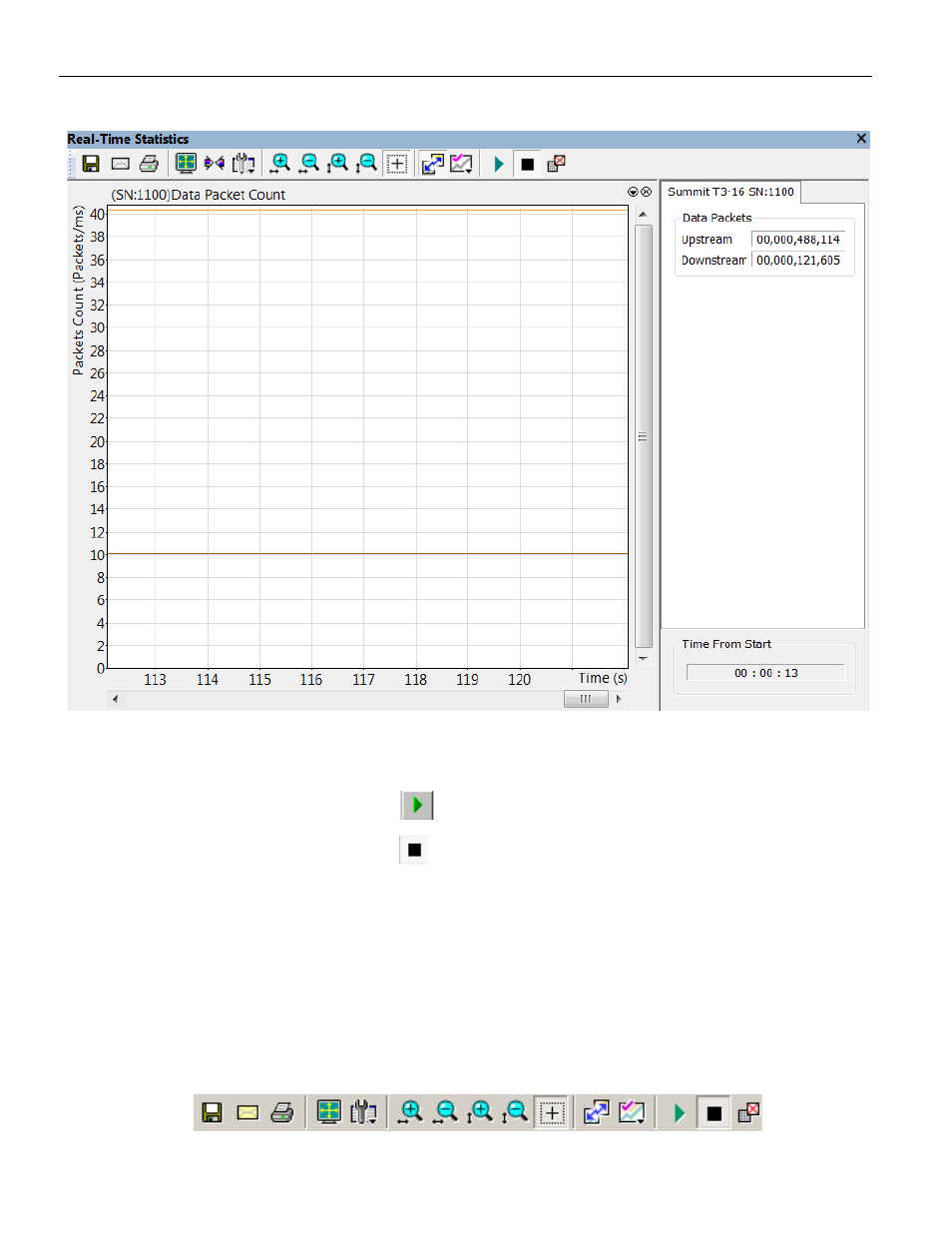

Figure 10.26: Real-Time Statistics Dialog

Start PCI Express™ link activity.

To start the monitor, press

.

To stop the monitor, press

.

The remaining Real‐Time Statistics buttons provide options for changing the format of the
display.

Additional formatting options are available through the Real‐Time Statistics pop‐up menu
and the Real‐Time Statistics toolbar.

10.19.1 Real-Time Statistics Buttons

Additional formatting options are available through the Real‐Time Statistics toolbar.
