Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual 211
Real‐Time Statistics Window Teledyne LeCroy

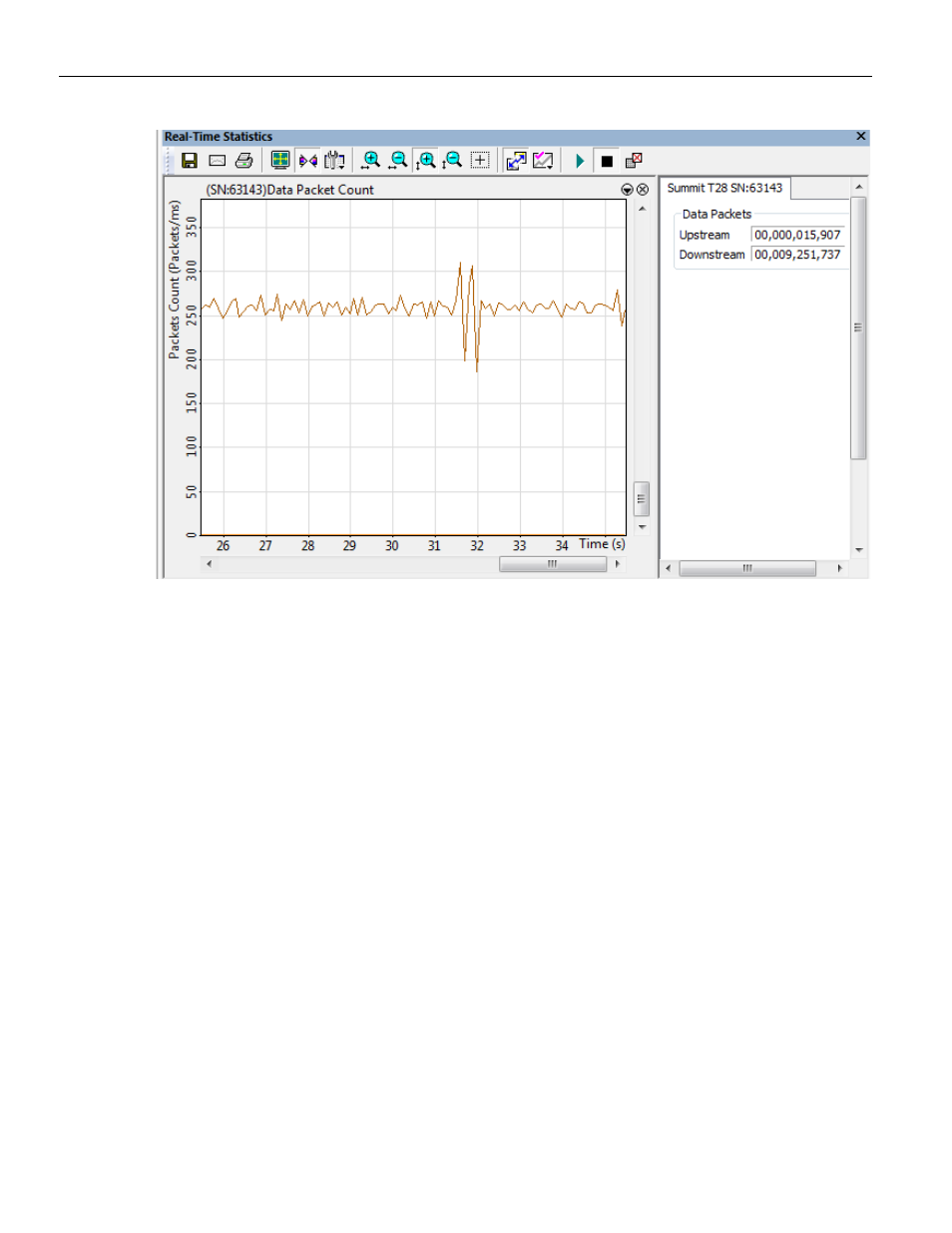

Figure 10.28: Real-Time Statistics Graph Display
For each Exerciser device, the following information is displayed:
 Number of data packets
 Payload size
 InitFC complete status: Yes/No
 Link State: Possible states are:
 DETECT_QUIET
 DETECT_ACTIVE
 POLLING_ACTIVE
 POLLING_CONFIG
 CONFIG_LINKWIDTH_START
 CONFIG_LINKWIDTH_ACCEPT
 CONFIG_LANENUM_WAIT
 CONFIG_LANENUM_ACCEPT
 CONFIG_COMPLETE
 CONFIG_IDLE
 L0
 L0S_IDLE
 L0S_FTS
 L1
 RECOVERY_RCVRLOCK
 RECOVERY_RCVRCFG
 RECOVERY_IDLE
 HOT_RESET
 DISABLED
