Teledyne LeCroy Show Metrics in the Traffic Summary Window
202 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual

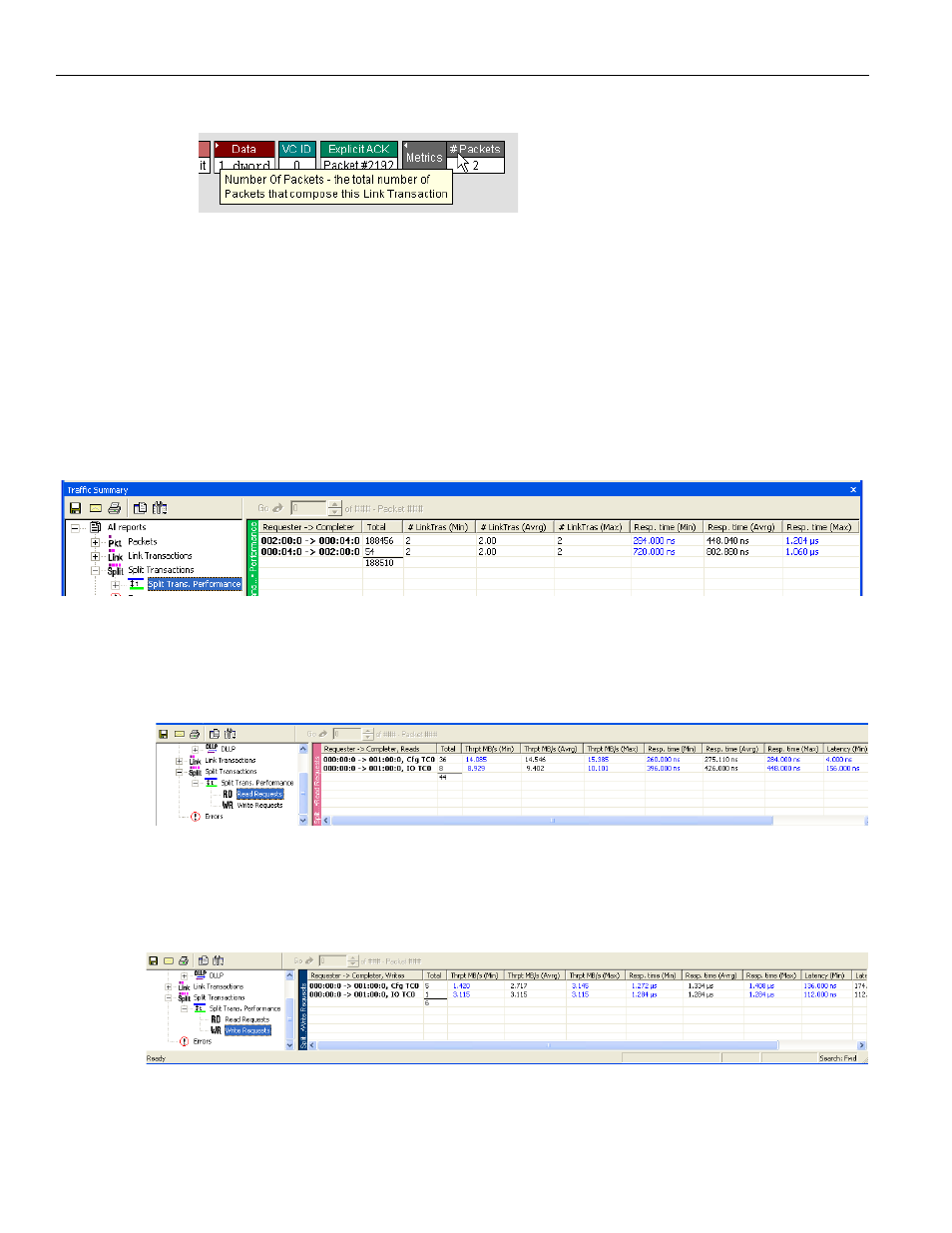

10.17 Show Metrics in the Traffic Summary Window
Some of the Traffic Summary reports at the Link and Split Transaction levels are based on
metrics collected for the corresponding protocol units in the CATC Trace.
10.17.1 Reports at Split Transaction Level
Split Transaction Performance: This report table groups the Split Transactions by
Requester‐Completer pair and displays Minimum/Average/Maximum data for Number Of
Link Transactions and Response Time metrics.
Read Requests Performance: This report table includes only the Split Transactions that
present Read Requests (Configuration, IO and Memory). It groups them by the
combination of Requester‐Completer pair, request type, and Traffic Class and displays
Minimum/Average/Maximum data for Throughput, Response Time, and Latency metrics.
Write Requests Performance: This report table includes only the Split Transactions that
present Write Requests (Configuration and IO). It groups them by the combination of
Requester‐Completer pair, request type, and Traffic Class and displays Minimum/
Average/Maximum data for Throughput, Response Time, and Latency metrics.
