Timing and Bus Usage Calculations Teledyne LeCroy
10.22 Timing and Bus Usage Calculations
The Timing and Bus Usage Calculator allows you to calculate time between packets.
Select Tools > Timing Calculations to obtain the Timing Calculator dialog.

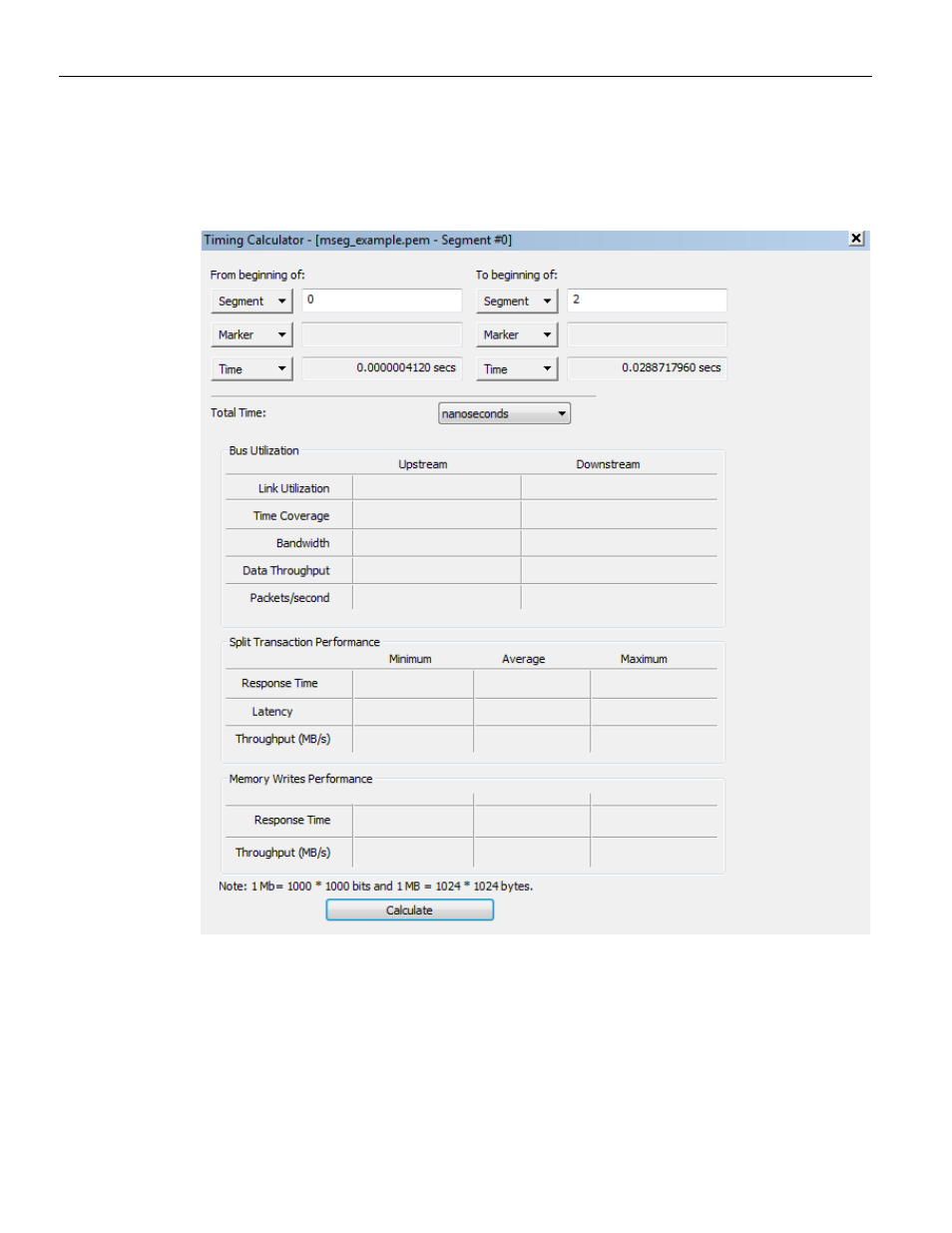

Figure 10.31: Timing Calculator Dialog
Total Time: Total time from beginning of the first unit to beginning of the second unit.
10.22.1 Bus Utilization
This portion of the Timing Calculator window gives values that are cumulative for all
packets during the timing period. For example, throughput is combined throughput of all
packets during the timing period.
