94 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual
5.23.2 How to Start or Reset a Timer
You can Start or Reset the Timer in the Global State and in the Sequence State by
performing the following steps:
1. Open the Recording Rules page, select an event, and drag it to the Global State or
Sequence cells. For details on these steps (see “Events with Channels” on page 96) .
2. Right‐click on an event and select Specify Actions > Start Global Timer > Global
Timer A or Timer B from the menu. See the figure below.

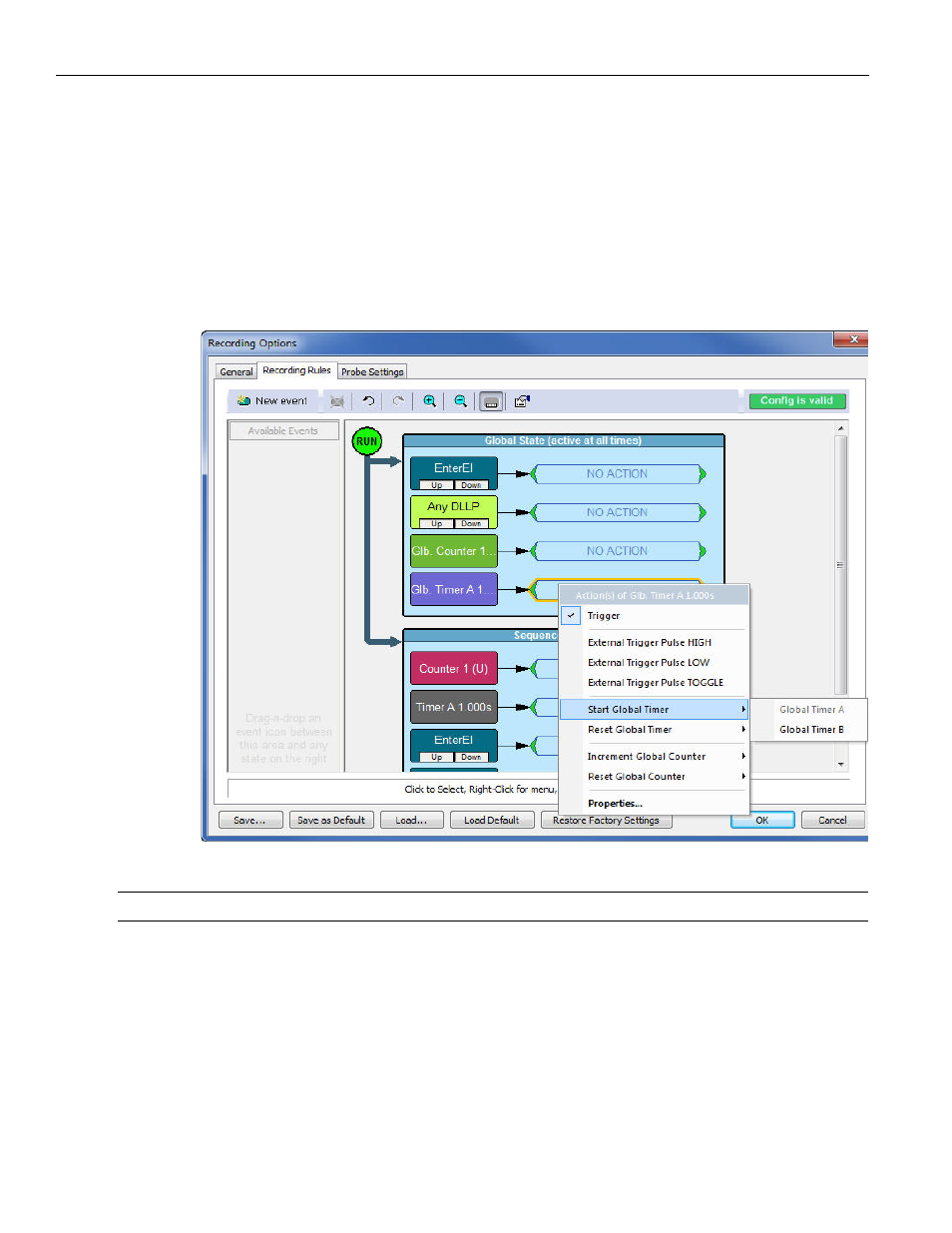

Figure 5.47: Starting and Resetting Global and Sequence State Timers
Note:
Listed below are some of the considerations to note about timer functionality
1. If a timer is reset, it will restore to it's original value, in this case the value defined by
the user.
2. Resetting a timer will stop it and set it to it's original value.
3. Local timers for a particular state will automatically reset if the sequencer advances
to another state. Example: "Timer A" in State 1 and "Timer A" in State 2 are different
timers not related to each other.
4. Local timers are controlled by events defined in the same state where the timers are
defined.
