Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual 61
Triggering Teledyne LeCroy

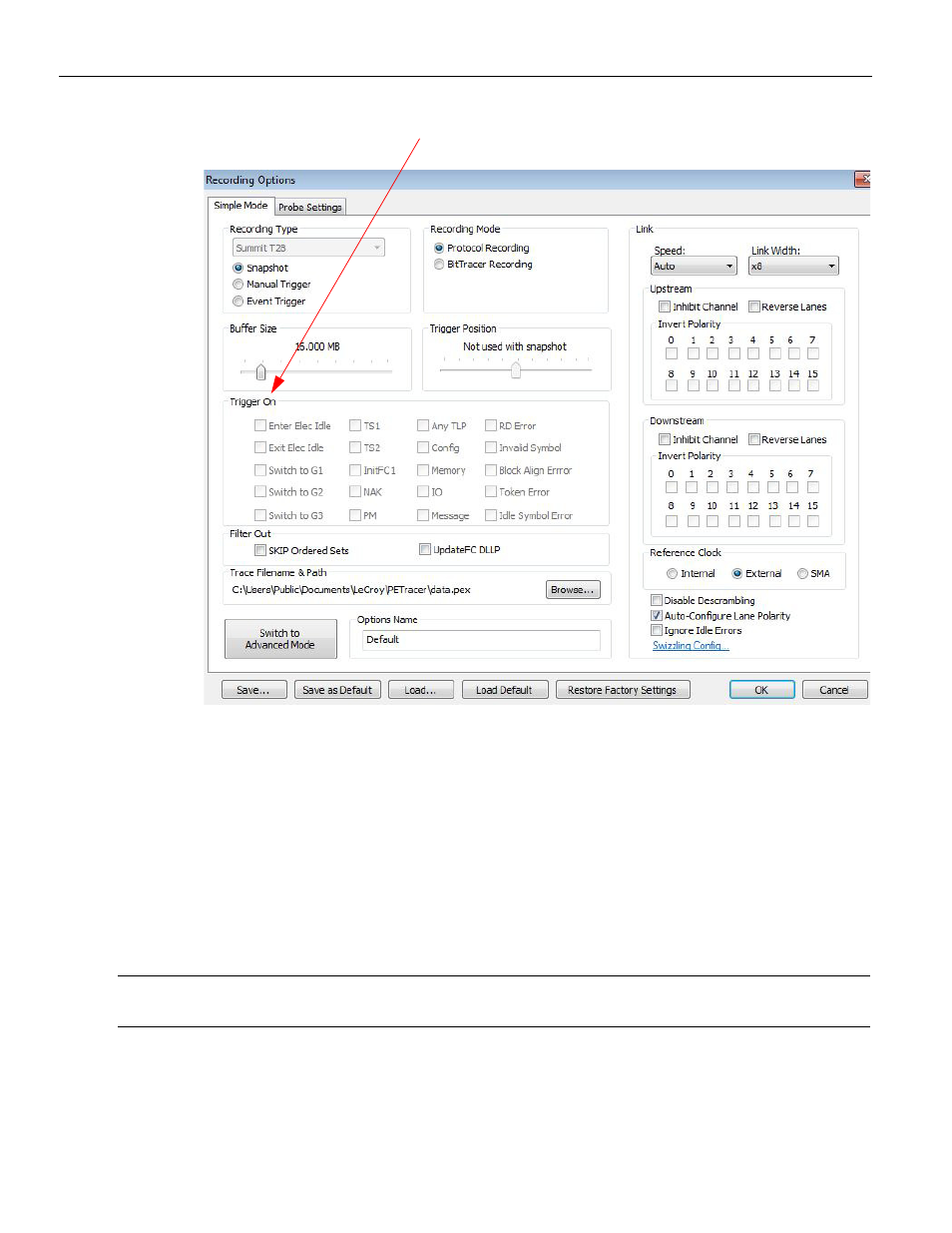

Figure 5.14: Simple Mode Triggering Options
5.15.2 Triggering On (Advanced Mode)
The same triggering options are available in the Advanced Mode as in the Simple Mode.
The Advanced Mode gives you additional flexibility to drill down and configure these
options in greater detail via the Recording Rules dialog.
In the Advanced mode click on the Recording Rules tab to configure the settings. As
shown in
Figure 5.15 on page 62 , the Recording Rules tab allows you to create New
Events. For each event you can create Actions. A detailed explanation of the Recording
Rules is given in the following sections.
Note:
External Input Trigger is not configurable, it will always cause the analyzer to trigger on a toggle
when using manual trigger or triggering on any event.
