3.4 Analyzer Network
For Ethernet, to display the host machines and analyzers on the local network, select
Setup > Analyzer Network to display the Analyzer Network dialog.

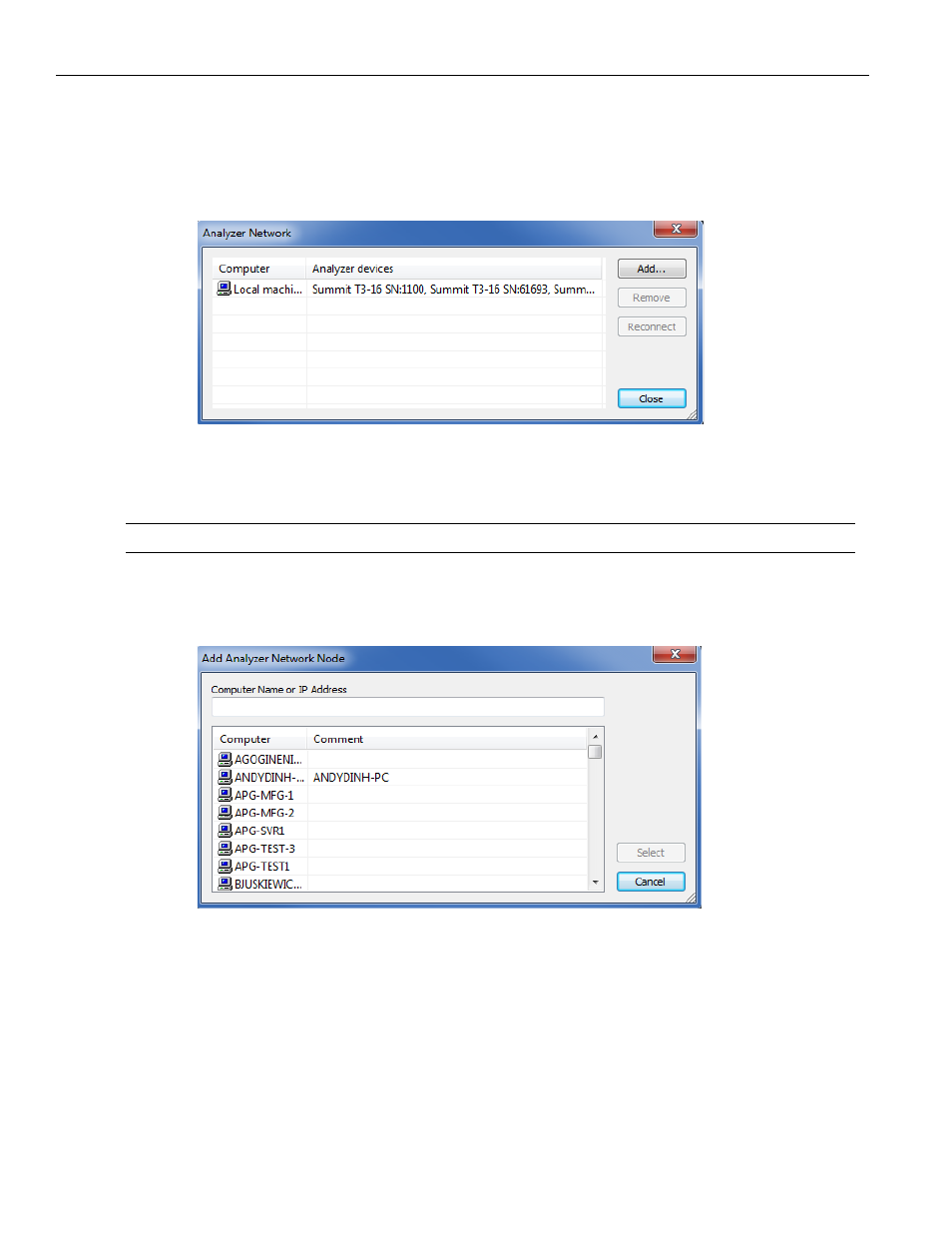

Figure 3.4: Analyzer Network Dialog
The dialog displays the host machines on the network and the Analyzer devices
connected to the host machines.
Note: The Analyzer must be turned on before it appears in the list.
You can click Add to display the Add Analyzer Network Node dialog, in which you can
select a host machine on the network.
Figure 3.5: Add Analyzer Network Node Dialog
You can also Remove a selected host machine or Reconnect a selected host machine.
