70 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual

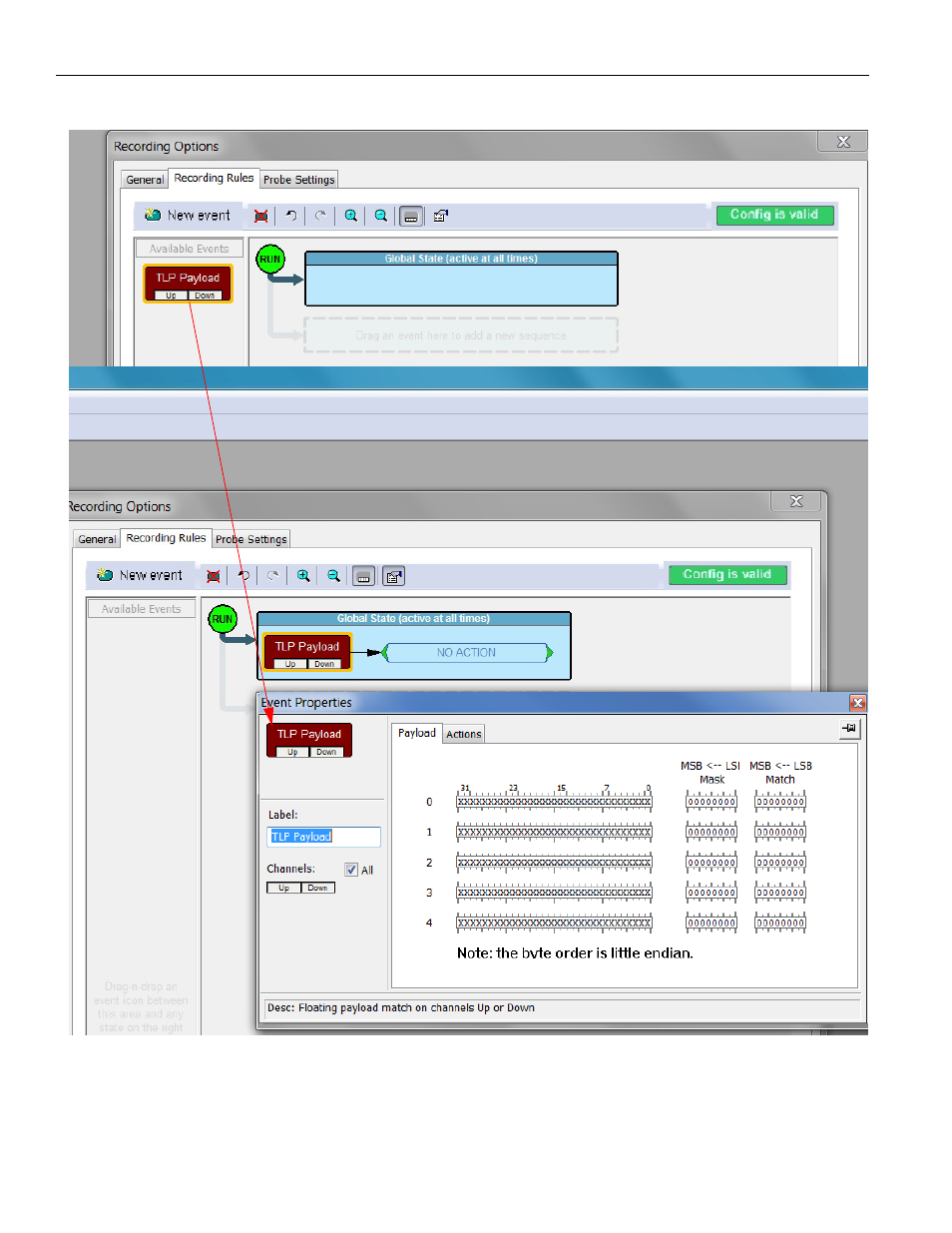

Figure 5.21: Setting Up a Payload Match Resource 2
The payload match pattern byte ordering is always little‐endian while the data payload
display in the CATC Trace is big‐endian. The CATC Trace is configurable, so you need to
exercise caution in order to specify the matching pattern properly.
