Teledyne LeCroy Errors Bar
160 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual

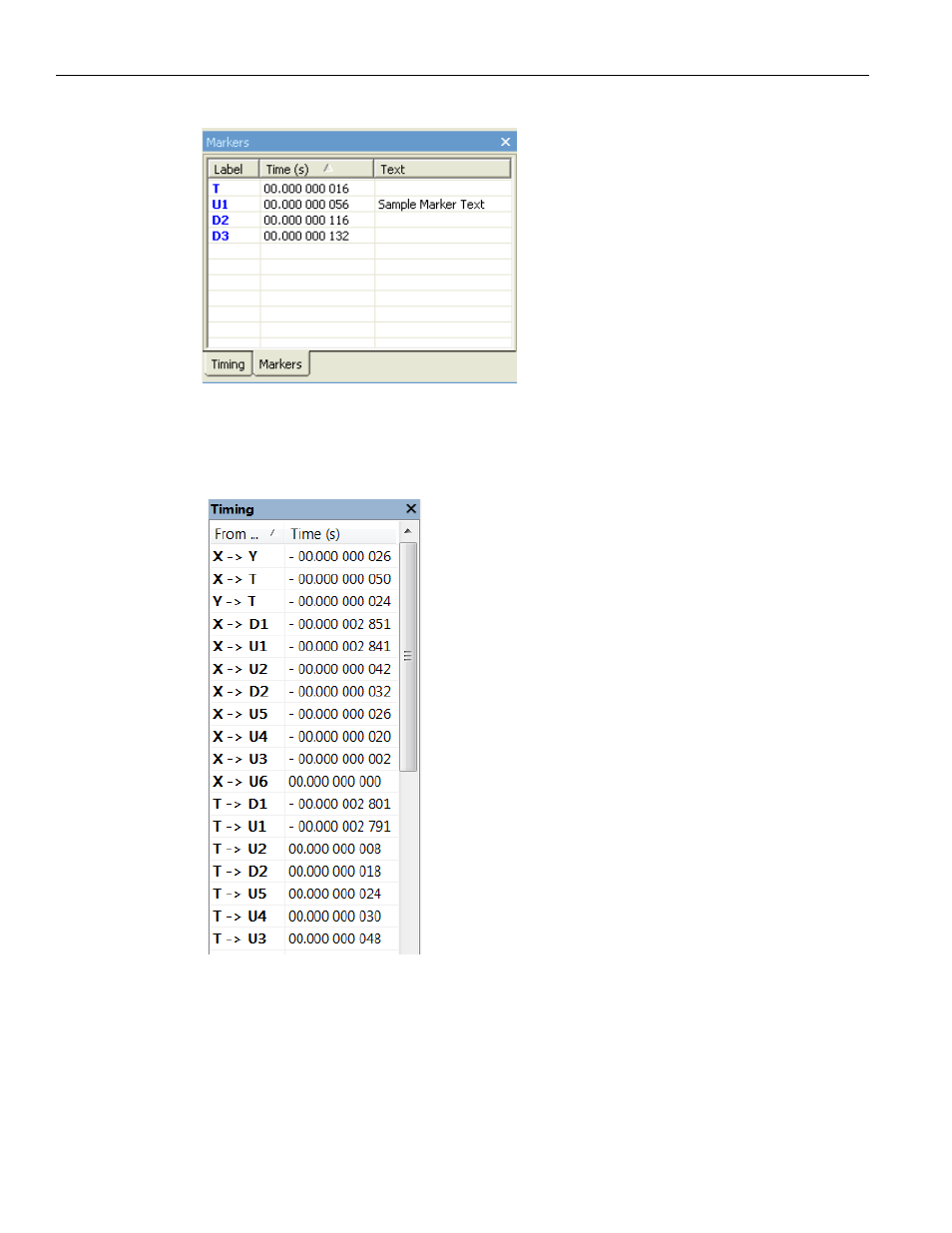

Figure 9.1: Markers Window
Timing measurements between all combinations of X, Y, U, and Trigger cursors are in the
Timing window.
Figure 9.2: Timing Window
9.8 Errors Bar
BitTracer mode provides a summary of 10b errors (invalid symbols) and disparity errors in
the Errors window. The window shows the total error count and errors per‐lane for each
error type. Hyperlinks allow jumps to selected errors (see
Figure 9.3 on page 161 ).
