Teledyne LeCroy Recording Rules Overview
62 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual

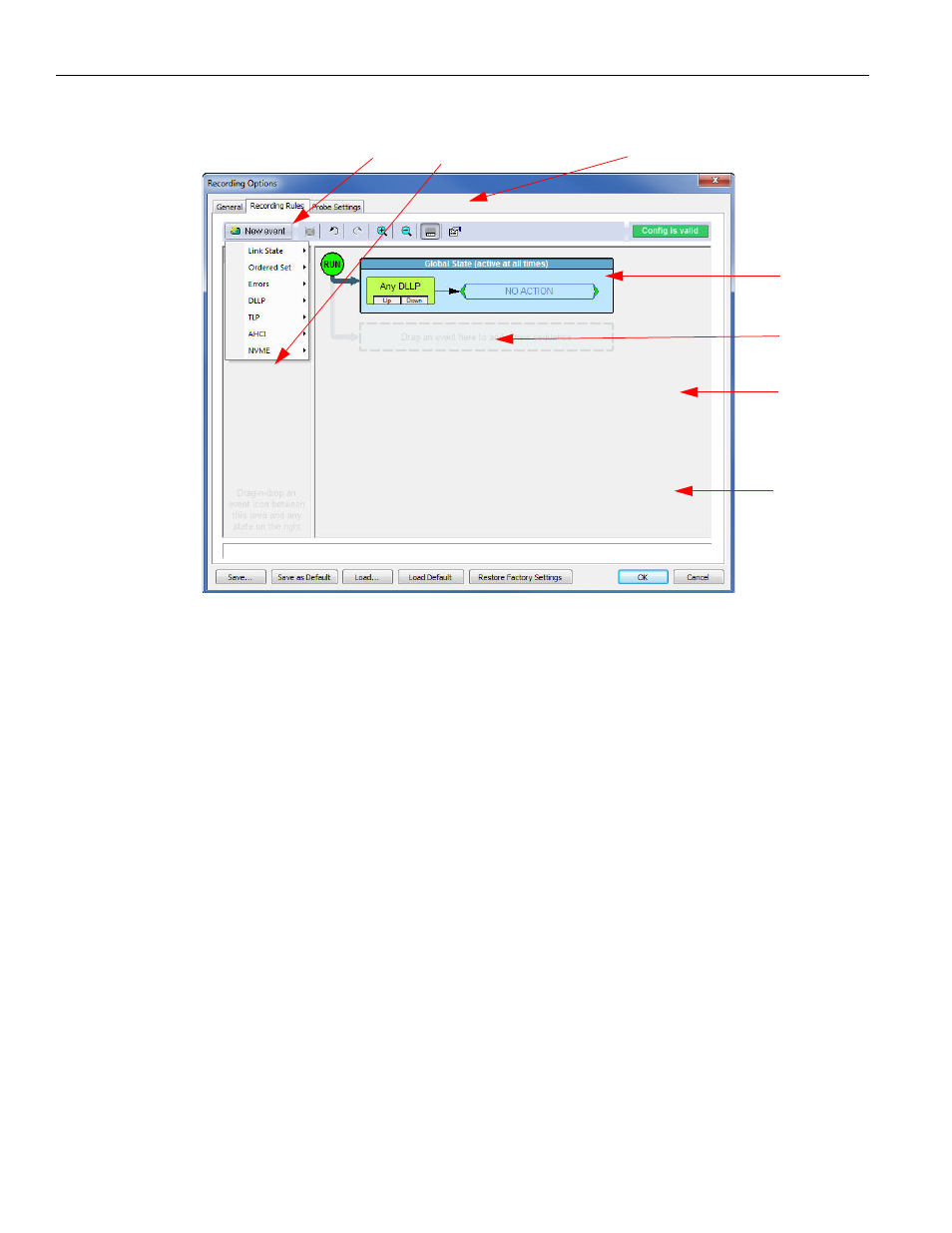

Figure 5.15: Recording Rules Tab
5.16 Recording Rules Overview
The Recording Rules allows you to specify complex triggering and filtering options. The
Summit T28 monitors incoming traffic and looks for specified events. It performs actions
like triggering and filtering. Complex options can be created by putting Events in a
sequence.
Events are based on Resources (see “Resources” on page 65 ).
5.16.1 Defining Recording Rules
The Recording Rules page is used to set triggers and filters. To access this page, select
Setup > Recording Options > Recording Rules.
You can also access the New Event menu by right‐clicking in the blue space in the Global
State or in the Sequence State.
New Events Menu Available Events Panel Toolbar
Global
State
Cell
Sequence
Cells
Actions
Menu
Main
Display
Area
