Teledyne LeCroy Making a PCI Express Recording
36 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual

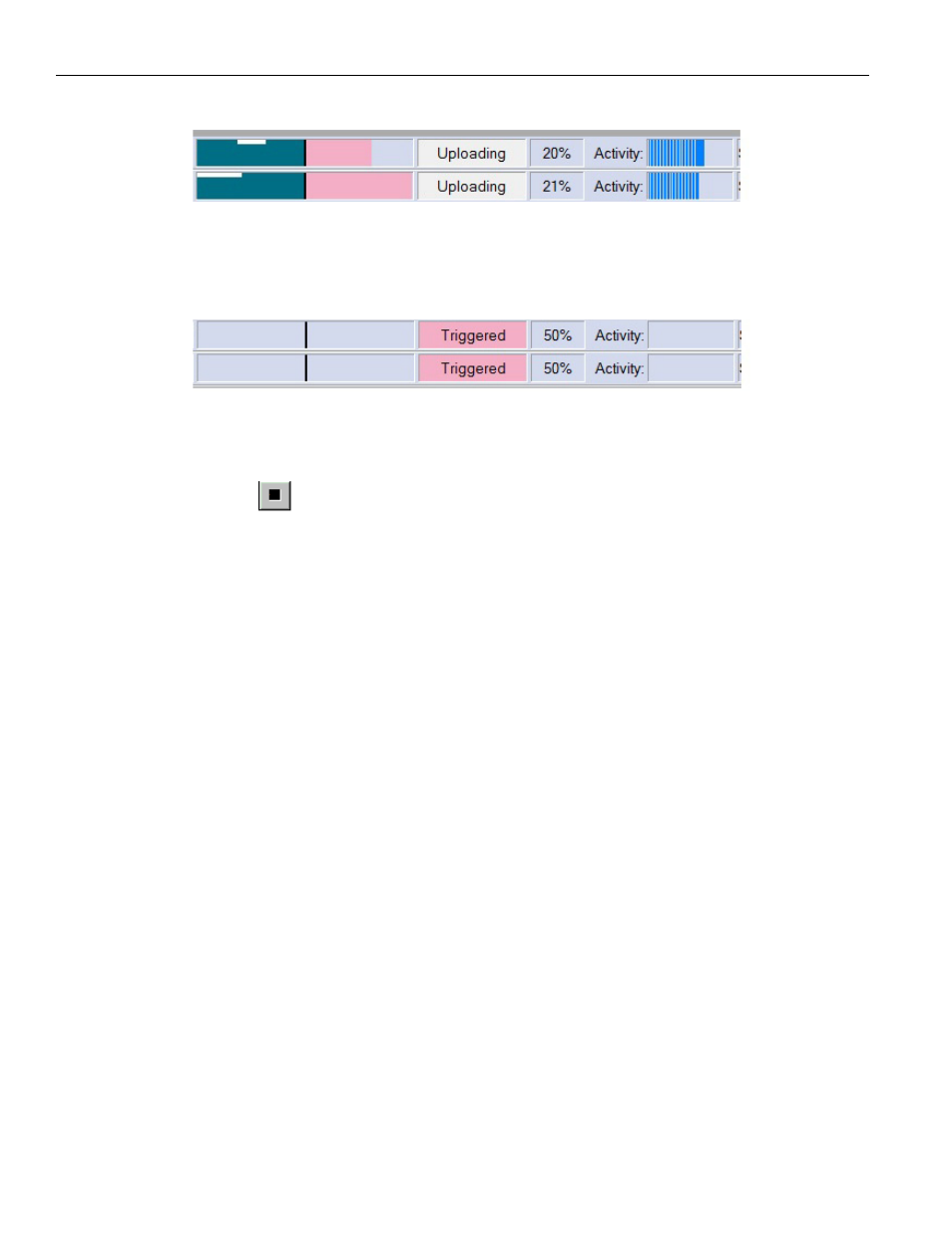

Figure 4.7: Status Bar - Uploading
The status bar displays Triggered when the trigger condition has occurred, but uploading
has not commenced yet.
Figure 4.8: Status Bar - Triggered
As uploading progresses, the percent increases to 100. You can abort this upload if you
wish by pressing the ESC button on your keyboard or
clicking in the Tool Bar.
4.9.3 Recording Activity
The third segment displays recorded activity as a series of blue vertical bars. The more
vertical bars that display, the greater the amount of activity recording. If there are no
vertical bars, there is no recording activity.
During uploading, the percent of the completed upload displays.
4.9.4 Search Direction Indicator
The fourth segment in the status bar indicates search direction. The direction can be
changed by selecting Search Direction from the Search menu.
4.10 Making a PCI Express Recording
After connecting the Analyzer to the device(s), you must configure the
Recording Options. Then you can test the Analyzer by creating a 16‐MB snapshot
recording.
To make this recording, follow these steps:
1. From the Setup menu, select Recording Options and click the Switch to Simple
Mode button.
2. Select the Simple Mode tab.
The following dialog displays the factory default settings in Simple Mode (see
Figure 4.9 on page 37 ), such as Snapshot and 16‐MB buffer size. For your first
recording, select the proper speed and link width.
