Teledyne LeCroy Timer
92 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual

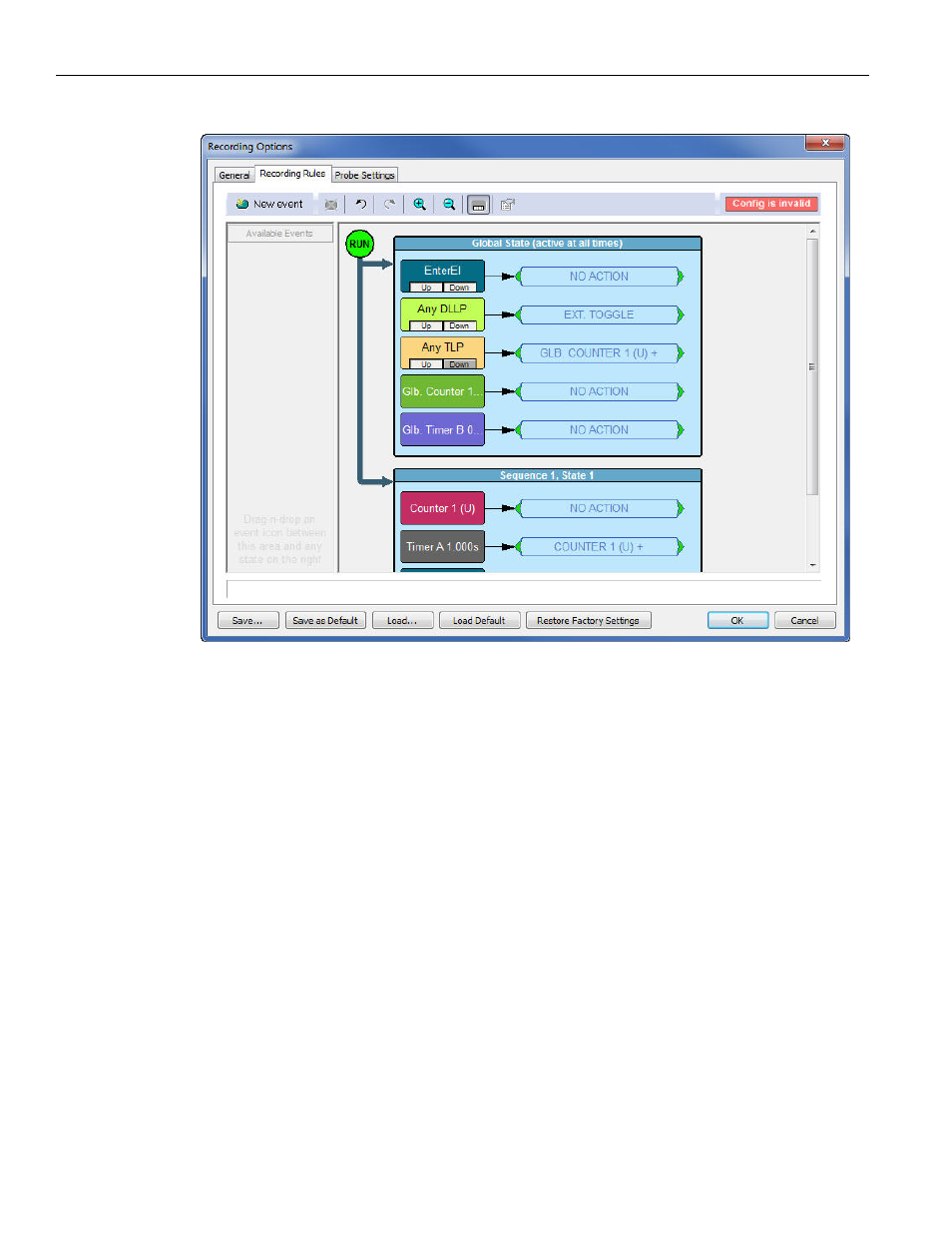

Figure 5.45: Global and Sequence State Timers
As shown in Figure 5.45 there is a Global Timer A, set to the value of 1.000s on channel
Up displayed in blue in the Global State and there is one timer A, set to the value of
1.000s on channel Down displayed in brown in the Sequence State.
