Teledyne LeCroy Report and Analysis Windows
158 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual
 Signal presence
 Background of the Markers Bar (see “Markers Bar” on page 159 )
(color coded according to traffic speed).
 All symbols of a TS1/TS2 ordered set
By default, these color selections match the standard color selections used in the
CATC Trace format. You can modify them in the Display Options menu, accessible from
the Main toolbar or the Setup menu.
9.6 Report and Analysis Windows
In the report windows, BitTracer mode provides several functions to analyze traffic:
 Statistical information
 Timing measurements
 Packet decoding

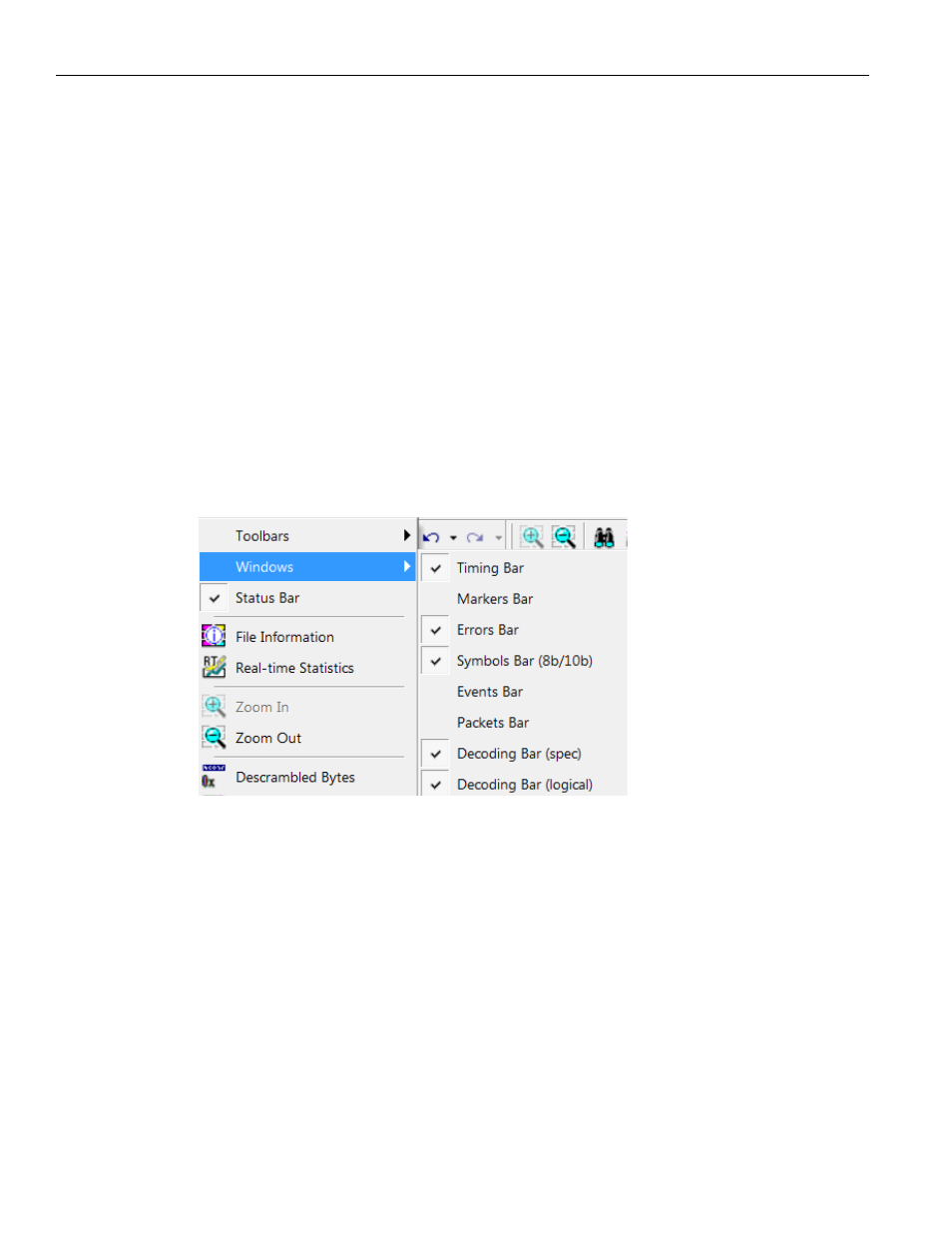

To activate/deactivate a report window, use Views > Windows
You can rearrange the report windows.
All report windows are dockable.
9.7 Timing Measurements Bar
BitTracer mode provides timing measurements on captured data (see the following
figure):
 Measurements from the Trigger position relative to user‐selected X and Y mark‐
ers
 X‐Y measurements
 Measurements between user‐defined markers
