Teledyne LeCroy Recording Rules Overview
64 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual
There are three steps to creating a recording rule:
1. Select events.
2. Place the events in the Global State or Sequence cells.
3. Assign actions to the events.
Note: There are limits to the types of rules that can be created.

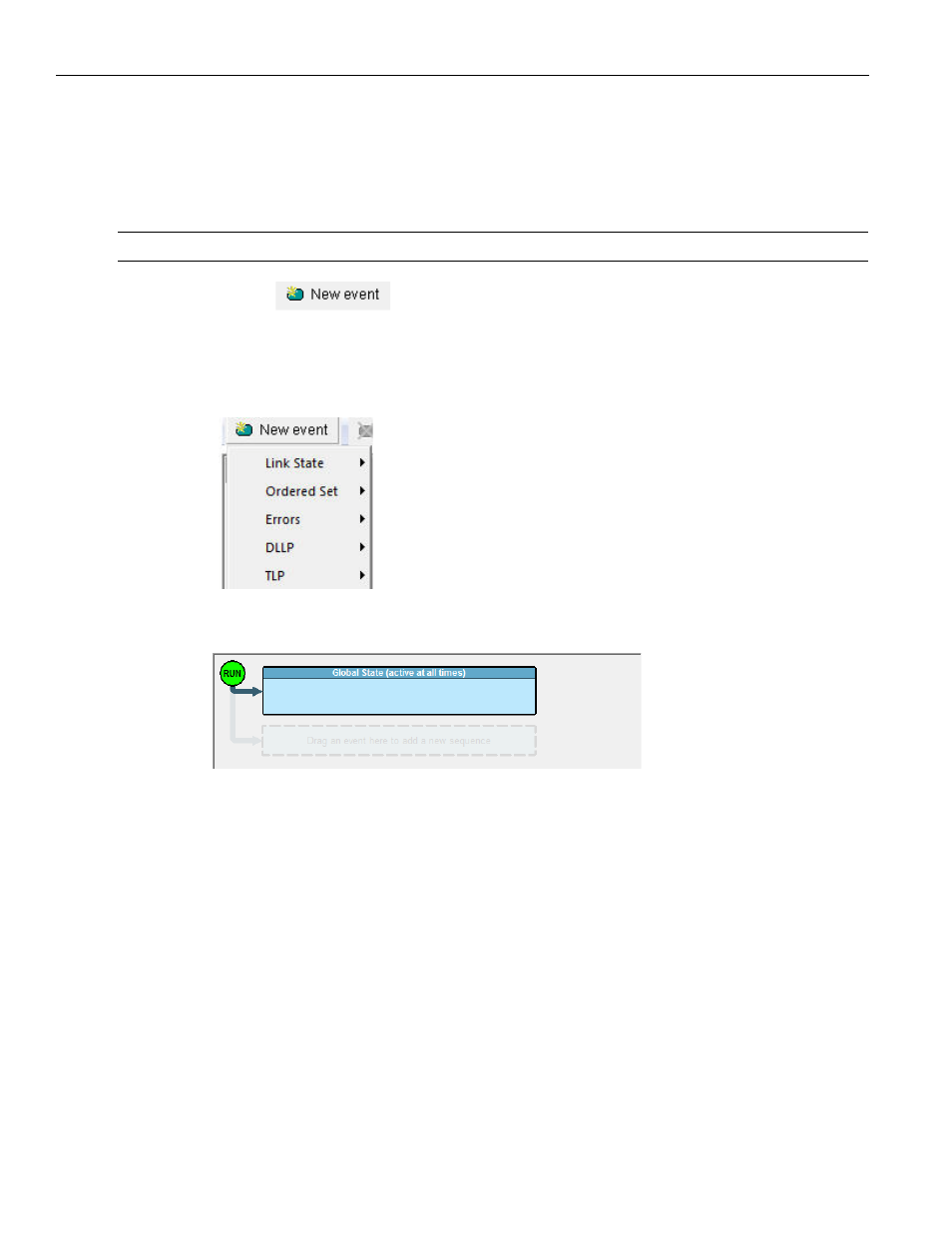

1. Click and select one or more events from the menu. Selecting an
event automatically places it in the Available Events area. This repository area
serves as a parking lot where you can place event buttons without them having any
effect on the Analyzer.
2. Drag the selected events from the Available Events area into either the Global State
Cell or the Sequence Cell (see “Recording Rules Overview” on page 62 ).
Global State Cell
If you want the Analyzer to always search for the event, place it in the cell marked
Global State.
Sequence Cell
To create an event sequence, place two or more events in the faintly marked cell
that reads Drag an event here to add a new sequence. At this point, the selected
events have no effect because an action has not been assigned.
3. To select a sub‐set of your selected event, right‐click it and choose Properties. A
Properties dialog opens that presents additional options. For example, if you open
the Properties dialog for Errors, you can set the specific types of errors the Analyzer
should look for.
