Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual 163
Packets Bar Teledyne LeCroy
9.11 Packets Bar
The Packets report window summarizes packet types detected in the file.
Note: To obtain packet types, you must perform a post‐capture “Analyze” step. After capture, when
you open the Packets Bar for the first time, items can display the command “Analyze”. To start
the analysis, click the word Analyze. After analysis finishes, the results are saved with the file.
Therefore, you do not need to click Analyze the next time.
The table entries are hyperlinks.
Note: If you edit anything, the results are no longer valid, and the system requires you to click Analyze
again.

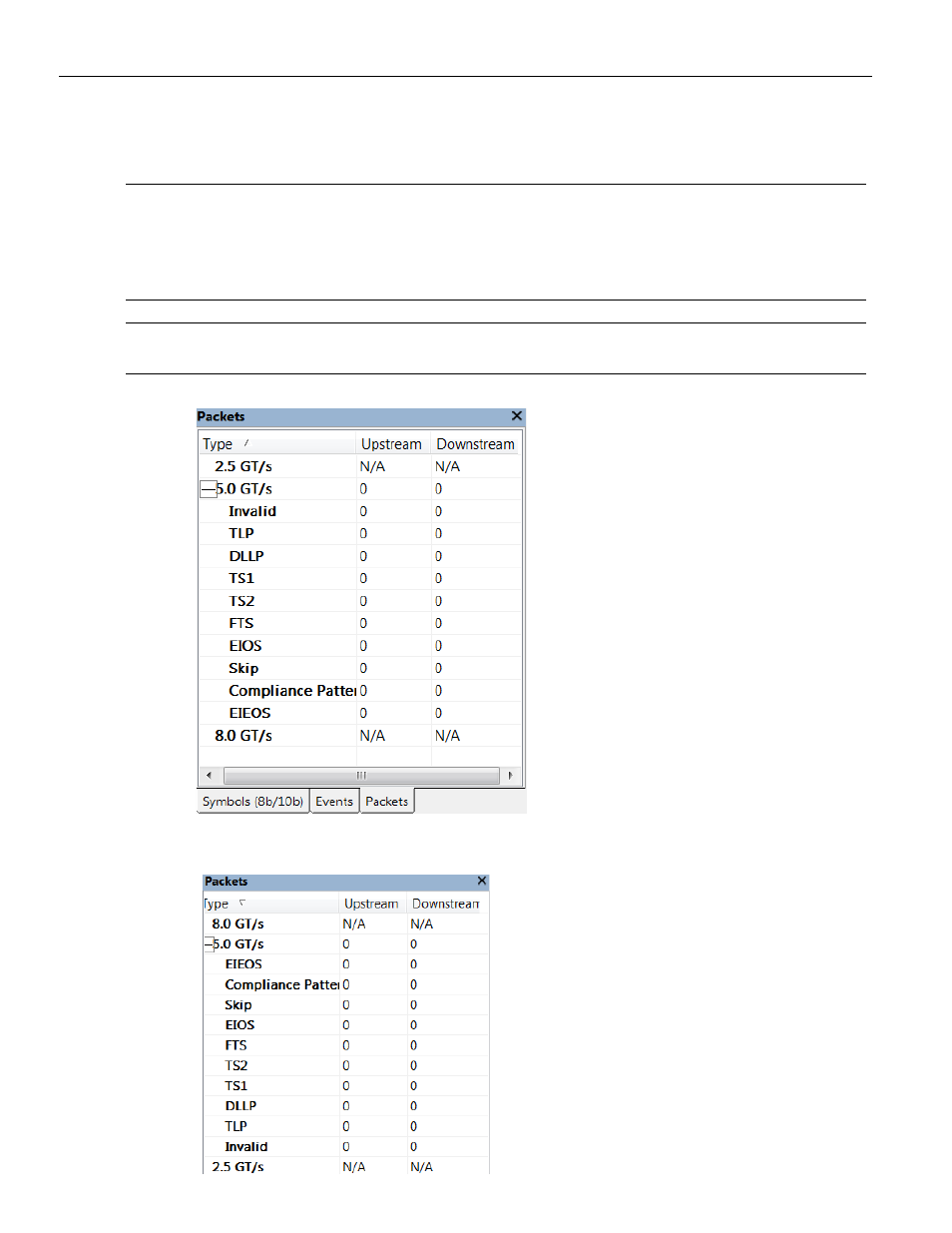

Figure 9.6: Packets Window
After analysis, the Packets Bar looks like the following:
