Teledyne LeCroy Multi‐Segment Toolbar
24 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual

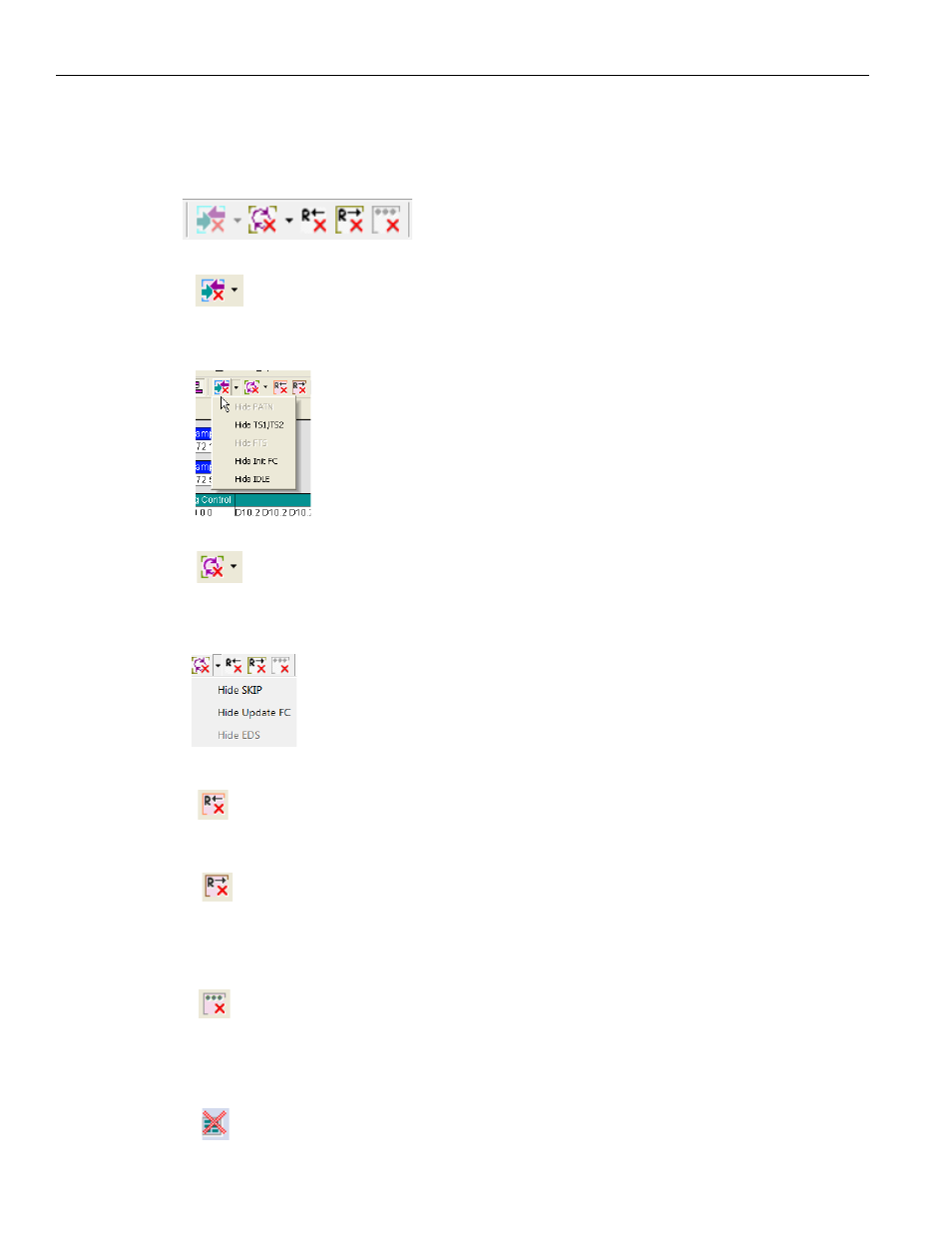

4.4.1 Toolbar Hide Buttons
The PETracer application toolbar has five buttons related to show/hide of CATC Trace file
contents. The buttons allow you to quickly adjust the display to your needs.
Hide Training: Brings up a drop‐down menu that lets you to hide all or a portion of the
packets in the training portion of the CATC Trace.
Hide SKIP, Hide EDS and Update FC: Brings up a drop‐down menu that lets you hide SKIP,
Update FC and hide EDS packets in a CATC Trace.
Hide Upstream: Hide all traffic from endpoint devices to the root complex.
Hide Downstream: Hide all traffic from the root complex to endpoint devices.
Advanced Hiding Options: Brings up the Level Hiding pane of the Display Options
window. Use this pane to tune the show/hide options within the CATC Trace display. You
can also select Setup > Display Options from the menu to display this dialog.
Hide Unassociated Traffic: Hides the lower‐level transaction packets. Example: Link
Transactions and Packets are considered "unassociated" when using Split Transaction
Level view.
