Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual 79
Properties Dialog Boxes for Events Teledyne LeCroy
Description String
This area contains a textual description of the event.
Event‐specific Settings
The largest part of the Event Properties dialog. The settings in this area vary for different
events. Some events do not have any additional settings.

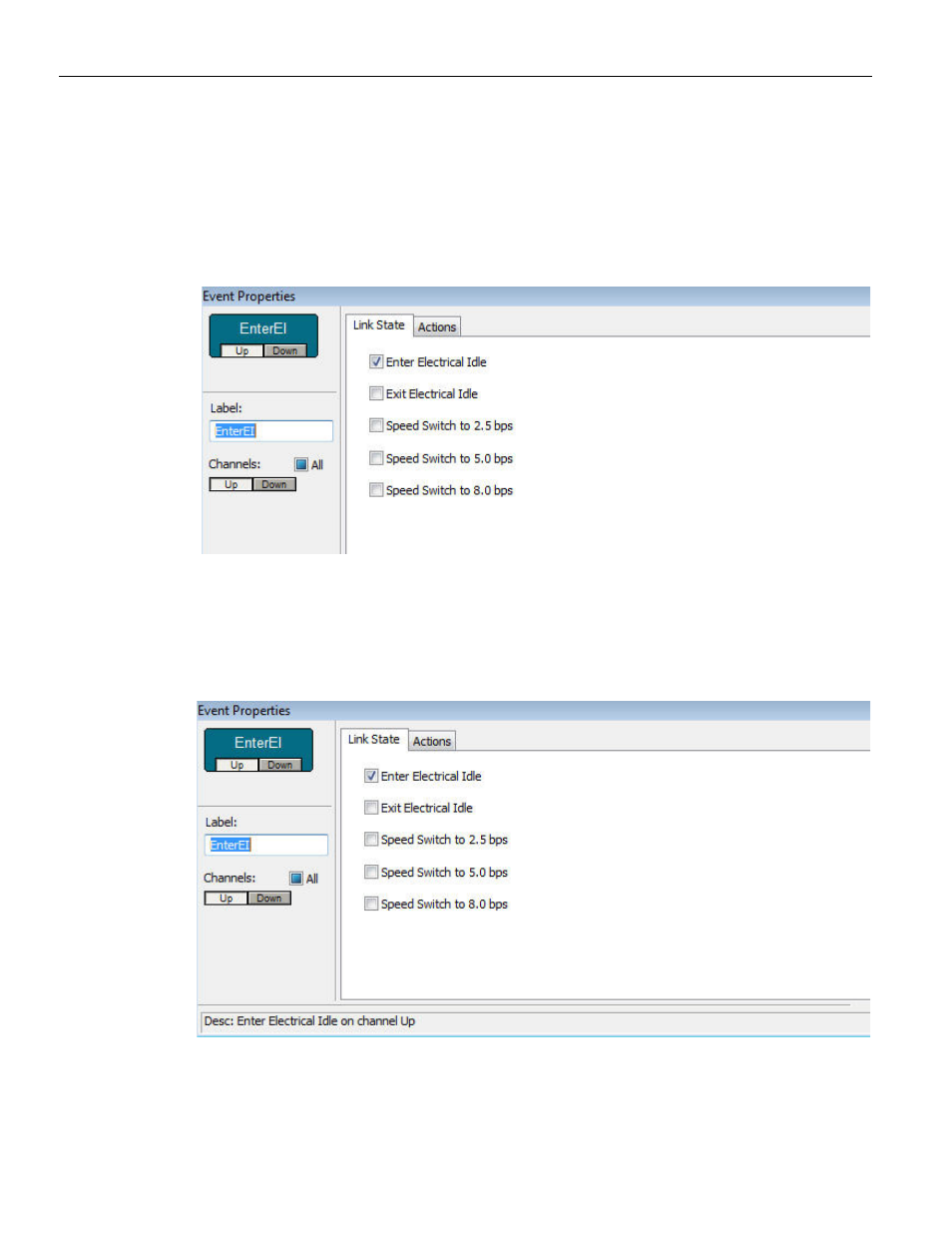

Figure 5.28: Properties Dialog Box
5.21.3 Link State Dialog
The Link Properties dialog lets you select the link state.
Figure 5.29: Link State Properties Dialog
