128 Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual
7.6.8 Viewing Attachments of a Marker
If you hover over the marked cell (yellow triangle at the top right of the marked item),
refer to
“Attachment Types and Visualization” on page 127 , a window pops up displaying
the contents of the marked cell as shown below.
While hovering over the marked cell, it can start playing the start of the audio or video
file, but it will stop after a short time due to the Anaylzer’s host system timeout for
Tooltips. You must click on it to open the audio or video attachment for further listening
or viewing.
To view an attachment you can click on any of the icons in the attachment bar and or you
can double‐click on the icon itself to open the attachment.

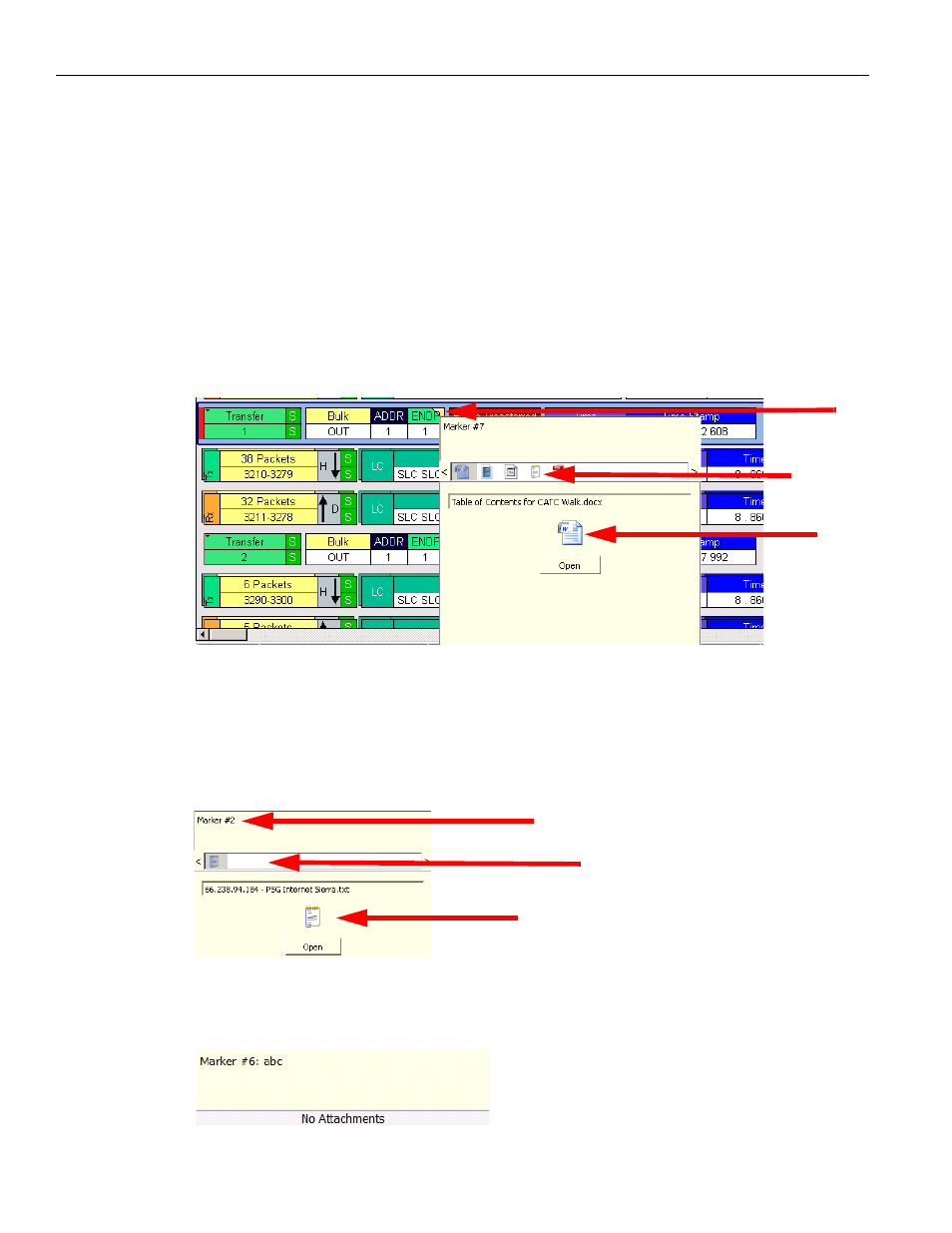

Figure 7.16: Pop-up Displaying Marker Contents
Text
The text attachment is displayed in the icon bar and in the main pop‐up window. Text
attachments are always shown at the top. The attachment file name is displayed in the
field as shown below.
Figure 7.17: Text Attachment Pop-up Window
If there is no attachment, No Attachments displays in the status bar at the bottom.
Figure 7.18: No Attachments Pop-up Window
