Memory I/O Space Editor

212

Summit T28 PCI Express Multi‐Lane Protocol Analyzer User Manual

10.20 Memory I/O Space Editor

The Memory I/O Space Editor allows you to create a new Memory I/O Space file or open
an existing Memory I/O Space file. It is used in conjunction with Teledyne LeCroy Trainer
products. Select Tools > Memory I/O Space Editor to display the Memory Space Editor
dialog.

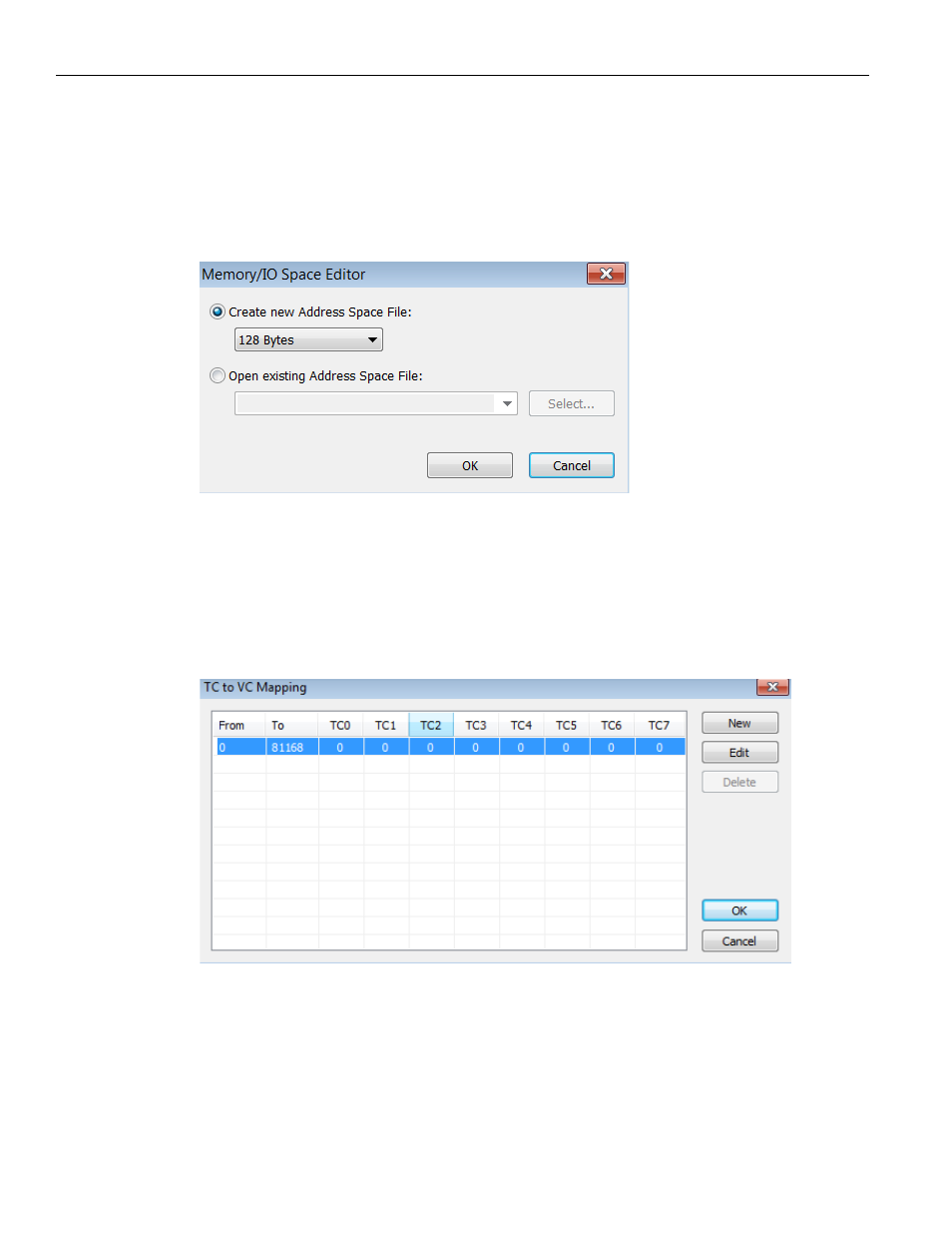

Figure 10.29: Memory I/O Space Editor Dialog

10.21 TC to VC Mapping

Select Tools > TC to VC Mapping



displays how Traffic Classes are mapped to Virtual

Channels (to simplify navigation) and how the CATC Trace display was changed (for
example, in Split Transactions).

Figure 10.30: TC to VC Mapping Dialog
