• Role – Indicates the current role of the switch in the cluster; either Commander,
Member, or Candidate. (Default: Candidate)
• Cluster IP Pool – An “internal” IP address pool that is used to assign IP addresses
to Member switches in the cluster. Internal cluster IP addresses are in the form
10.x.x.member-ID. Only the base IP address of the pool needs to be set since
Member IDs can only be between 1 and 36. Note that y
ou cannot change the cluster
IP pool when the switch is currently in Commander mode. Commander mode must first
be disabled. (Default: 10.254.254.1)
• Number of Members – The current number of Member switches in the cluster.
• Number of Candidates – The current number of Candidate switches discovered
in the network that are available to become Members.
Web – Click Cluster, Configuration.

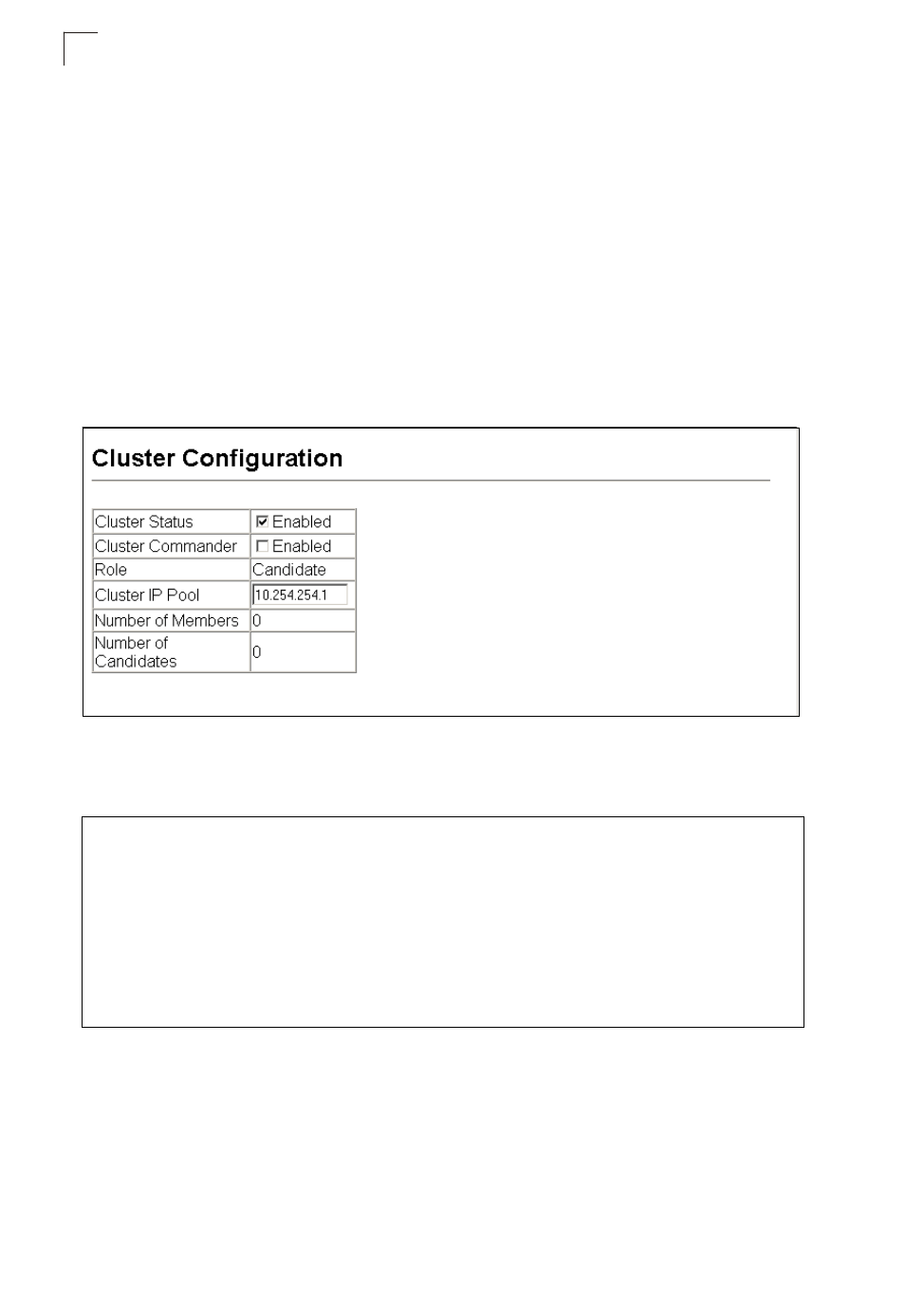

Figure 3-178 Cluster Configuration
CLI – This example first enables clustering on the switch, sets the switch as the
cluster Commander, and then configures the cluster IP pool.
Console(config)#cluster 4-81
Console(config)#cluster commander 4-81
Console(config)#cluster ip-pool 10.2.3.4 4-82
Console(config)#exit
Console#show cluster
4-84
Role: commander
Interval heartbeat: 30
Heartbeat loss count: 3
Number of Members: 0
Number of Candidates: 0
Console#
