Multicast VLAN Registration
3-299
3
Configuring Static MVR Receiver Group Members
You can statically assign a multicast reciever group to the selected interface using
the Receiver Group Member Configuration page.
Field Attributes
• Interface – Indicates a port or trunk.
• Group Address List – Multicast receiver groups assigned to the selected
interface. Note that the displayed multicast services have been configured as a
receiver group to be managed through the MVR receiver VLAN (see "Configuring
MVR Receiver VLAN and Group Addresses" on page 3-297).
Web – Click MVR, Receiver Group Member Configuration. Select a port or trunk
from the “Interface” field, select a multicast group address from the member list, and
then click the Add or Remove button to modify the list.

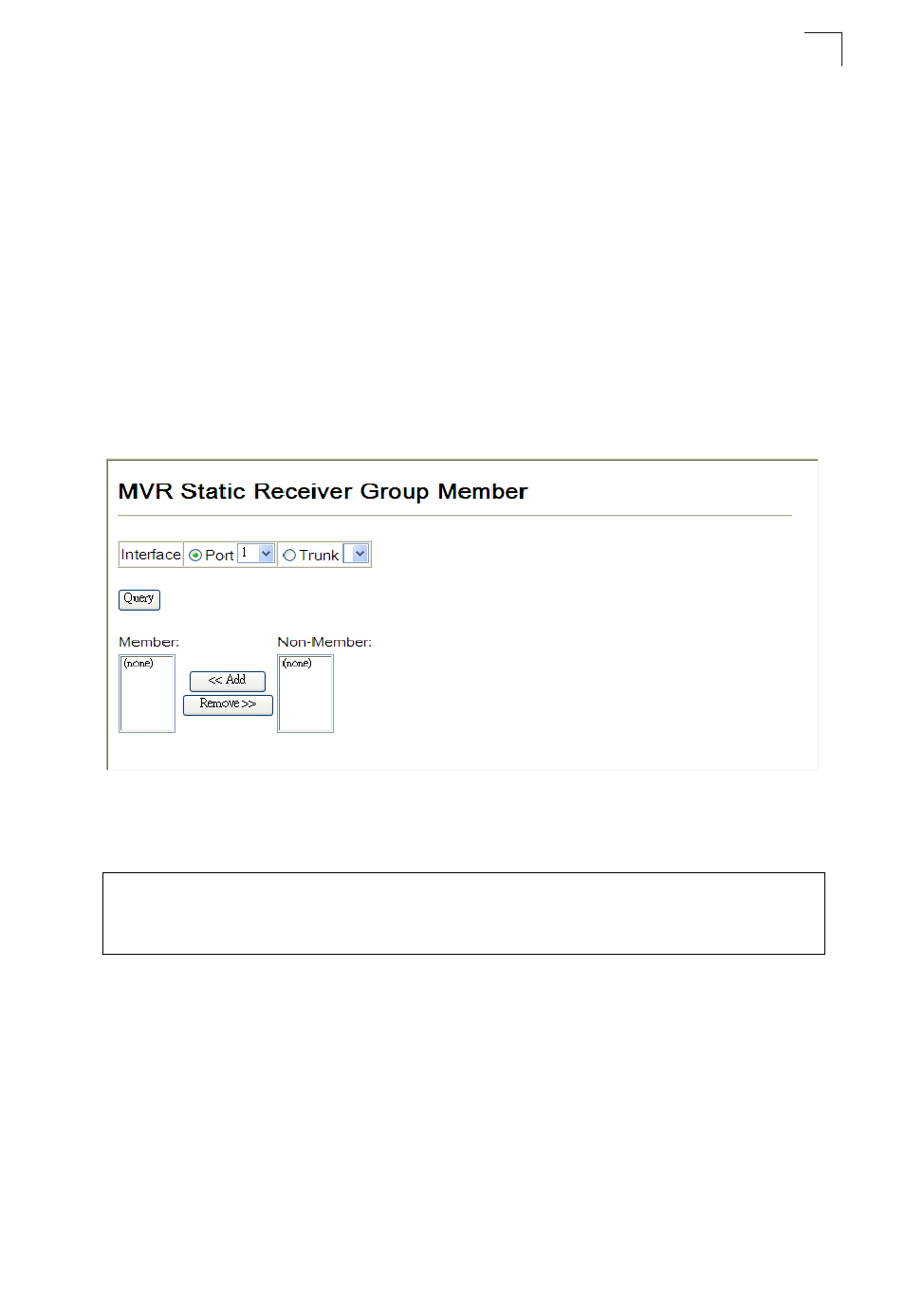

Figure 3-173 Static MVR Receiver Group Member Configuration
CLI – This example sets the type of a port as an MVR receiver, and then statically
assigns an MVR receiver group to the MVR receiver VLAN.
Console(config)#interface ethernet 1/8
Console(config-if)#mvr type receiver
onsole(config-if)#mvr static-reciever-group 225.0.1.6
onsole(config-if)#
