Port Configuration
3-169
3
Web – Click Port, LACP, Port Internal Information. Select a port channel to display
the corresponding information.

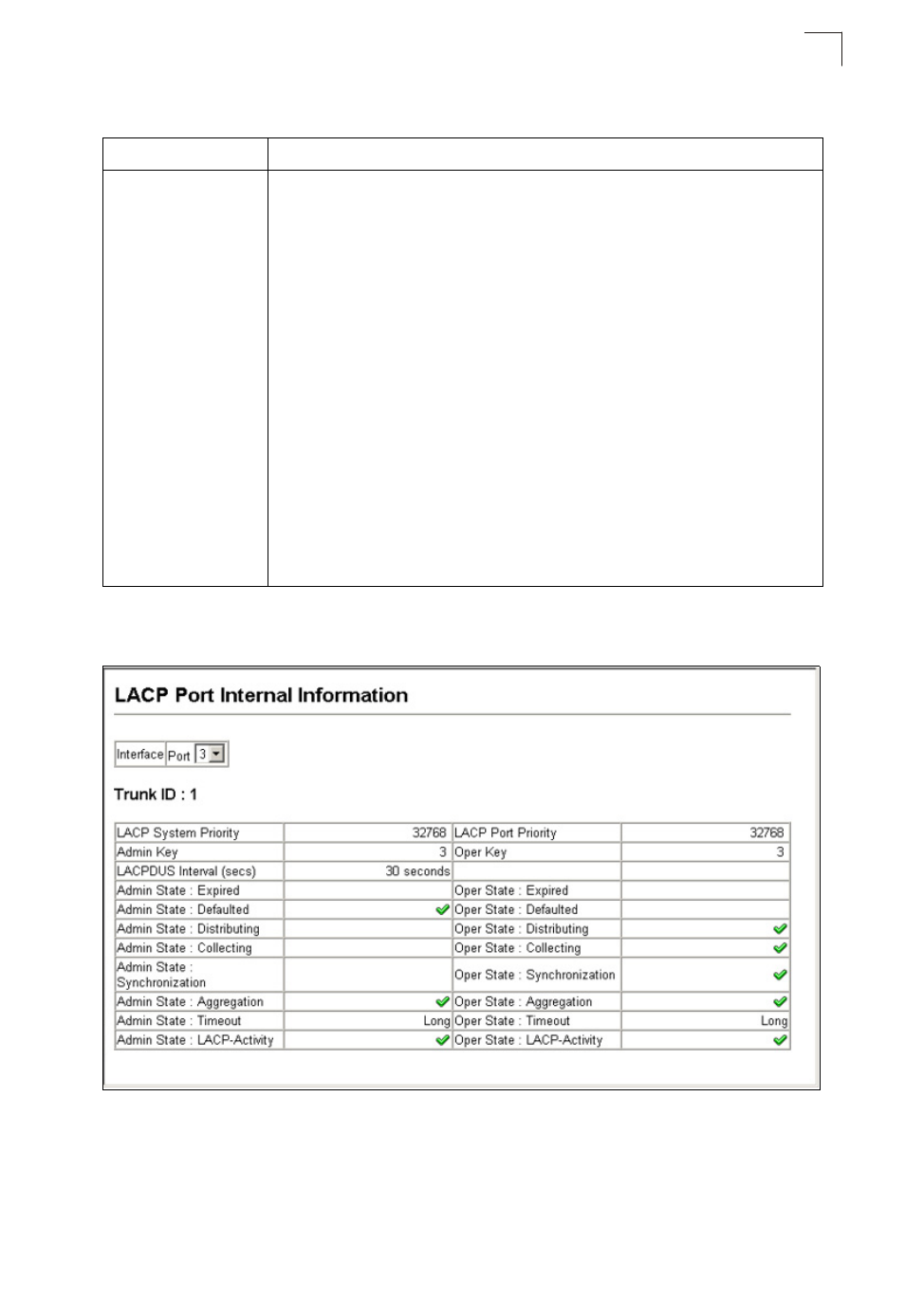

Figure 3-99 LACP - Port Internal Information
Admin State,
Oper State
Administrative or operational values of the actor’s state parameters:
• Expired – The actor’s receive machine is in the expired state;
• Defaulted – The actor’s receive machine is using defaulted operational partner
information, administratively configured for the partner.
• Distributing – If false, distribution of outgoing frames on this link is disabled; i.e.,
distribution is currently disabled and is not expected to be enabled in the absence
of administrative changes or changes in received protocol information.
• Collecting – Collection of incoming frames on this link is enabled; i.e., collection
is currently enabled and is not expected to be disabled in the absence of
administrative changes or changes in received protocol information.
• Synchronization – The System considers this link to be IN_SYNC; i.e., it has
been allocated to the correct Link Aggregation Group, the group has been
associated with a compatible Aggregator, and the identity of the Link Aggregation
Group is consistent with the System ID and operational Key information
transmitted.
• Aggregation – The system considers this link to be aggregatable; i.e., a potential
candidate for aggregation.
• Long timeout – Periodic transmission of LACPDUs uses a slow transmission rate.
• LACP-Activity – Activity control value with regard to this link.
(0: Passive; 1: Active)
Table 3-9 LACP Internal Configuration Information (Continued)
Field Description
