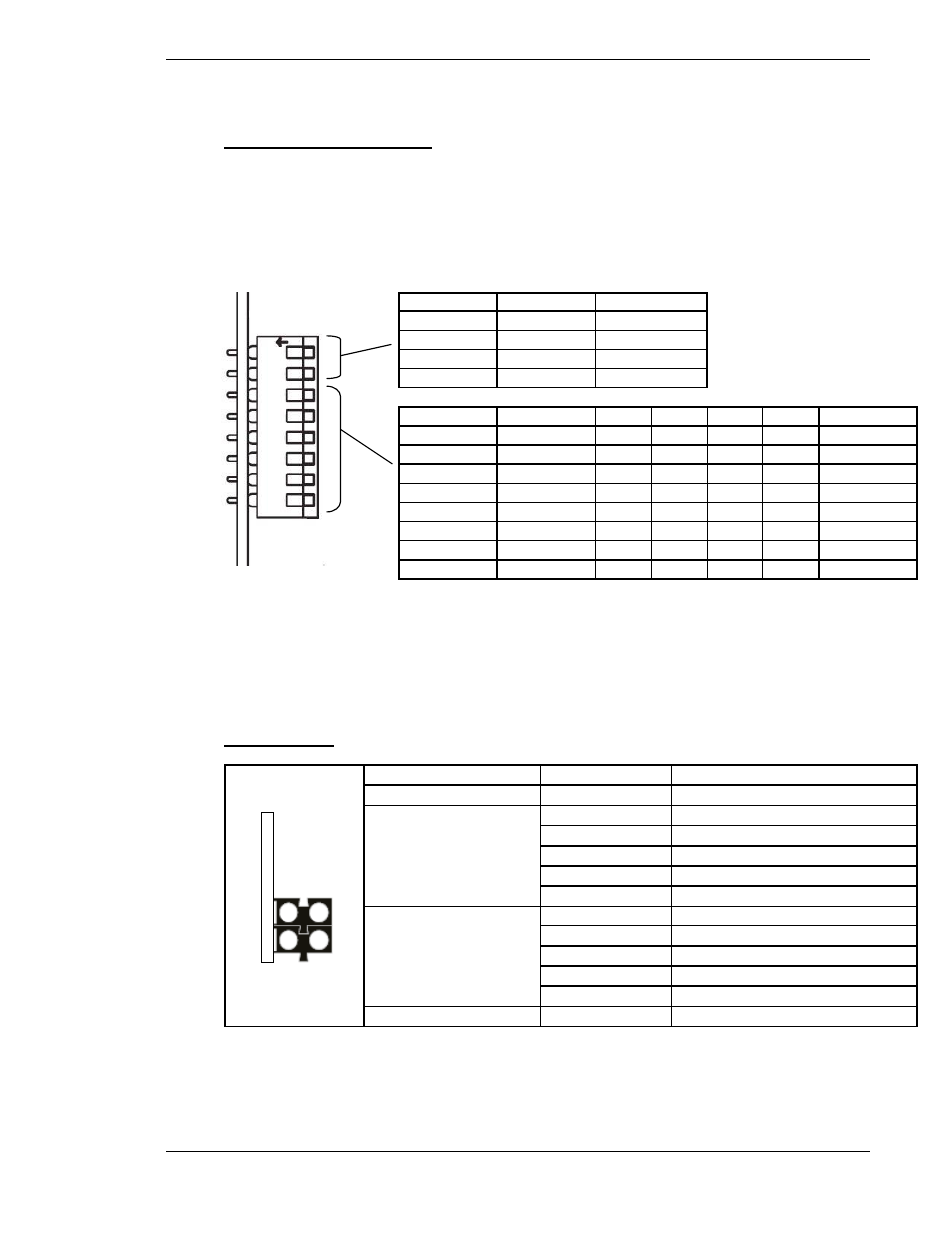

Configuration Switches
On a DeviceNet network, each node must be assigned its own unique Mac ID. The Mac ID is
a value between 0 and 63 used to identify each node. The Mac ID and Baud Rate are set us-
ing the DIP switches on the front of the module.
These switches must be set before power is on and cannot be changed during opera-
tion.
Baud Rate Settings
Baud Rate
SW-1
SW-2
125K
OFF
OFF
250K
OFF
ON
500K
ON
OFF
Reserved
ON
ON
Mac ID Settings
Mac ID
SW-3
(MSB)
SW-4
SW-5
SW-6
SW-7
SW-8
(LSB)
Address 0
OFF
OFF
OFF
OFF
OFF
OFF
Address 1
OFF
OFF
OFF
OFF
OFF
ON
Address 2
OFF
OFF
OFF
OFF
ON
OFF
Address 3
OFF
OFF
OFF
OFF
ON
ON
…
…
…
…
…
…
…
Address 61
ON
ON
ON
ON
OFF
ON
Address 62
ON
ON
ON
ON
ON
OFF
Address 63
ON
ON
ON
ON
ON
ON
Status LEDs
LED
State
Description
1 - Reserved
-
Reserved for future use.
2 - Network Status
Off
Not Powered / Not Online
Green solid
Link OK, Online, Connected
Green flashing
Online, Not connected
Red solid
Critical Link Failure
Red flashing
Connection Timeout
3 - Module Status
Off
No power to device
Green solid
Device operational
Green flashing
Data size bigger than configured
Red solid
Unrecoverable fault
Red flashing
Minor fault
4 - Reserved
-
Reserved for future use.
ON
8
5
4
2
3
7
6
1
1
2
3
4
