Chapter 6: Fastening Instructions
Page 6-16
6.2.3 Angle Monitoring
Angle Monitoring commences upon reaching the preset SNUG TORQUE value, and continues until
completion of the fastening process.
• In Angle Control method, the Angle High and Low Limits are set based upon the engineering
specification for that specific fastener.
ANGLE CONTROL
REJECT TYPE CAUSES
ANGLE HIGH LIMIT Incorrect parameter set-up.
ANGLE LOW LIMIT Reject condition caused by another monitor item reject.

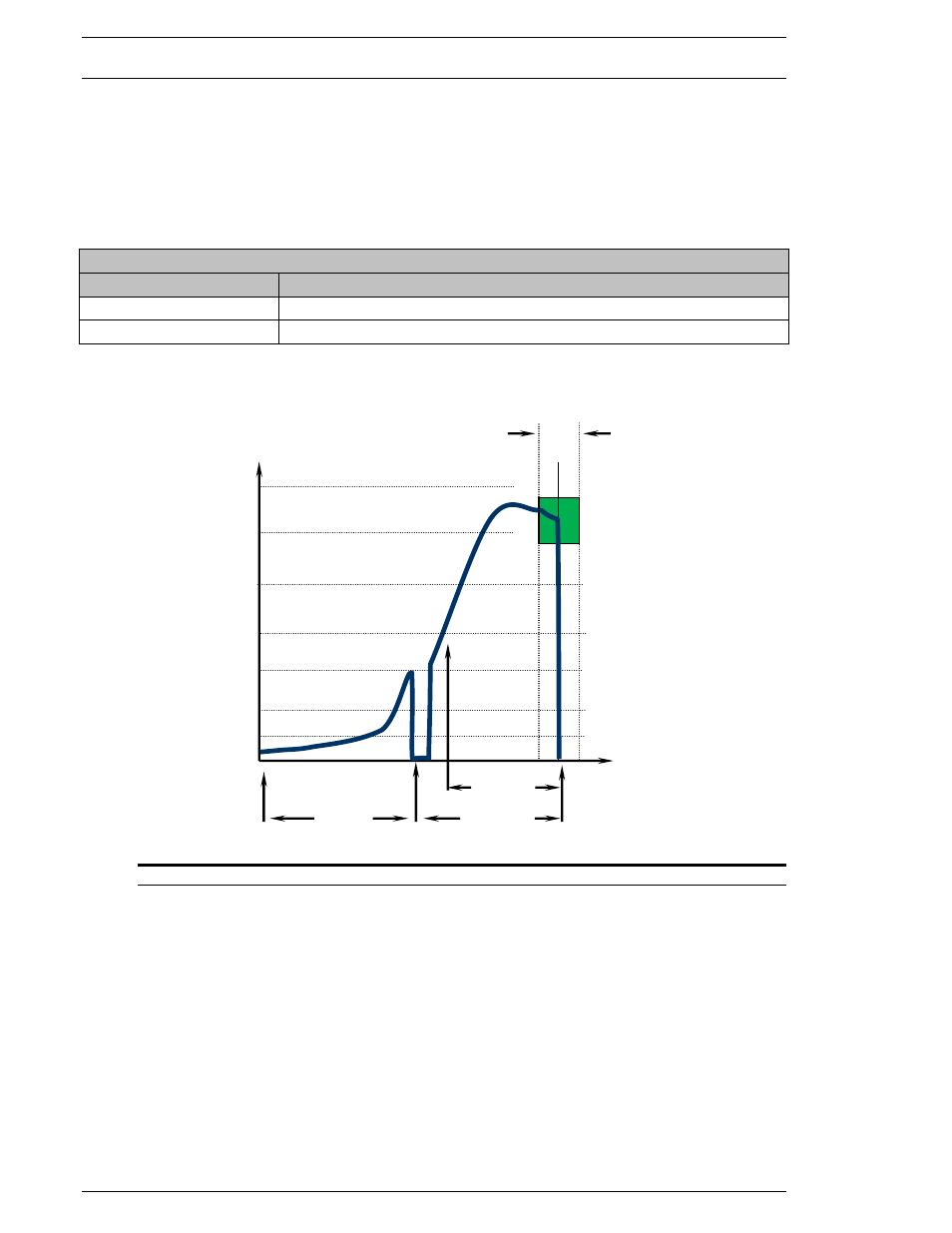

FIG. 6-2-3a Angle Monitoring – Angle Control
Peak Torque High Limit
Peak Torque Low Limit
Torque
Angle/Time
Snug Torque
Threshold Torque
Speed Change Torque
1 st Torque
Crossover Torque
Final Time 1 st Time
Standard
Angle
Angle High Limit Angle Low Limit
Final Torque High Limit
Final Torque Low Limit
