Chapter 4: System Setup and Wiring
Page 4-4
4.3 Unit Arrangement
** See preceding page for actual unit width

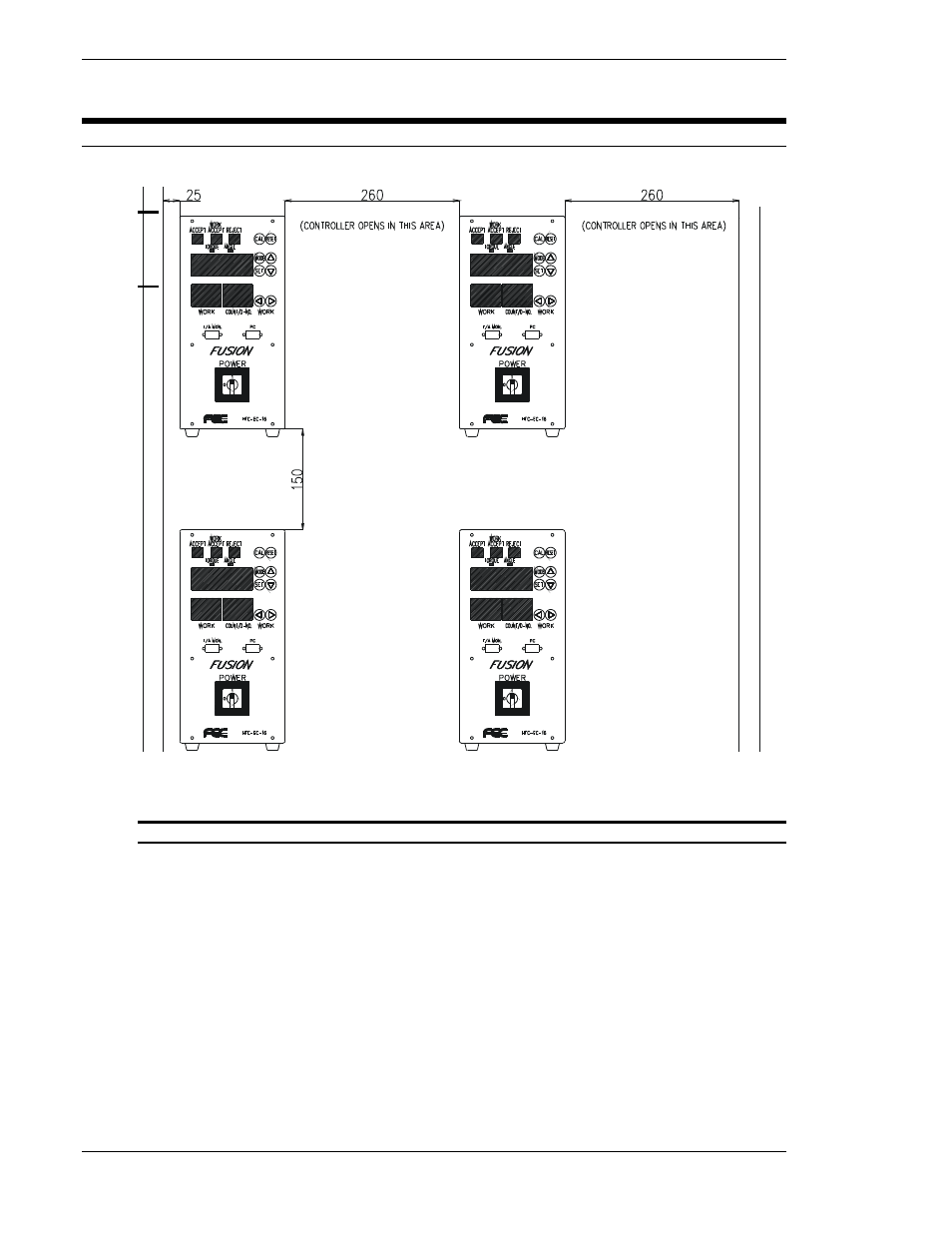

FIG. 4-3 Unit Arrangement
Figure 4-3 provides a reference for the layout of the FUSION System components. The Units
may be mounted in any desired configuration as long as the minimum spacing requirements
are not neglected. Clearance for opening the controller (260mm) and accessing the back
connectors should be maintained as shown.
