Chapter 6: Fastening Instructions
Page 6-12
6.2 Monitoring Functions
The Fusion System is user programmable to select and set the monitoring limits for torque, angle,
time, up to three independent torque rate areas, and special functions describe below.
6.2.1 Peak Torque Monitoring
Torque Monitoring is a continuous process whenever the System is operating. Peak Torque monitor-
ing uses the maximum torque value detected during Fastening.
• In Torque Control method, the Peak Torque High and Low Torque limits are set based upon the
engineering specification for the specific fastener.
TORQUE CONTROL
REJECT TYPE CAUSES
PEAK TORQUE HIGH LIMIT
Re-hit of pre-secured fastener.
Incorrect parameter set-up.
PEAK TORQUE LOW LIMIT Reject condition caused by another monitor item reject.

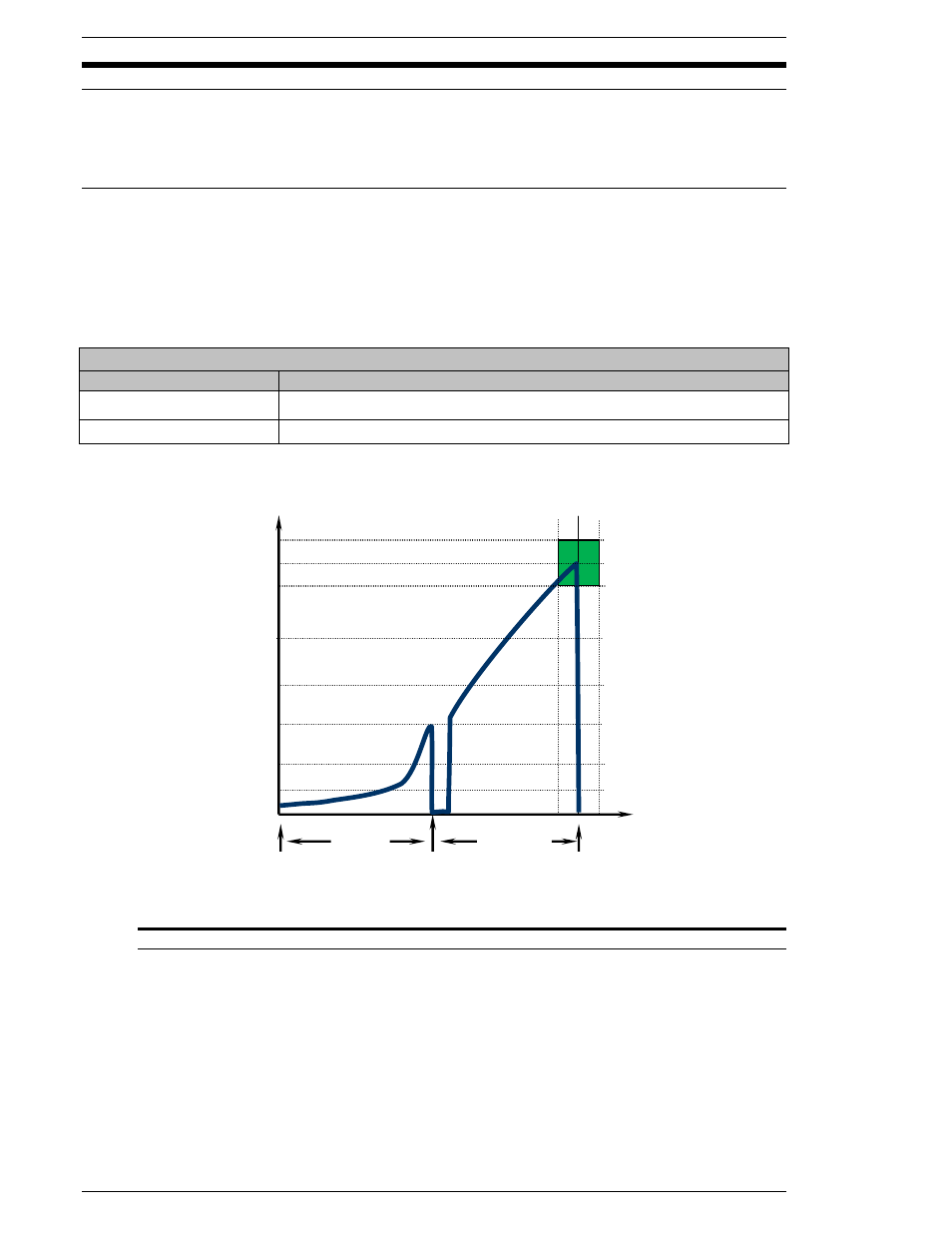

FIG. 6-2-1a Peak Torque Monitor – Torque Control
Snug Torque
1 st Time Final Time
Standard Torque
Threshold Torque
Speed Change Torque
1 st Torque
Crossover Torque
Torque
Angle/Time
Peak Torque High Limit
Peak Torque Low Limit
