FUSION Operations Manual Chapter 7: System Operations (Rev.2)
Page 7-17

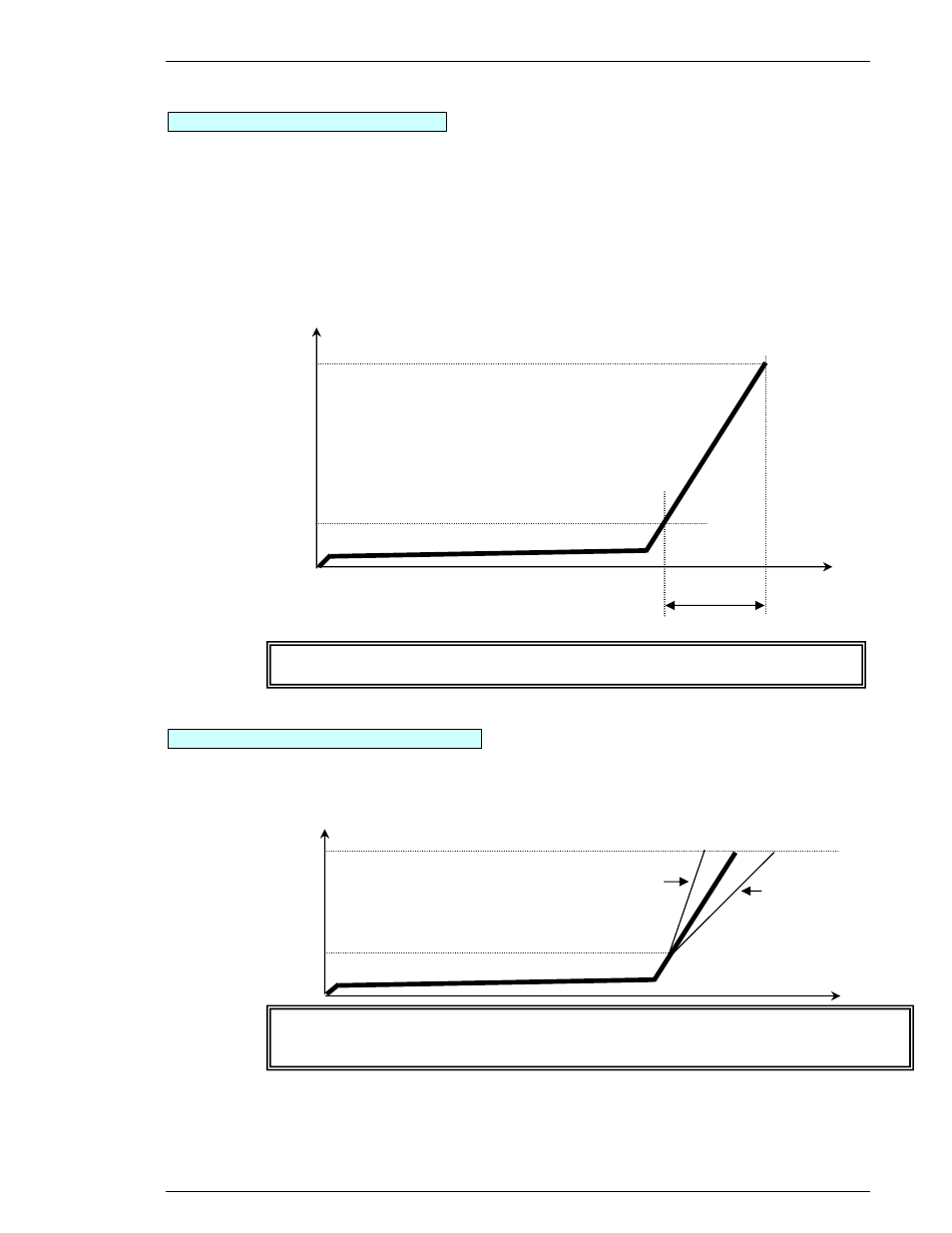

Data No.16 SNUG Torque [Nm, Kgm...]
Setting range: 0 ~ [10: Calibration torque] × 1.0
Snug Torque is only available as a control start point when [00: Fastening Mode] is set
for Angle Control method.
Angle (of rotation) Judgment is conducted from Snug Torque to Fastening end when this
torque value is achieved, for all fastening methods. The Angle when this torque value is
achieved is considered the 0° start point for judgment.
(Example.) When [16: SNUG Torque] is 10Nm, [22: Standard Angle] is 90°.
Data No.17 Threshold Torque [Nm, Kgm...]
Setting range: 0 ~ [10: Calibration torque] × 1.0
Start point for 1 st Torque Rate monitoring
Torque
Angle
90°
Judgment torque
16 SNUG
10Nm
22 Standard Angle
All values related to Angles are referenced from [16:SNUG Torque]
Angle
Torque
30 Rate 1 Low Limit
31 Rate 1 High Limit
15 1ST
17 Threshold
If 1 st Torque Rate monitoring is not required, [17:Threshold Torque] should be set
the same or higher than [10: Calibration Torque]
