4. Program Edit W
indow
88
4.3 Saving All Programs to a File
(1) Saving all programs to a file
You can save programs No. 1 to 64 in the controller (or programs No. 1 to 128 for the X-SEL-P/Q and
PX/QX (with gateway function) compatible with increased memory, or R/S, RX/SX and RXD/SXD) to a
single file.
[1] Click Program from the menu bar, and then select Save to File.
[2] In the program number selection window, click Save All. Then specify a desired file name and folder.

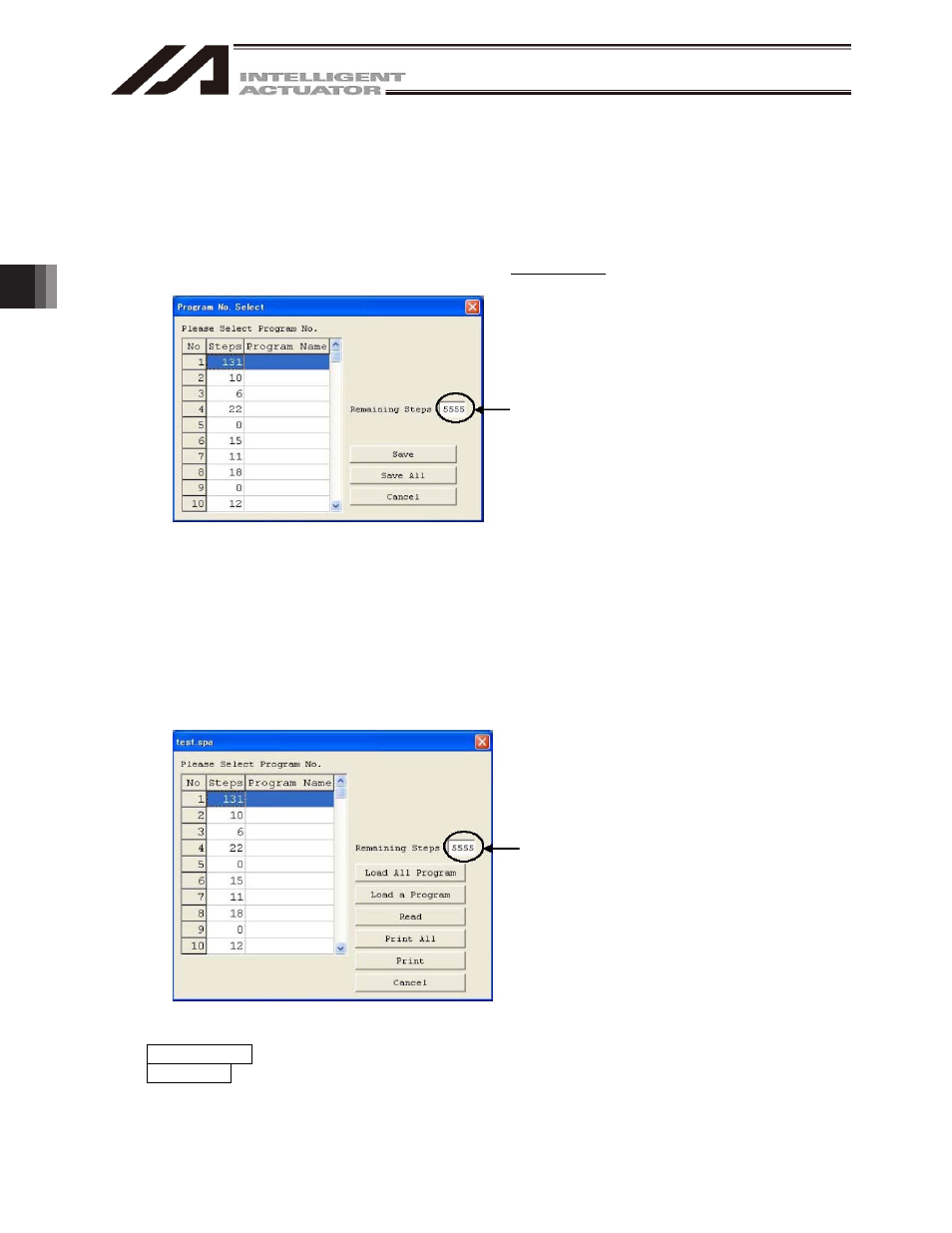

Fig.4.17 Program Save
(2) Opening the all programs file
[1] Click File from the menu bar, and then select Open.
[2] In the file open window, select the file you want to open and then click Open.
[3] The program No. selection window will be displayed. Select a desired program No. to read and click
the Read button.
If you want to transfer all programs to the controller, select Load All Program. If you want to select
programs in the all programs file and transfer them individually, select desired program numbers and
then click Load a Program to transfer the corresponding programs to the controller.
Fig. 4.18 Program Transfer (Online)
Print All button: Print all programs (excluding the program with 0 steps).
Print button: Print only the program selected from the list at the left of the button.
In the case of the SSEL, ASEL, and
PSEL controllers, the number of
remaining steps will be 2000 or less.
In the case of the SSEL, ASEL, and PSEL
controllers, the number of remaining steps
will be 2000 or less
